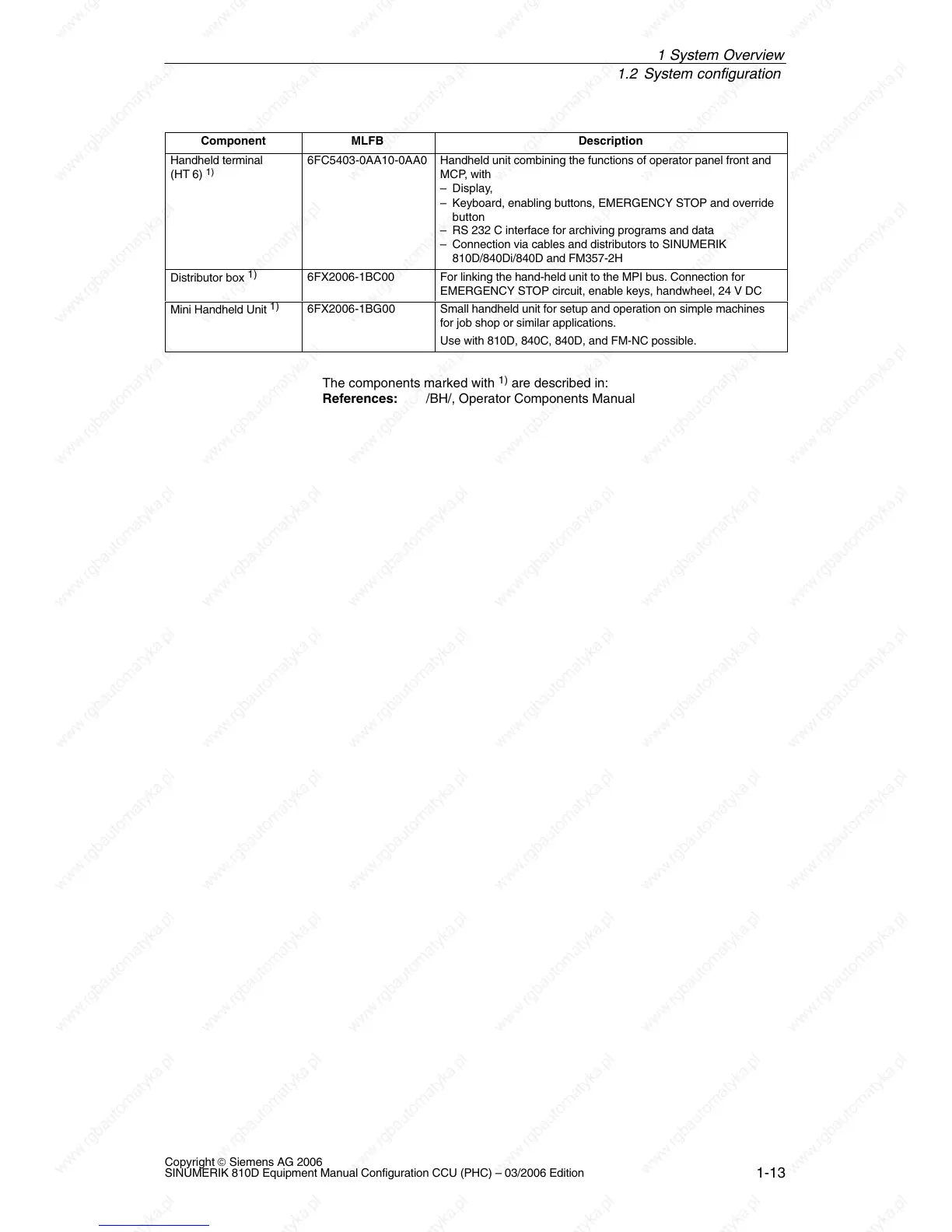

1.2 System configuration
1-13
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
Component DescriptionMLFB
Handheld terminal
(HT 6)
1)
6FC5403-0AA10-0AA0 Handheld unit combining the functions of operator panel front and
MCP, with
– Display,
– Keyboard, enabling buttons, EMERGENCY STOP and override
button
– RS 232 C interface for archiving programs and data
– Connection via cables and distributors to SINUMERIK
810D/840Di/840D and FM357-2H
Distributor box
1)
6FX2006-1BC00 For linking the hand-held unit to the MPI bus. Connection for
EMERGENCY STOP circuit, enable keys, handwheel, 24 V DC
Mini Handheld Unit
1)
6FX2006-1BG00 Small handheld unit for setup and operation on simple machines
for job shop or similar applications.
Use with 810D, 840C, 840D, and FM-NC possible.
The components marked with
1)
are described in:
References: /BH/, Operator Components Manual
1 S
