1.2 System configuration
1-17
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition

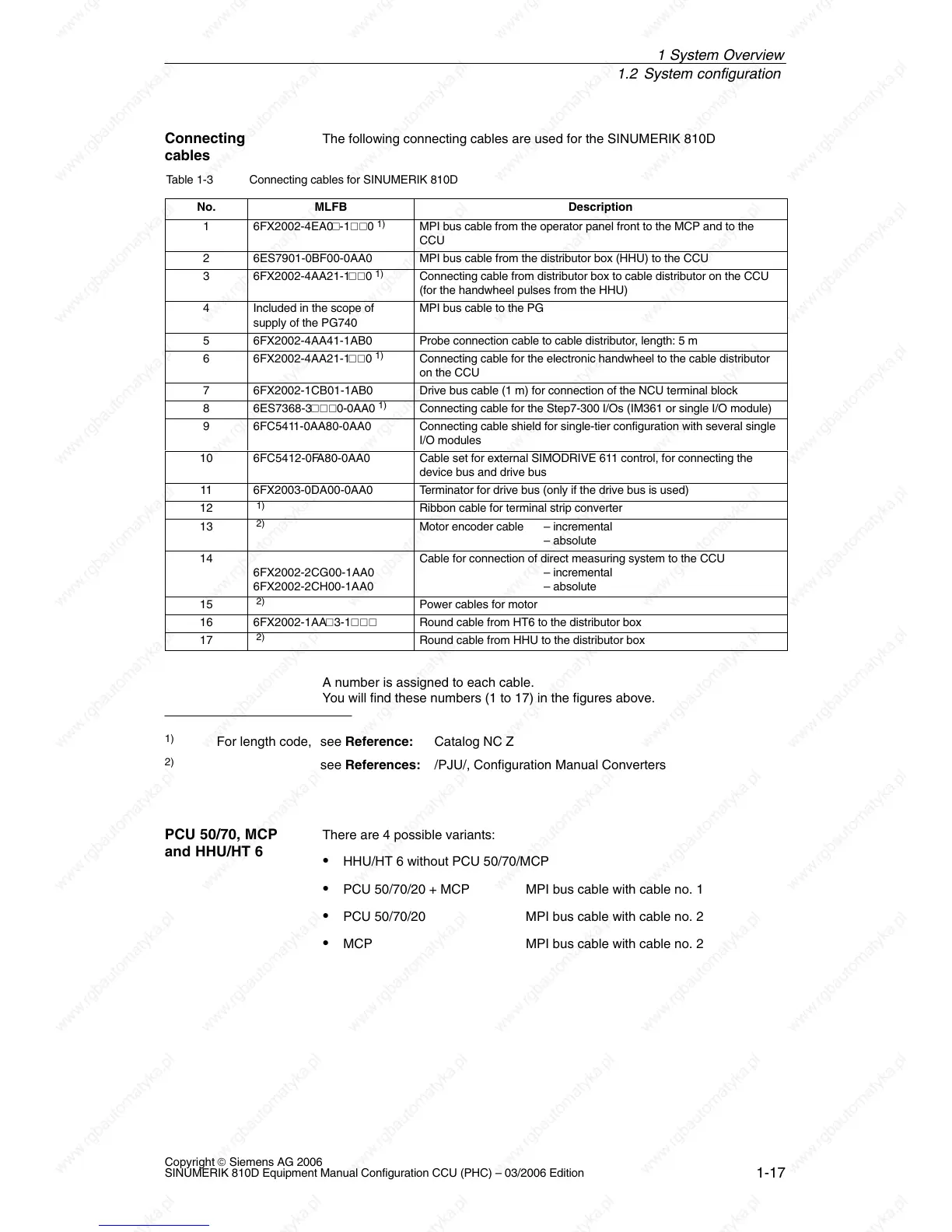

The following connecting cables are used for the SINUMERIK 810D
Table 1-3 Connecting cables for SINUMERIK 810D
No.
MLFB Description
1 6FX2002-4EA0-10
1)
MPI bus cable from the operator panel front to the MCP and to the
CCU
2 6ES7901-0BF00-0AA0 MPI bus cable from the distributor box (HHU) to the CCU
3 6FX2002-4AA21-10
1)
Connecting cable from distributor box to cable distributor on the CCU
(for the handwheel pulses from the HHU)
4 Included in the scope of
supply of the PG740
MPI bus cable to the PG
5 6FX2002-4AA41-1AB0 Probe connection cable to cable distributor, length: 5 m
6 6FX2002-4AA21-10
1)
Connecting cable for the electronic handwheel to the cable distributor
on the CCU
7 6FX2002-1CB01-1AB0 Drive bus cable (1 m) for connection of the NCU terminal block
8 6ES7368-30-0AA0
1)
Connecting cable for the Step7-300 I/Os (IM361 or single I/O module)
9 6FC5411-0AA80-0AA0 Connecting cable shield for single-tier configuration with several single
I/O modules
10 6FC5412-0FA80-0AA0 Cable set for external SIMODRIVE 611 control, for connecting the
device bus and drive bus
11 6FX2003-0DA00-0AA0 Terminator for drive bus (only if the drive bus is used)
12
1)
Ribbon cable for terminal strip converter
13
2)
Motor encoder cable – incremental
– absolute
14
6FX2002-2CG00-1AA0
6FX2002-2CH00-1AA0
Cable for connection of direct measuring system to the CCU
– incremental
– absolute
15
2)
Power cables for motor
16 6FX2002-1AA3-1 Round cable from HT6 to the distributor box
17
2)
Round cable from HHU to the distributor box
A number is assigned to each cable.
You will find these numbers (1 to 17) in the figures above.
1)
For length code, see Reference: Catalog NC Z
2)
see References: /PJU/, Configuration Manual Converters
There are 4 possible variants:
 HHU/HT 6 without PCU 50/70/MCP
 PCU 50/70/20 + MCP MPI bus cable with cable no. 1
 PCU 50/70/20 MPI bus cable with cable no. 2
 MCP MPI bus cable with cable no. 2
Connecting
cables
PCU 50/70, MCP
and HHU/HT 6
1 S
y
stem Overview
