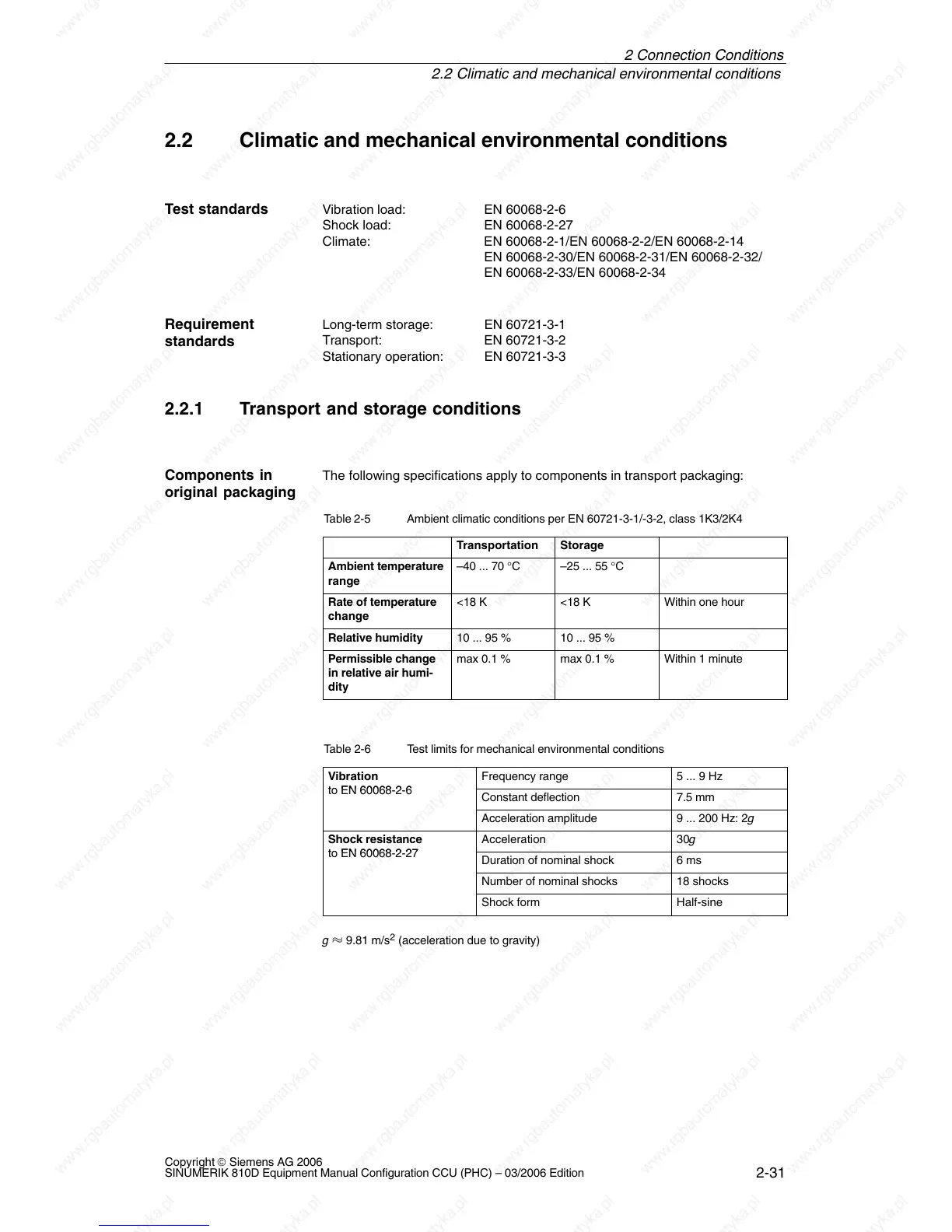

2.2 Climatic and mechanical environmental conditions
2-31
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
2.2 Climatic and mechanical environmental conditions
Vibration load: EN 60068-2-6
Shock load: EN 60068-2-27
Climate: EN 60068-2-1/EN 60068-2-2/EN 60068-2-14
EN 60068-2-30/EN 60068-2-31/EN 60068-2-32/
EN 60068-2-33/EN 60068-2-34
Long-term storage: EN 60721-3-1
Transport: EN 60721-3-2
Stationary operation: EN 60721-3-3
2.2.1 Transport and storage conditions
The following specifications apply to components in transport packaging:
Table 2-5 Ambient climatic conditions per EN 60721-3-1/-3-2, class 1K3/2K4
Transportation Storage
Ambient temperature
range
–40 ... 70 °C –25 ... 55 °C
Rate of temperature
change
<18 K <18 K Within one hour
Relative humidity 10 ... 95 % 10 ... 95 %
Permissible change
in relative air humi-
dity
max 0.1 % max 0.1 % Within 1 minute
Table 2-6 Test limits for mechanical environmental conditions
Vibration
to EN 60068 2 6
Frequency range 5 ... 9 Hz
to EN 60068-2-6
Constant deflection 7.5 mm
Acceleration amplitude 9 ... 200 Hz: 2g
Shock resistance
to EN 60068 2 27
Acceleration 30g
to EN 60068-2-27
Duration of nominal shock 6 ms
Number of nominal shocks 18 shocks
Shock form Half-sine
g  9.81 m/s
2
(acceleration due to gravity)
Test standards
Requirement
standards
Components in
original packaging
2
Connection Conditions
