3.2 Assembly of the SINUMERIK 810D
3-39
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
SIMODRIVE
SIEMENS
Axis expansion
plug-in unit
Axis expansion plug-in unit, left
Power supply
(I/R or OI)
LDC
LDC810D
(CCU3)

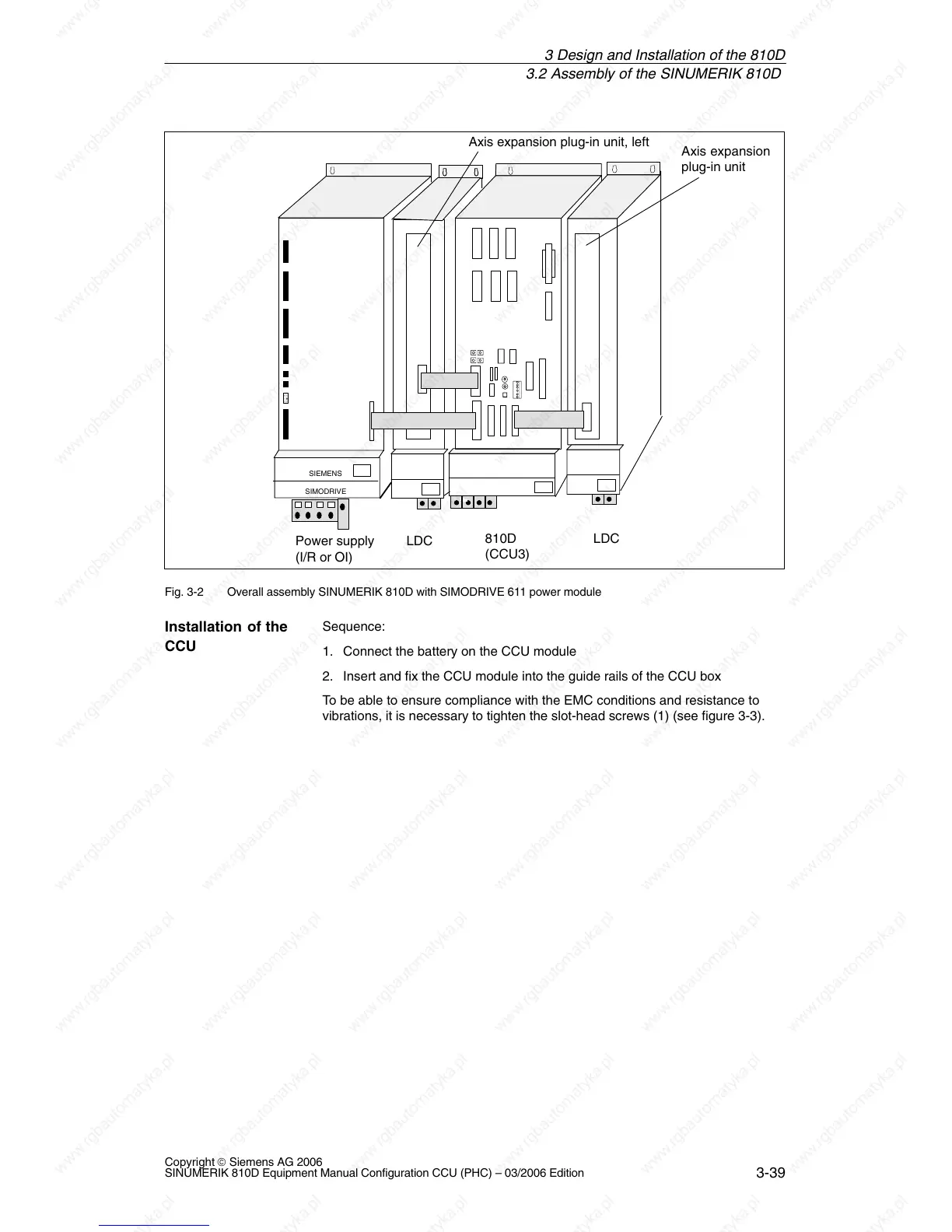

Fig. 3-2 Overall assembly SINUMERIK 810D with SIMODRIVE 611 power module
Sequence:
1. Connect the battery on the CCU module
2. Insert and fix the CCU module into the guide rails of the CCU box
To be able to ensure compliance with the EMC conditions and resistance to
vibrations, it is necessary to tighten the slot-head screws (1) (see figure 3-3).
Installation of the
CCU
3 Desi
