4.2 Interfaces

4-51

SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition

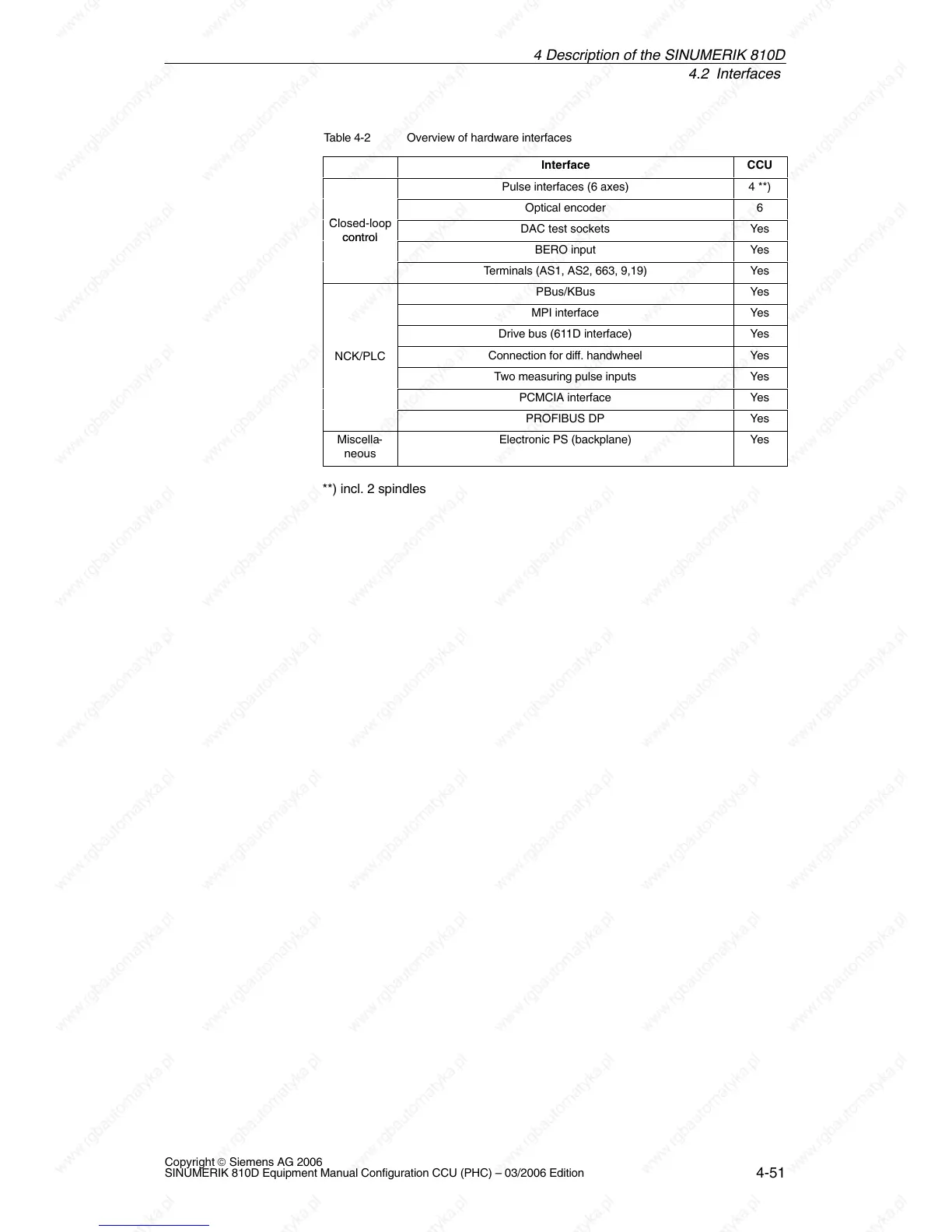

Table 4-2 Overview of hardware interfaces

Interface CCU

Pulse interfaces (6 axes) 4 **)

Cl d l

Optical encoder 6

Closed-loop

control

DAC test sockets Yes

control

BERO input Yes

Terminals (AS1, AS2, 663, 9,19) Yes

PBus/KBus Yes

MPI interface Yes

Drive bus (611D interface) Yes

NCK/PLC

Connection for diff. handwheel Yes

Two measuring pulse inputs Yes

PCMCIA interface Yes

PROFIBUS DP Yes

Miscella-

neous

Electronic PS (backplane) Yes

**) incl. 2 spindles

4 Descri

tion of the SINUMERIK 810D
