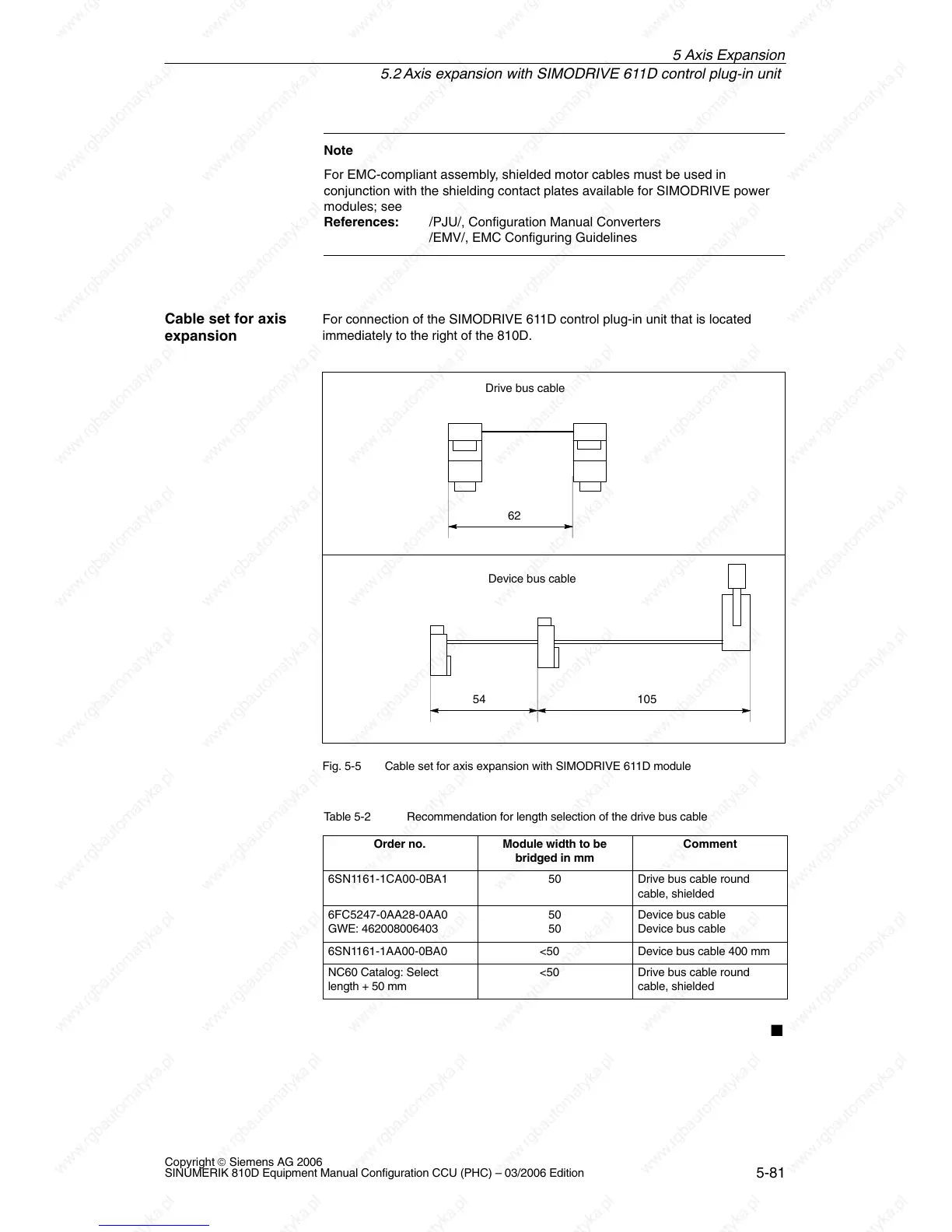

5.2 Axis expansion with SIMODRIVE 611D control plug-in unit
5-81
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
Note
For EMC-compliant assembly, shielded motor cables must be used in
conjunction with the shielding contact plates available for SIMODRIVE power
modules; see
References: /PJU/, Configuration Manual Converters
/EMV/, EMC Configuring Guidelines
For connection of the SIMODRIVE 611D control plug-in unit that is located
immediately to the right of the 810D.
Drive bus cable
Device bus cable
54 105
62
Fig. 5-5 Cable set for axis expansion with SIMODRIVE 611D module
Table 5-2 Recommendation for length selection of the drive bus cable
Order no.
Module width to be
bridged in mm
Comment
6SN1161-1CA00-0BA1 50 Drive bus cable round
cable, shielded
6FC5247-0AA28-0AA0 50 Device bus cable
GWE: 462008006403 50 Device bus cable
6SN1161-1AA00-0BA0 <50 Device bus cable 400 mm
NC60 Catalog: Select
length + 50 mm
<50 Drive bus cable round
cable, shielded
Cable set for axis
expansion
5 Axis Ex
