6-83
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
I/O Modules
6.1 Single I/O module
The single I/O module has 64 inputs and 32 short-circuit-proof outputs (isola-
ted). Each output can be loaded with 0.5 A. The coincidence factor is 75 %.
Up to three single I/O modules can be attached to the SINUMERIK 810D;
combinations with SIMATIC S7-300 chains are possible.
The single I/O module (connector X3 IN) is connected to the SINUMERIK 810D
(connector X111). The max. cable length is 10 m. Two cable variants are availa-
ble for the connection from one single I/O module to the next:
For single mounting: 6ES7368-30-0AA0
For single-tier configuration with several single I/O modules:
6FC5411-0AA80-0AA0, length 150 mm.
810D
X111
IM 361 or second single I/O module
X405
32 I
X405
32 I
X402
32 O
Terminal strip converter
Terminal strip converter
Terminal strip converter
6ES7368-30-0AA0
6FC5411-0AA80-0AA0, length 150mm
6ES7368-30-0AA0
Ribbon cable
Ribbon cable
Ribbon cable
X3 IN
X3 OUT
SINUMERIK 810D
6ES7368-30-0AA0
Single
I/O
module
Connecting cable shielded for single-tier configuration
only 6FC5411-0AA80-0AA0, length 150 mm
Single
I/O
module
Single
I/O
module
Single
I/O
module

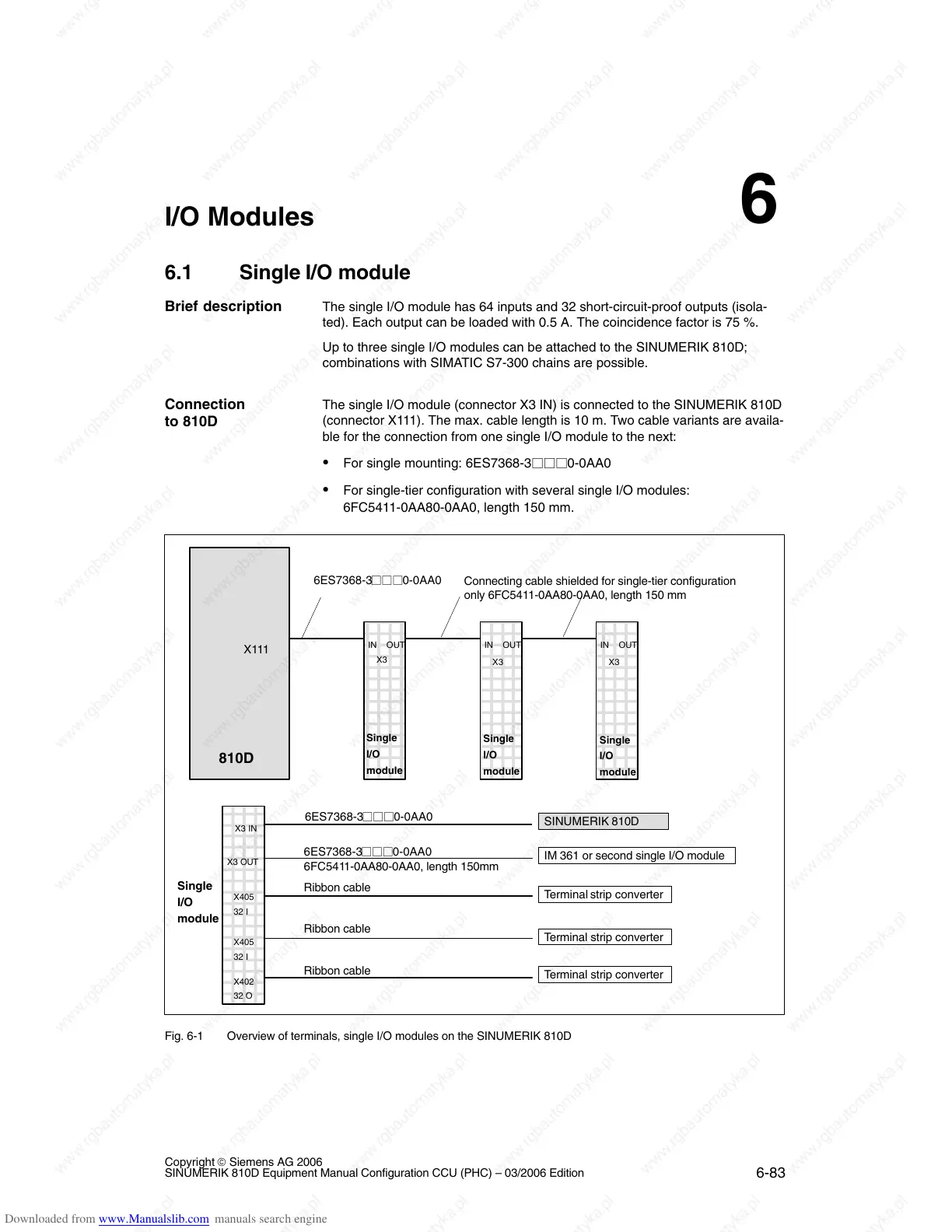

Fig. 6-1 Overview of terminals, single I/O modules on the SINUMERIK 810D
Brief description
Connection
to 810D
6
