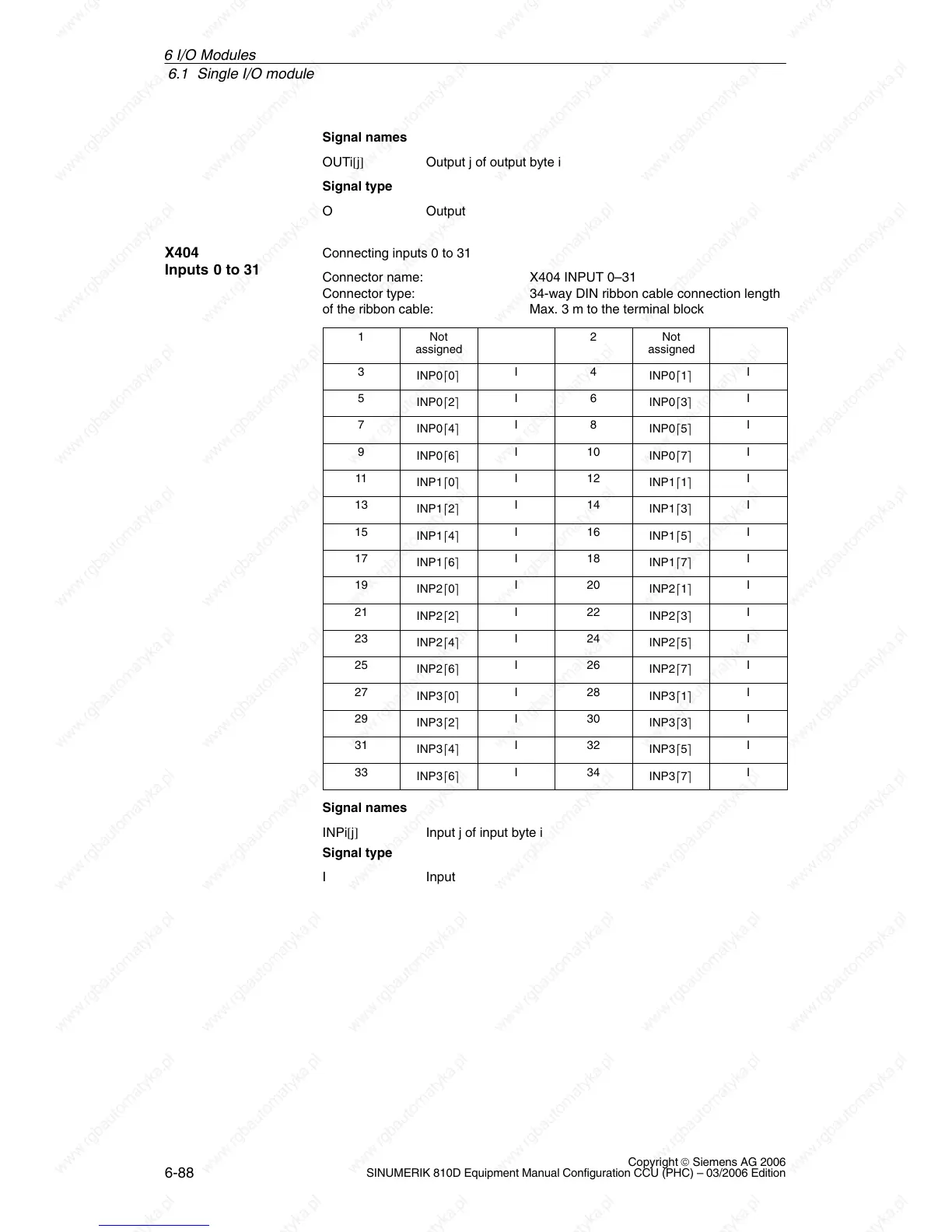

6.1 Single I/O module
6-88
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
Signal names
OUTi[j] Output j of output byte i
Signal type
O Output
Connecting inputs 0 to 31
Connector name: X404 INPUT 0–31
Connector type: 34-way DIN ribbon cable connection length
of the ribbon cable: Max. 3 m to the terminal block
1 Not
assigned
2 Not
assigned
3
INP0ȱ0ȳ
I 4
INP0ȱ1ȳ
I
5
INP0ȱ2ȳ
I 6
INP0ȱ3ȳ
I
7
INP0ȱ4ȳ
I 8
INP0ȱ5ȳ
I
9
INP0ȱ6ȳ
I 10
INP0ȱ7ȳ
I
11
INP1ȱ0ȳ
I 12
INP1ȱ1ȳ
I
13
INP1ȱ2ȳ
I 14
INP1ȱ3ȳ
I
15
INP1ȱ4ȳ
I 16
INP1ȱ5ȳ
I
17
INP1ȱ6ȳ
I 18
INP1ȱ7ȳ
I
19
INP2ȱ0ȳ
I 20
INP2ȱ1ȳ
I
21
INP2ȱ2ȳ
I 22
INP2ȱ3ȳ
I
23
INP2ȱ4ȳ
I 24
INP2ȱ5ȳ
I
25
INP2ȱ6ȳ
I 26
INP2ȱ7ȳ
I
27
INP3ȱ0ȳ
I 28
INP3ȱ1ȳ
I
29
INP3ȱ2ȳ
I 30
INP3ȱ3ȳ
I
31
INP3ȱ4ȳ
I 32
INP3ȱ5ȳ
I
33
INP3ȱ6ȳ
I 34
INP3ȱ7ȳ
I
Signal names
INPi[j] Input j of input byte i
Signal type
I Input
X404
Inputs 0 to 31
6 I/O Modules
