Design and Functional Principle
17
SIPAR T PS2 Manual
A5E00074631--06
2.2 Name plate design
(7)(1)
(3)
(2)
(5)
(6)
(4)
(8)
(1) Order number (5) Serial number
(2) Manufacturer (6) Place of manufacture
(3) Product name (7) Protection class
(4) Technical data (8) Observe manual

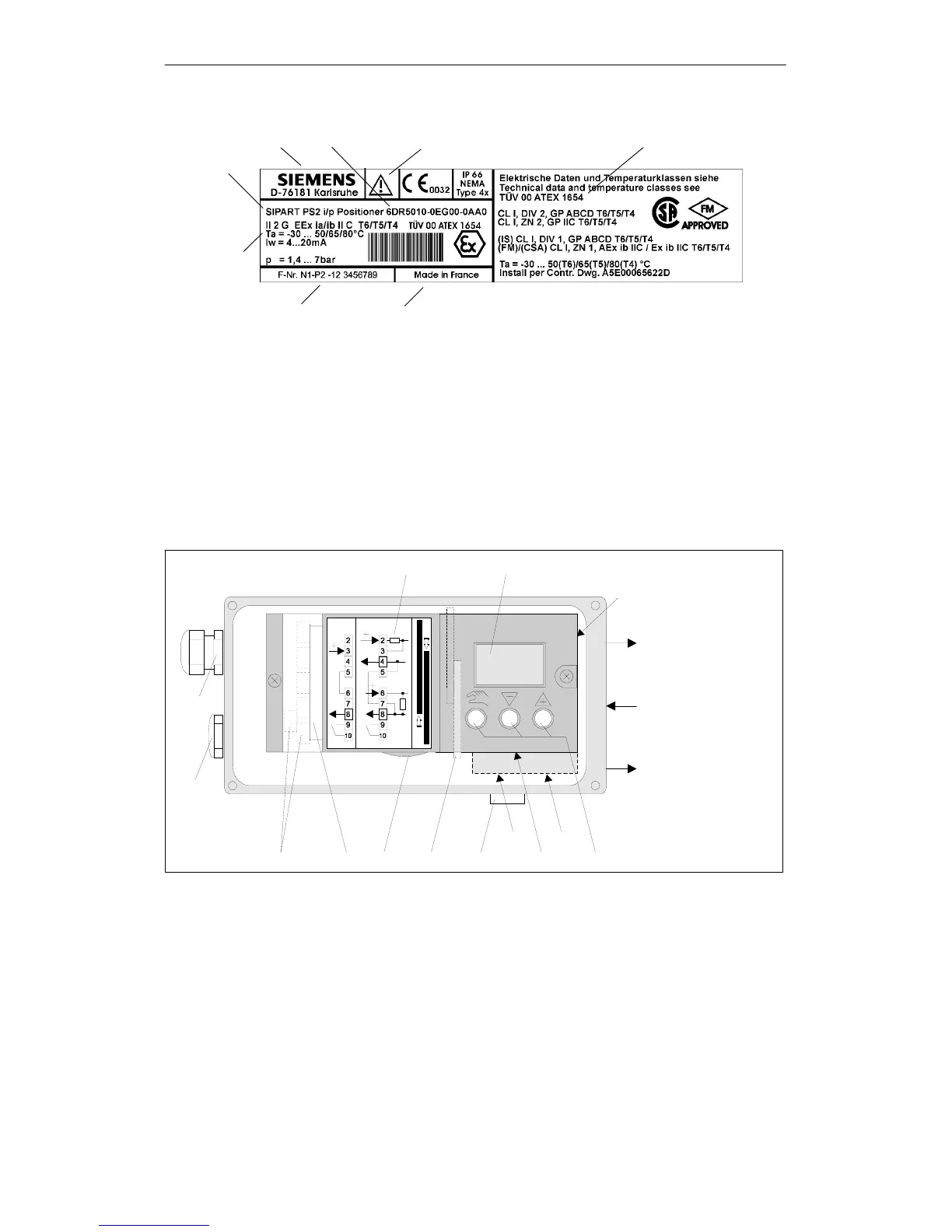

Figure 2-1 Design name plate, example with protection class EEx ia/ib
2.3 Instrument Components
O
90
O
33
314
90°
33°
4
2
1
15
56
6.1 6.2
7891011
12
13
4...20 mA
0/4...20 mA
3/4 W2W
DI1
1 Input: Supply air 7 Silencer
2 Output: Actuating pressure Y1 8 Transmission ratio selector
3 Display 9 Adjusting wheel for frichtion clutch
4 Output: Actuating pressure Y2
*)
10 Terminals options modules
5 Operating keys 12 Dummy plug
6 Restrictor 13 Screw-type cable gland
6.1 Restrictor Y1 14 Terminal plate on cover
6.2 Restrictor Y2
*)
15 Purging air switch
*)
in double-acting actuators
Figure 2-2 View of the positioner in normal version (cover open)
