Preparing for Operation
73
SIPAR T PS2 Manual
A5E00074631--06
3.6.1 Preparations for lin ear actuators
1. Assemble the positioner with the appropriate mounting kit
(see chapter 3.3.3, page 39).
.
NOTE
Particularly important is the position of the transmission ratio selec-
tor (8, figure 2-2, page 17) in the positioner:
Stroke Lever Position of the transmission ratio
selector
5to20mm short 33° (i.e. down)
25 to 35 mm short 90° (i.e. up)
40 to 130 mm long 90° (i.e. up)
2. Push the carrier pin (4, figure 3-7 (page 51) 2) onto the lever
(6, figure 3-7, 2) to the scale position corresponding to the rated
stroke or next highest position and screw the carrier pin tight with
the nut (18, figure 3-7, 2).
3. Connect the actuator and the positioner with the pneumatic lines
and supply pneumatic power to the positioner (figure 2-4 and 2-5,
page 19).
4. Connect a suitable current or voltage source (see figure 3-13,
page 59 and figure 3-20, page 63).

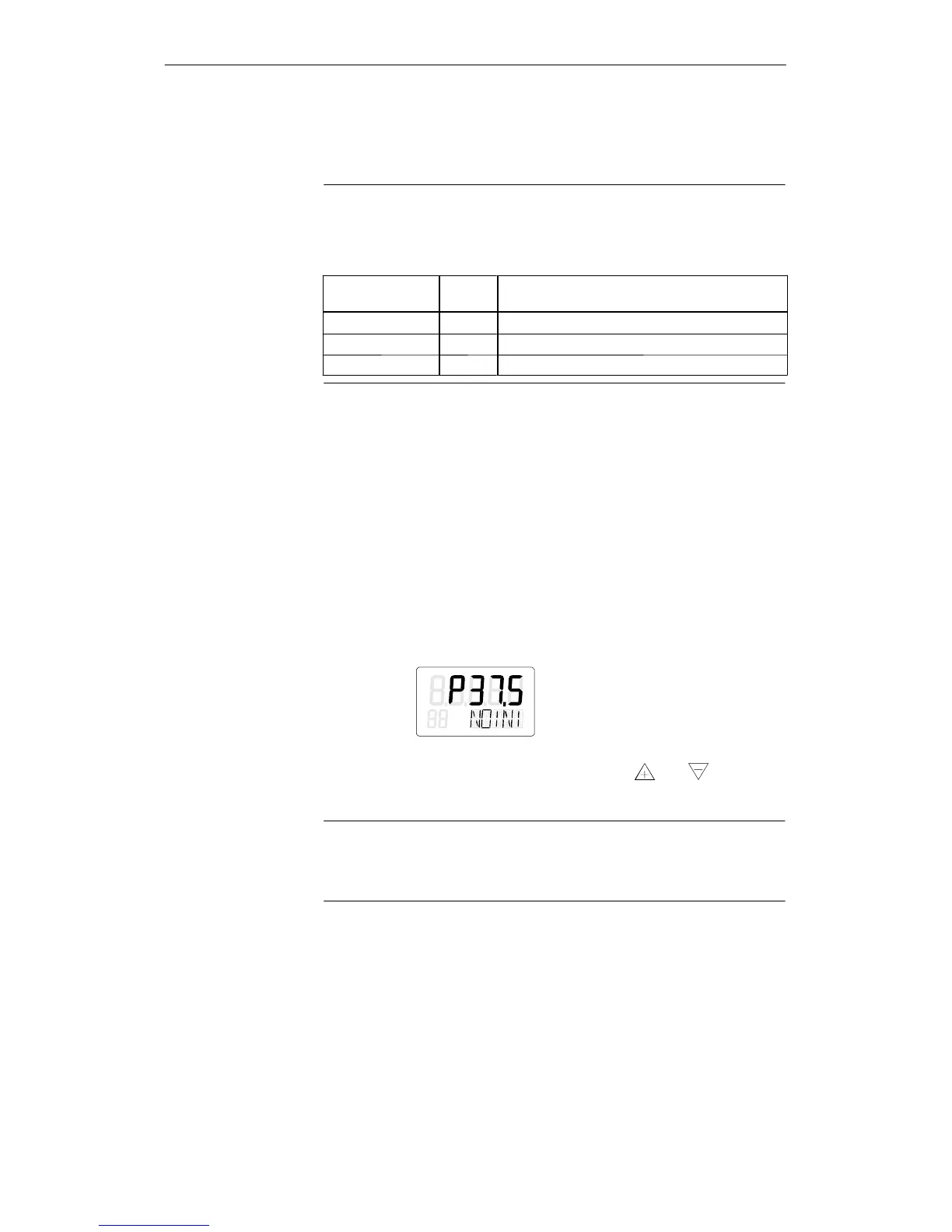

5. The positioner is now in the operating mode “P-manual opera-
tion” The current potentiometer voltage (P) is displayed in percent
in the top line of the display, e.g.: “P12.3”, and “NOINI” flashes in
the bottom line:
6. Check the free running of the mechanics in the whole actuating
range by moving the actuator with the keys
and and driving
to the respective end position.
.
NOTE
You can move the actuator quickly by pressing the other direction key
additionally whilst keeping the direction key selected first pressed.
7. Now move the actuator to the horizontal position of the lever.
A value between P48.0 and P52.0 should be visible in the display.
If this is not the case, adjust the friction clutch (8, figure 2-11, page
28 or in frameproof enclosure 8, figure 2-12, page 31) until “P50.0”
is displayed with a horizontal lever. The more accurately you hit
this value, the more exactly the positioner can determine the path.
