Preparing for Operation
57
SIPAR T PS2 Manual
A5E00074631--06
M6
4
35
Schwenkantrieb
Befestigungsebene
Stellungsregler
F05-Lkr.- 50
+0,1
fastening level
positioner
part-turn actuator

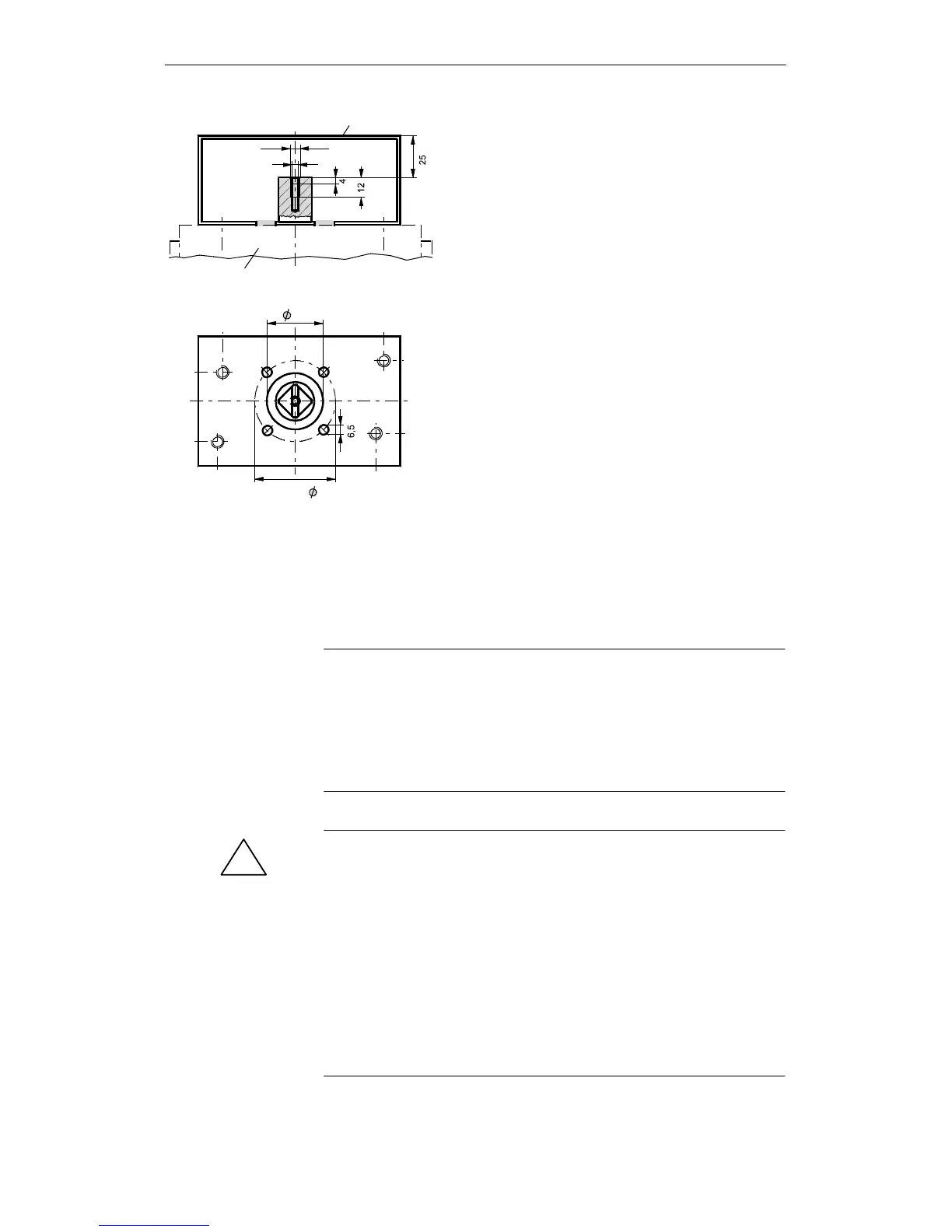

Figure 3-11 Attachment of part-turn actuator, mounting console (scope of delivery actuator manufacturer),
dimensions
3.4 Electrical Connection
.
NOTE
Any necessary options modules must be installed before electrical
connection (see chapter 2.7, page 27).
N.B.: The transmission ratio selector can only be set when the
positioner is open. Therefore check this setting before closing the
controller.
!
W ARNING
The specifications of the examination certificate valid in your country
must be observed.
Electrical connection in hazardous areas
The national directives and laws which apply in your country for haz-
ardous areas, must be followed for electrical installations. In Germany
these are, for example:
-- Working reliability regulations
-- Regulations for installing electrical equipment in hazardous areas,
DIN EN 60079-14 (in the past VDE 0165, T1).
-- The EC type examination certificates
