Faster results with application templates
A common function library provides all protection, automation, monitoring, and auxiliary functions for the
SIPROTEC 5 Compact devices. The same functions are truly the same for all devices. Once established, configu-
rations can be transferred from device to device. This results in substantially reduced engineering effort.
Predefined application templates are available in DIGSI 5 for every device type. These contain basic configura-
tions, required functions, and default settings. In addition, you can save a device as a master template in a
user-defined library and reuse it as a template for your typical applications. This saves time and money. Saving
user-defined application templates is possible.
Figure 1-2 shows an example of a line feeder in a system configuration in which the functions in the applica-
tion template are combined into function groups (FGs). The function groups correspond to the primary
components (protected objects: feeder "V-I-3ph", motor, switching devices, circuit breakers) thereby simpli-
fying the direct reference to the actual system.

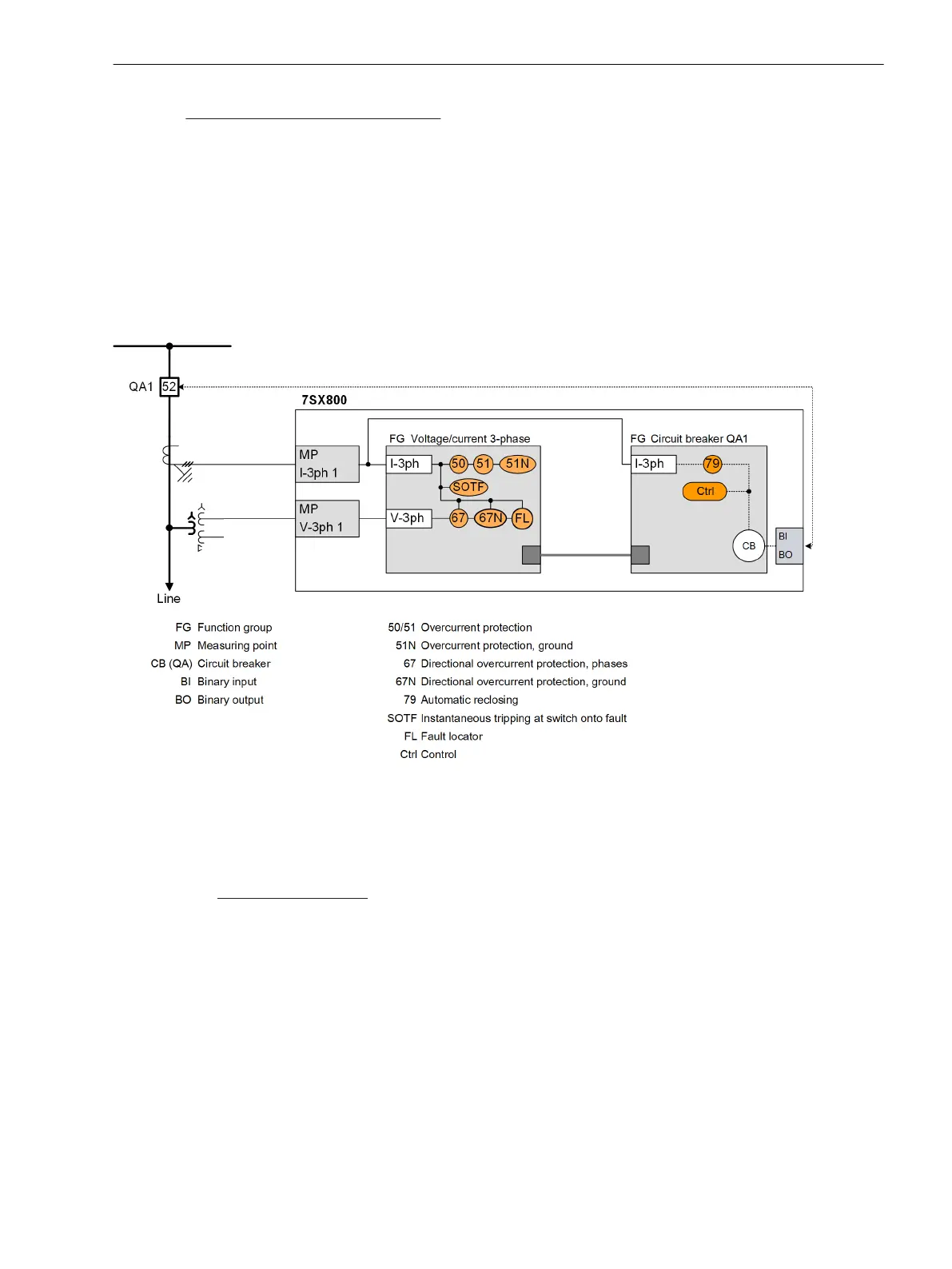

[dw_7SX800_ SimpleFeeder, 1, en_US]
Figure 1-2
Feeder Protection
SIPROTEC 5 Compact Hardware
SIPROTEC 5 Compact hardware provides the entire experience of Siemens for digital protection devices.
•
Durability and reliability
– Robust housing
– Excellent EMC shielding in compliance with the most recent standards and IEC 61000-4
– Expanded temperature range: -25 °C to +70 °C
