Siemens SIPROTEC 5 Compact - Page 64

Table 6-1 Cut-Out Widths
Width of the Assembly Opening in mm (in Inches)
1/6 device
71
+2
mm (2.8
+0.08
)
[dw_surface_mounting_in_SIP5Comp, 3, en_US]

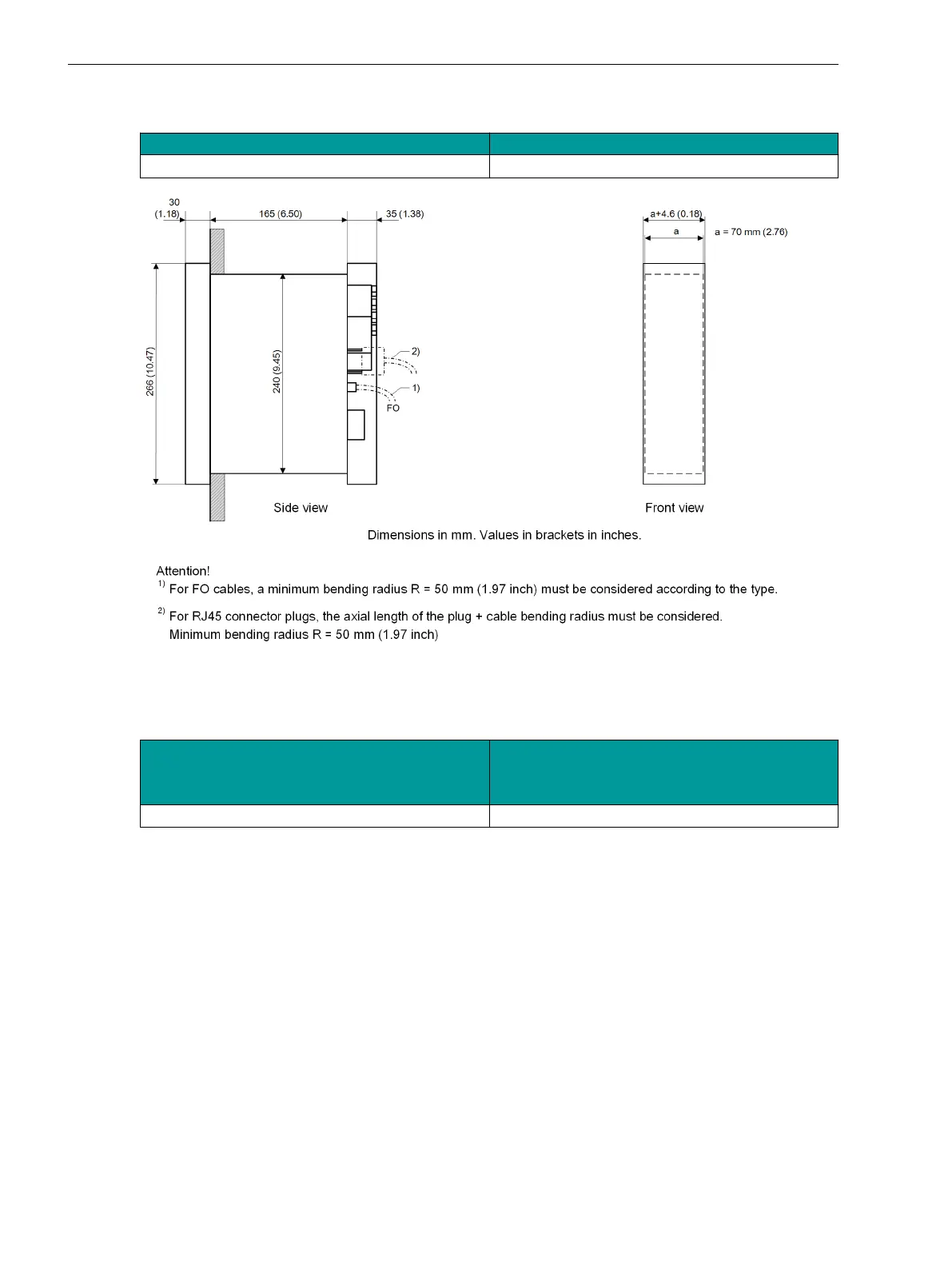

Figure 6-3
Flush-Mounting Devices, Dimensions from the Side and Front Views
Table 6-2 Variable Housing Widths
Dimension a
Housing Widths in mm (in Inches)
(Total Width: Housing Width + 4.6 mm (0.18 in))
1/6 device 70 (2.76)
Technical Data
6.9 Assembly Dimensions
64 SIPROTEC 5 Compact, Hardware Description, Manual
C53000-G5300-C002-3, Edition 12.2021
