Surface-Mounted Devices with Integrated On-Site Operation Panel
[dw_console side view SIP5 Comp, 2, en_US]

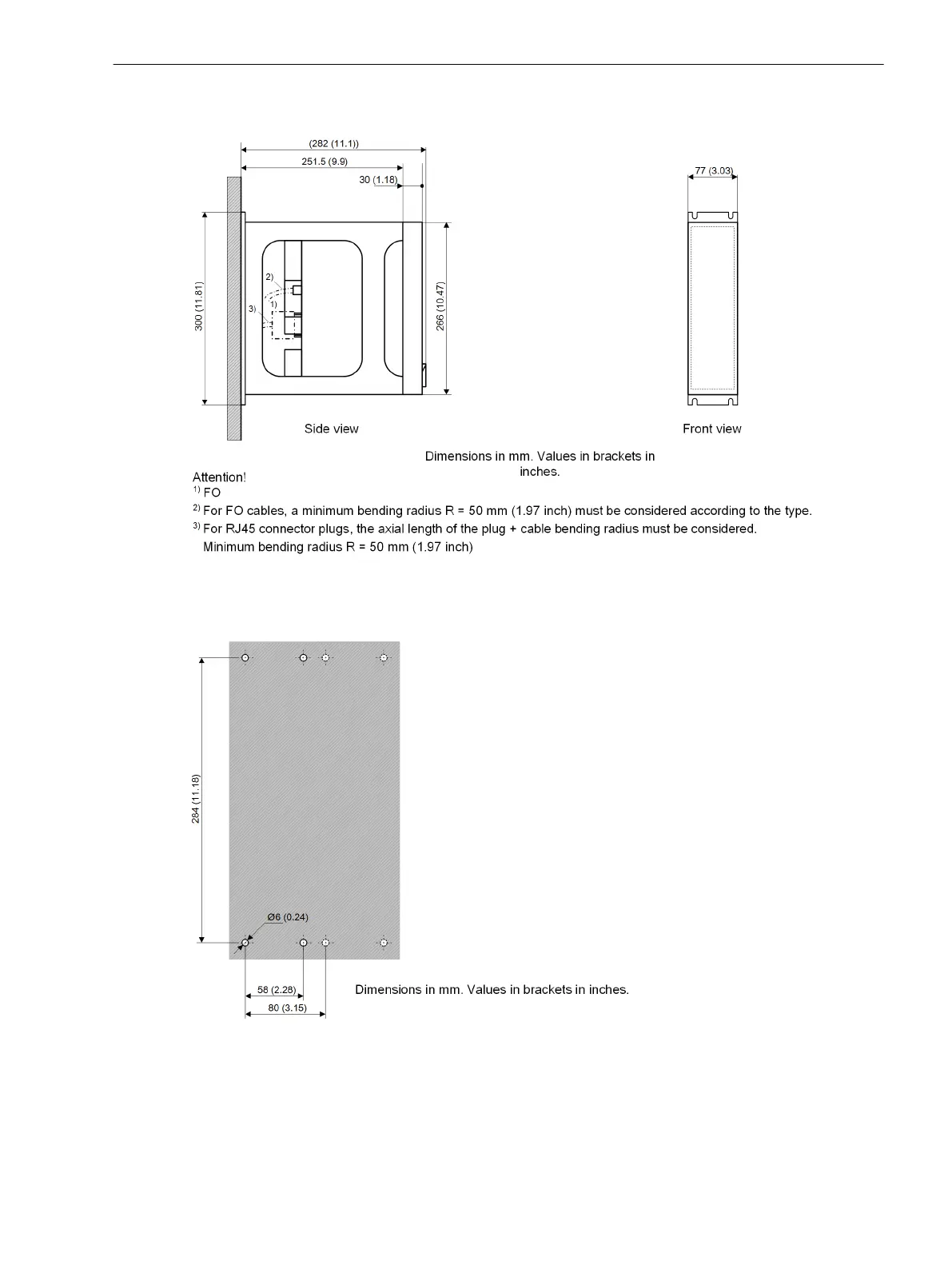

Figure 6-4
Surface-Mounted Device with Integrated On-Site Operation Panel; Dimensions in the Side and
Front Views
[dw_drilling-plans_for_SIP5compact_dimensions, 1, en_US]
Figure 6-5 Drilling Pattern of a Surface-Mounted Device with Integrated On-Site Operation Panel
Technical Data
6.9 Assembly Dimensions
