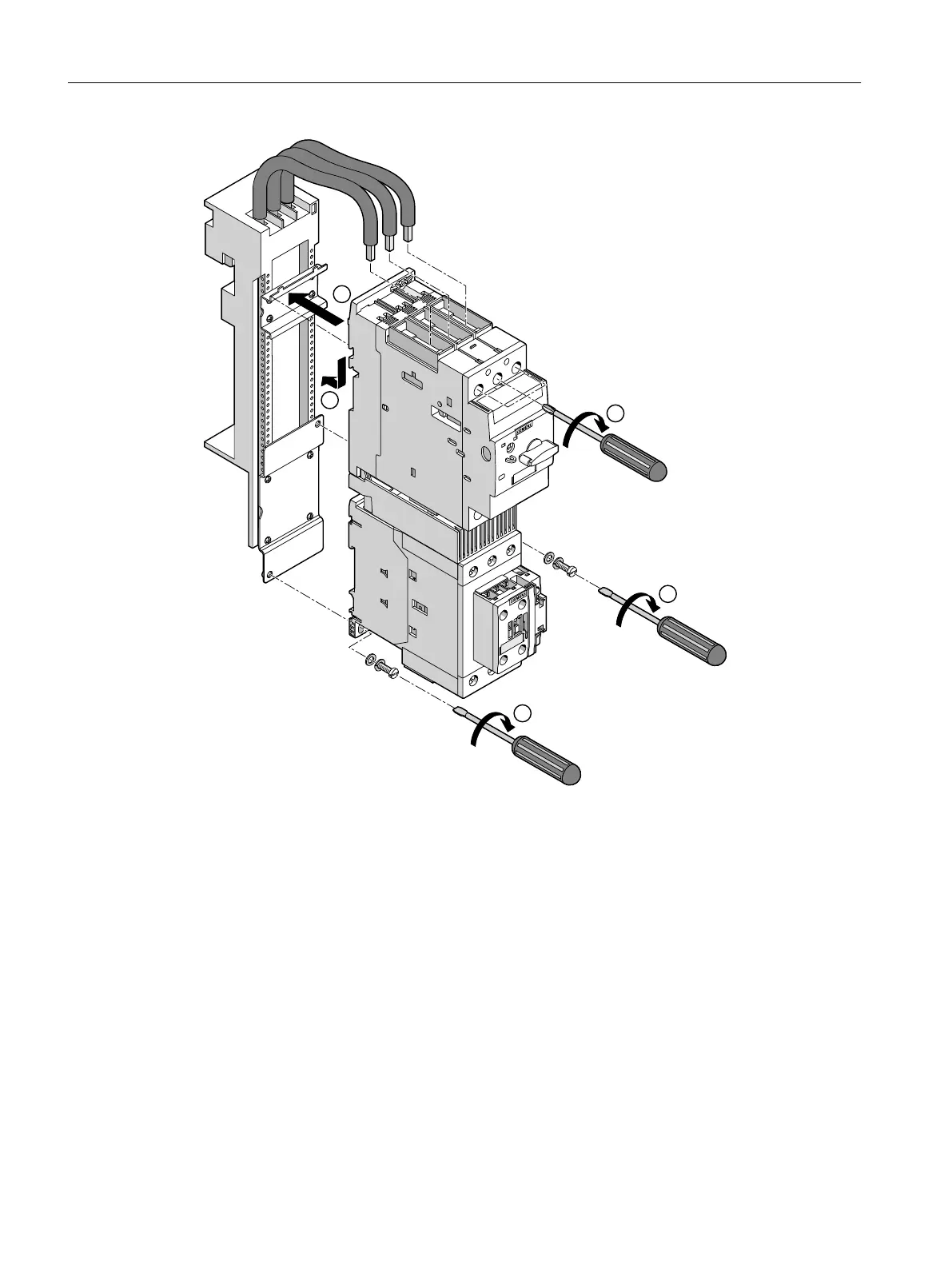

Hook the feeder into the upper hooking position of the motor starter protector, and swivel the
feeder to the busbar adapter.
⑪ Screw the contactor tight diagonally into the openings provided using two M4 screws, plain
washers and spring washers.
Tightening torque: 1.5 ... 1.6 Nm
⑫ Insert the connecting cables into the corresponding main conductor terminals. Screw the main
conductor terminals tight.
Installing the vibration and shock kit for reversing starters in sizes S00 and S0
The following gures show how to install the vibration and shock kit 8US1998‑1CA10.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
