7.2.2 Load feeder with screw-type connection system
Mounting an S00 load f
eeder with screw-type connection system






① Mount the link module on the contactor.
② Insert the pins into the corresponding main conductor terminals.
③ Screw the main conductor terminals tight.
④ Attach the contactor and the link module to the bottom of the motor starter protector. Insert the
guide t
abs into the slots on the motor starter protector.
⑤ Insert the pins into the corresponding main conductor terminals.
⑥ Screw the main conductor terminals tight.

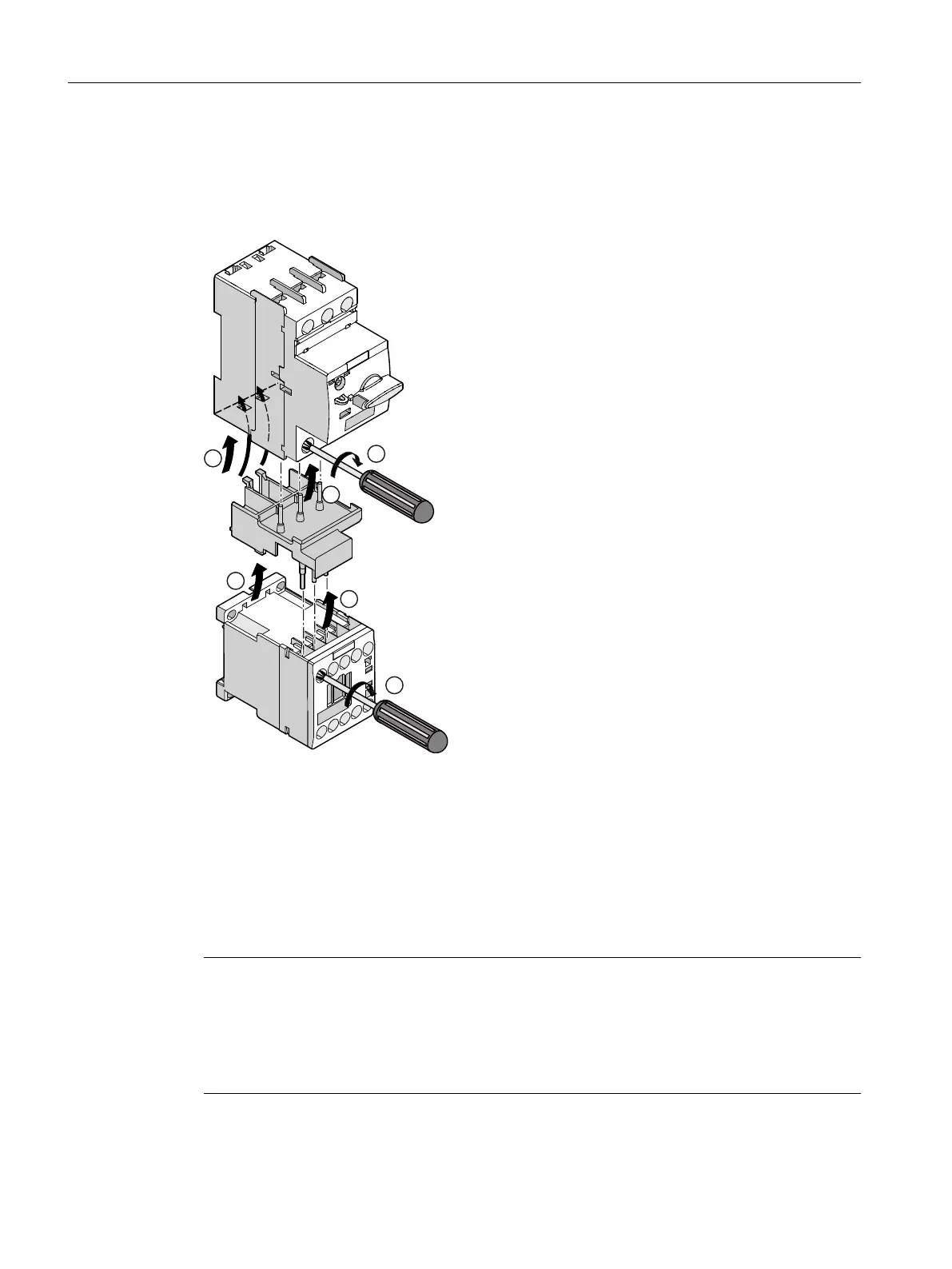

Figure 7-2 Mounting an S00 load feeder with screw-type connection system
Note
Mounting t
he S0 motor starter protector and S00 contactor with screw-type connection
system
The link module for the S00 load feeder can also be used to mount an S00 contactor on an
S0 motor starter protector. The link module for the S0 load feeder can also be used to mount an
S0 contactor on an S00 motor starter protector.
