Mounting an S0 load feeder with screw-type connection system
① Mount the link module on the contactor.
② Insert the connectors into the corresponding main conductor terminals.
③ Screw the main conductor terminals tight.
④ Place the contactor and the link module on the bottom of the motor starter protector. Insert the
guide tabs into the slots on the motor starter protector. Insert the connectors into the corre‐
sponding main conductor terminals at the same time.
⑤ Screw the main conductor terminals tight.

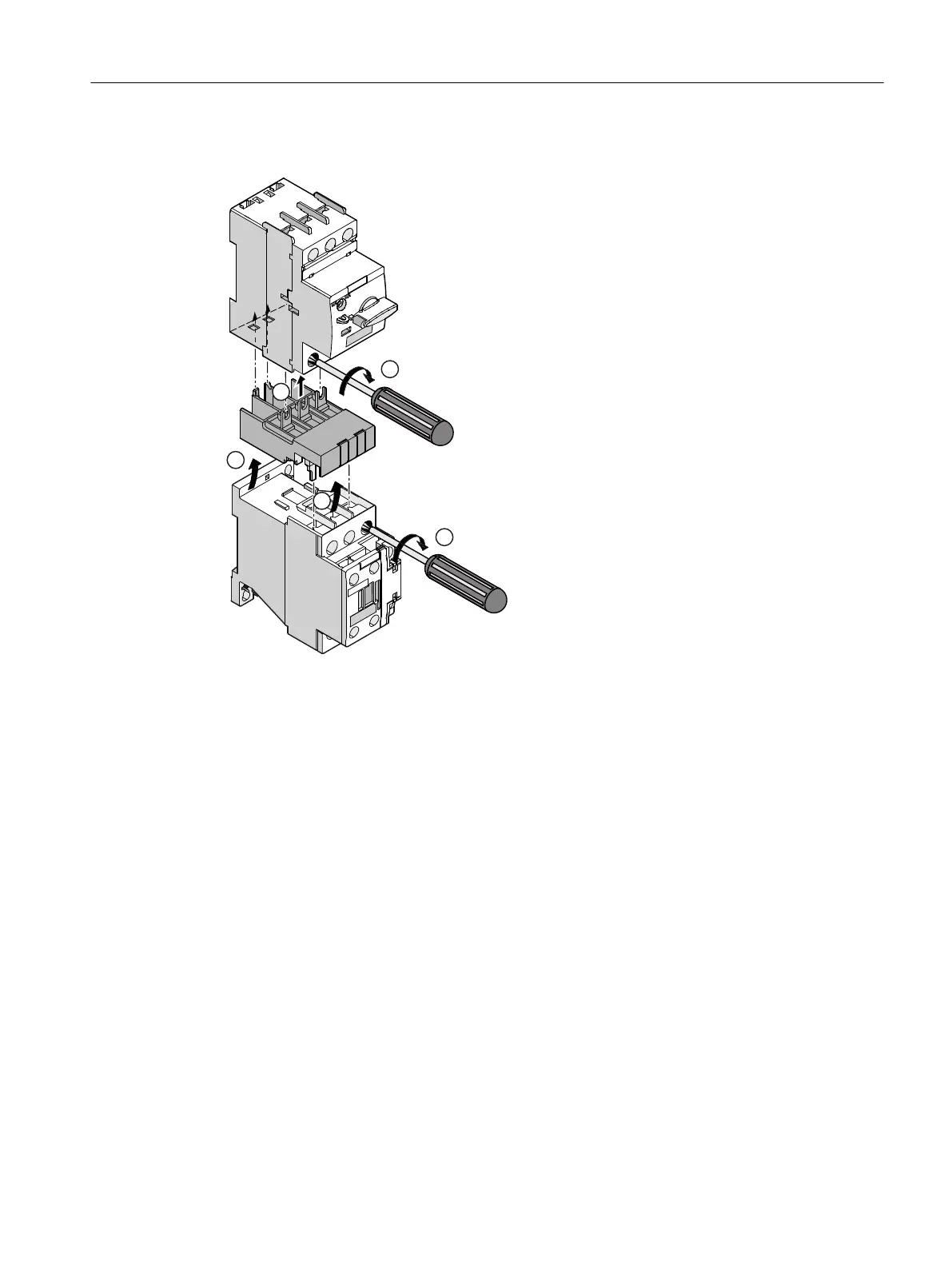

Figure 7-3 Mounting an S0 load feeder with screw-type connection system
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 45
