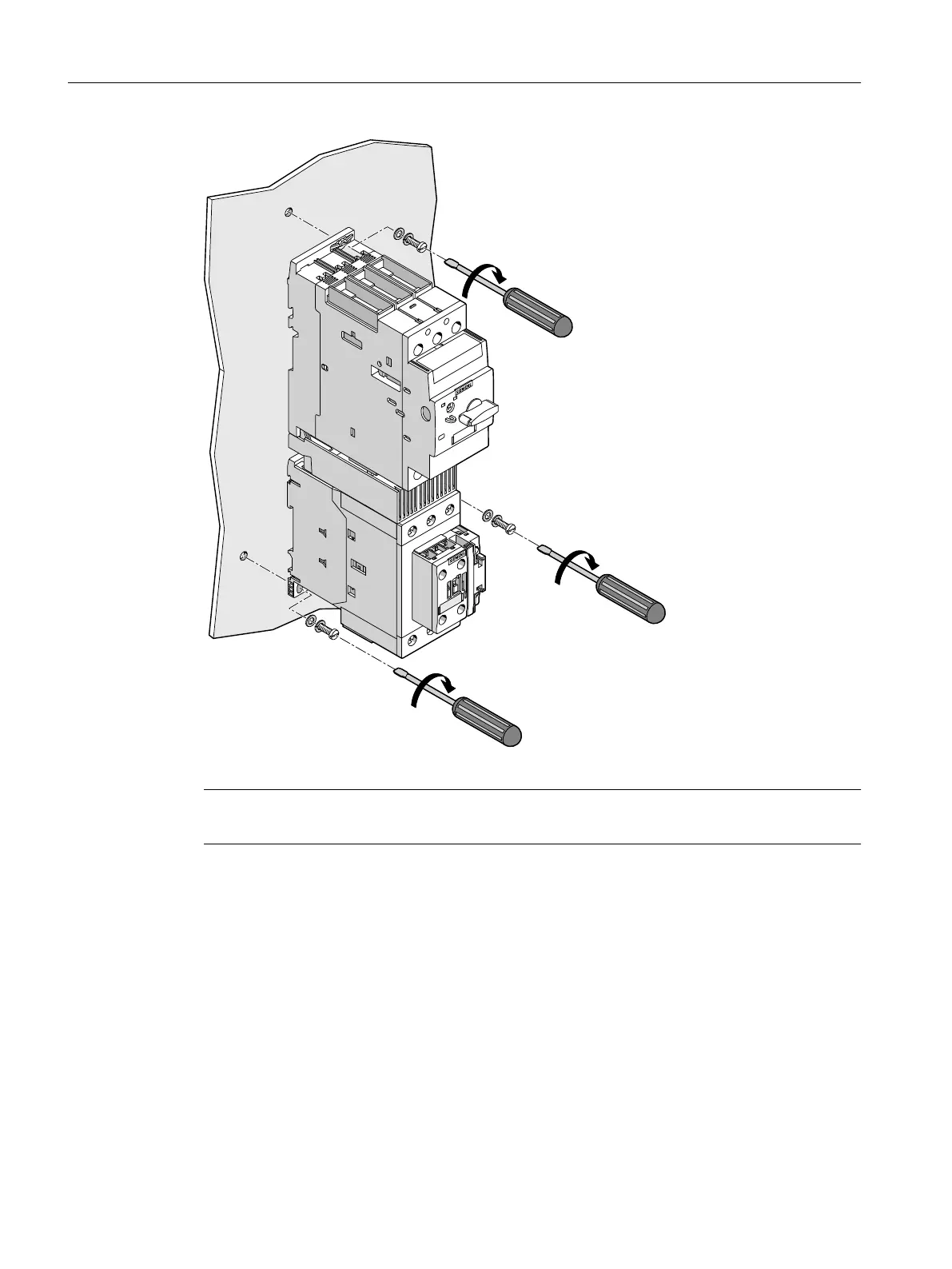

Figure 7-52 Mounting on base plate (direct-on-line starter, screw-type connection system, size S2)
Note
3 x M4 screws (1.2 ... 1.5 Nm) should be used to fasten the contactors.
Disassembling the DIN rail adapter from the base plate
To disassemble the DIN rail, unscrew the screws and remove the adapter.
7.3.4.2 Mounting on base plate with DIN rail adapter
Mounting on base plate with DIN rail adapter
Mounting on a base plate with DIN rail adapter is permissible for all device combinations. Size S0
reversing starters have to be mounted with DIN rail adapters.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
112 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
