① Place the feeder (upper hooking position of the motor starter protector) on the upper edge of the
DIN rail, and press it down as shown in the gure.
② Press the locking device down with a screwdriver. (2.1 / 2.2) Then push the device back with a
swivel action so that it snaps onto the DIN rail. (2.3)

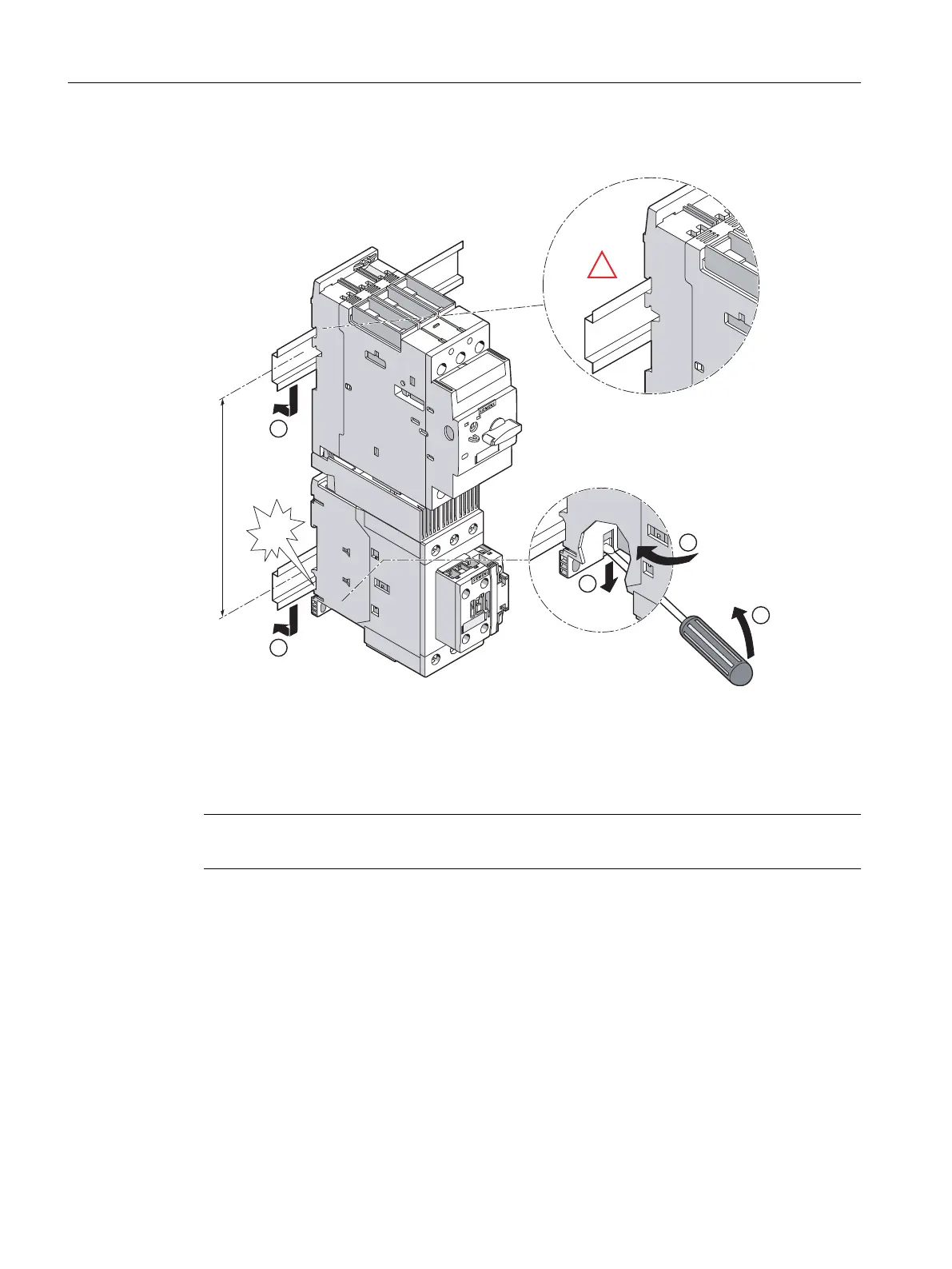

Figure 7-24 Mounting on DIN rail without adapter (size S2)
Note
Disassemble by carrying out the above steps in reverse order for all sizes.
7.3.2 On DIN rail with DIN rail adapter
All feeders can be mounted on DIN rails with DIN- rail adapters.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
64 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
