Types of adapter
One DIN-rail adapter each is available for sizes S00/S0, S2, and S3. A pair of adapters is required
for mounting a reversing contactor assembly.

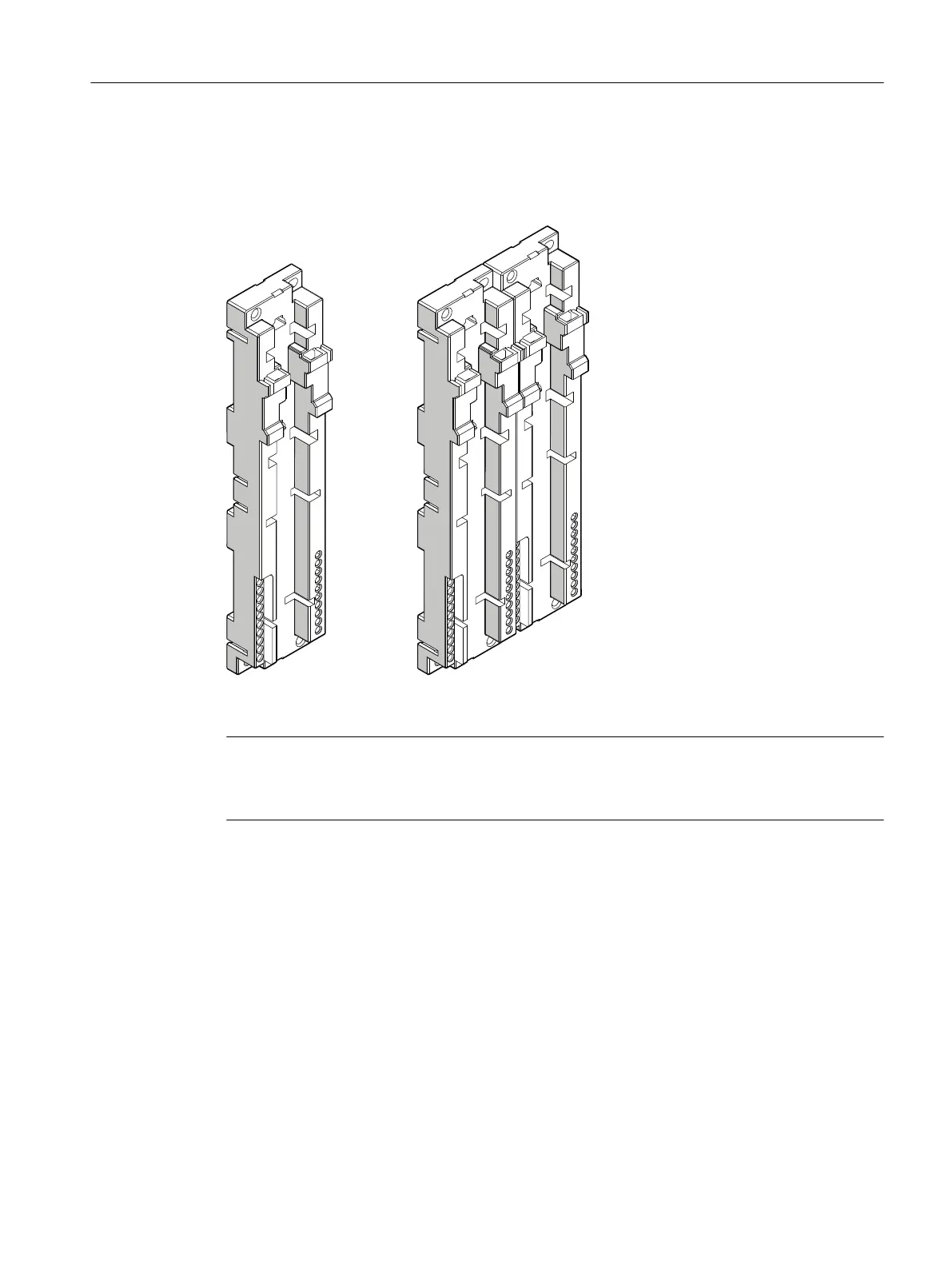

Figure 7-25 3RA2922-1BA00 DIN rail adapter, individually and as an adapter pair, short, screw-type
connection system only (size S00/S0)
Note
A DIN rail is required for installation with a DIN-rail adapter (size S0).
An assembly is also possible on two DIN rails with a distance of 125 mm.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
