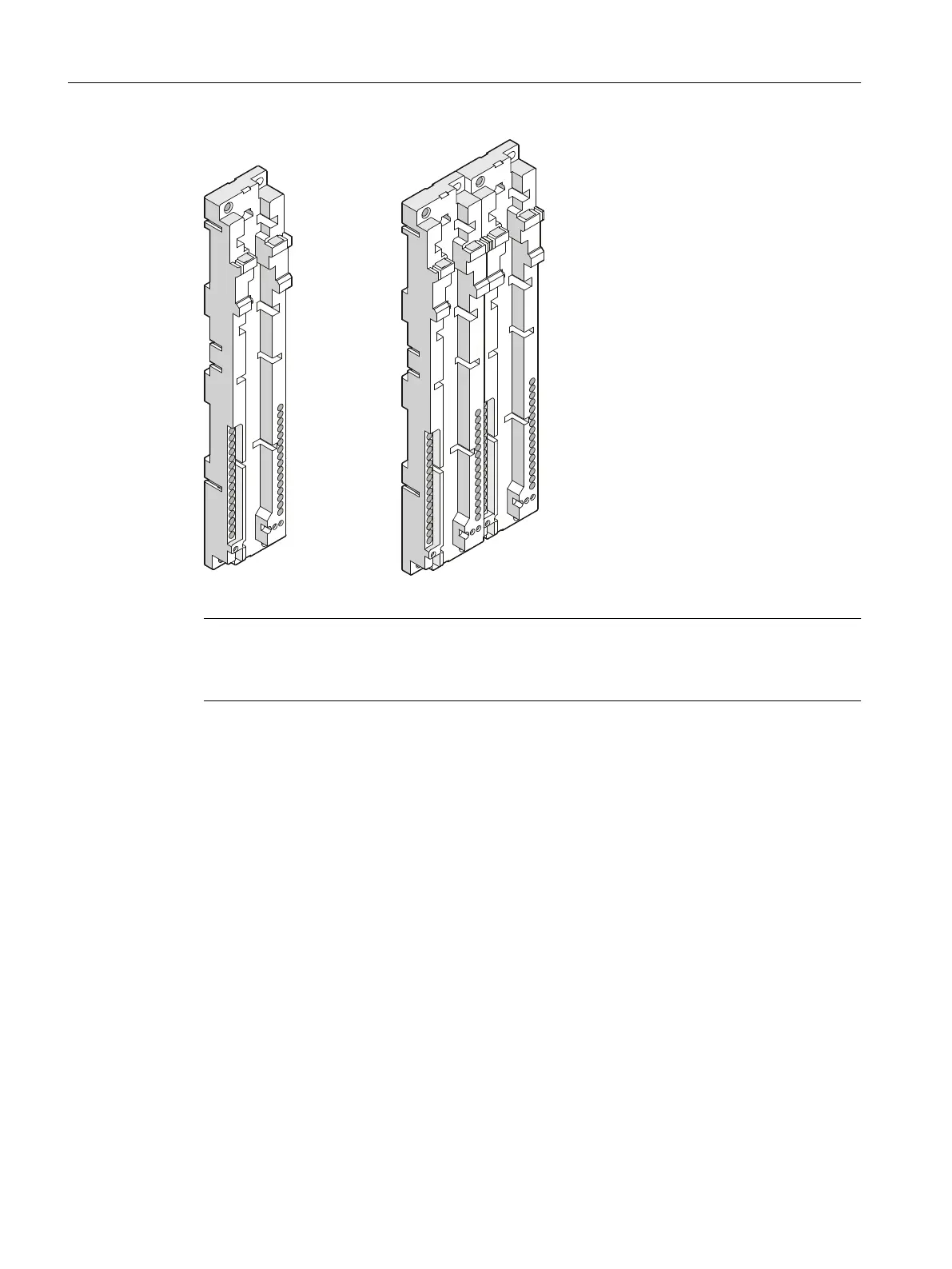

Figure 7-26 3RA2922-1AA00 DIN-rail adapter, individually and as an adapter pair (size S00/S0)
Note
A DIN rail is required for installation with a DIN-rail adapter (size S0).
An assembly is also possible on two DIN rails with a distance of 125 mm.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
66 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
