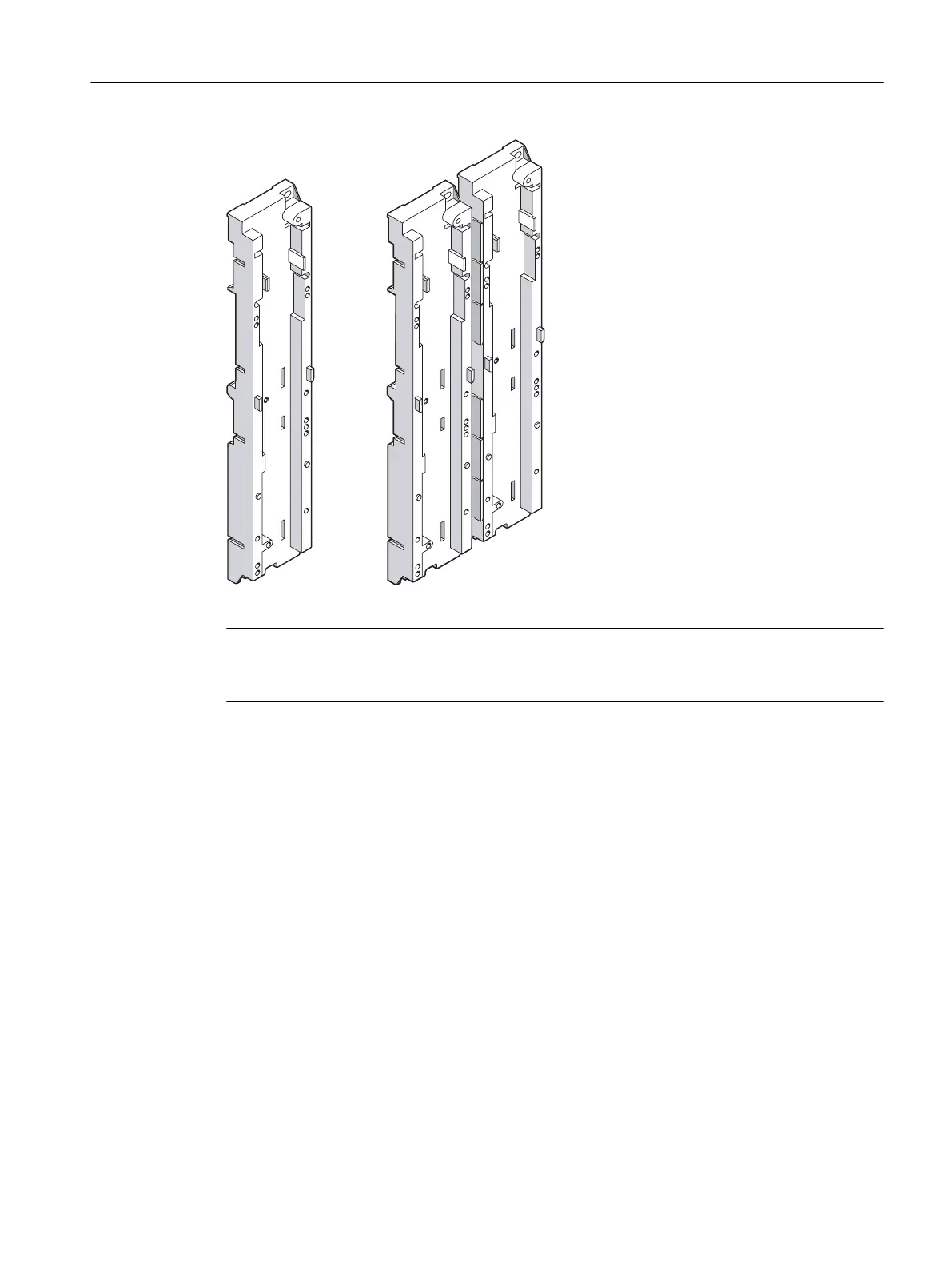

Figure 7-27 3RA2932-1AA00 DIN rail adapter, individually and as an adapter pair (size S2)
Note
Two DIN rails (DIN-rail spacing 125 mm) are required for installation with a DIN-rail adapter
(size S2).
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 67
