Direct-on-line starter and reversing starter (motor starter protector and solid-state contactor,
sizes S00 and S0, screw terminals, DIN rail or base plate)
The notes on installing direct-on-line starters and reversing starters, consisting of motor starter
protector and solid-state contactor can be found in the "SIRIUS – 3RF34 Semiconductor
Switching Devices" Equipment Manual (
https://support.industry.siemens.com/cs/ww/en/view/
60298187).
7.1.3 3RV2917 infeed system
7.1.3.1 Installation guidelines
Installation guideline – Short-circuit
When installing, the clearance in the Y direction from live, grounded or insulated parts in
accordance with IEC 60947-4 is: 10 mm. The installation guidelines for motor starter protectors
or fuseless load feeders must also be observed along with the associated clearances.

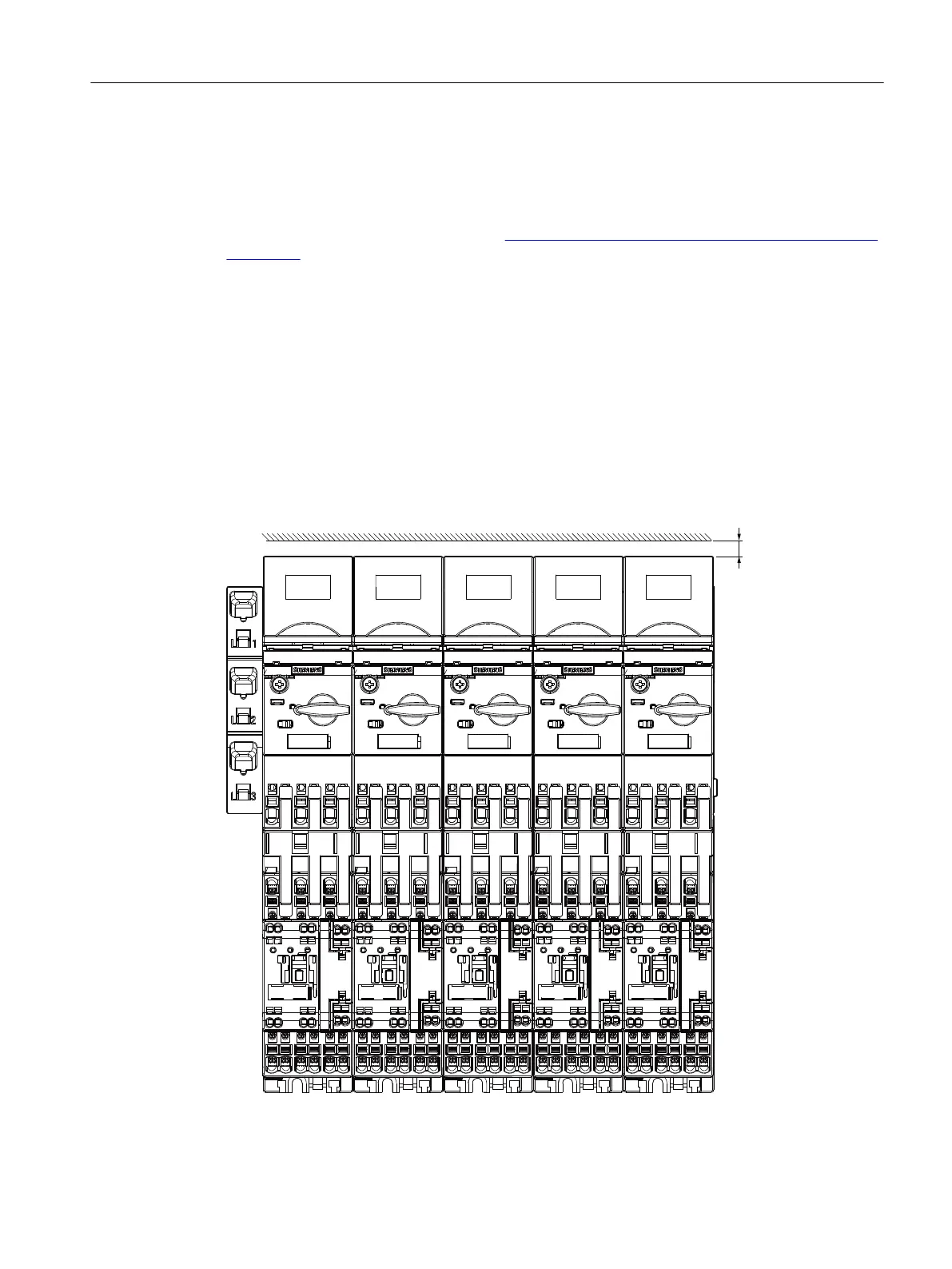

Figure 7-1 Installation guidelines
Mounting
7.1 Installation guidelines
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 41
