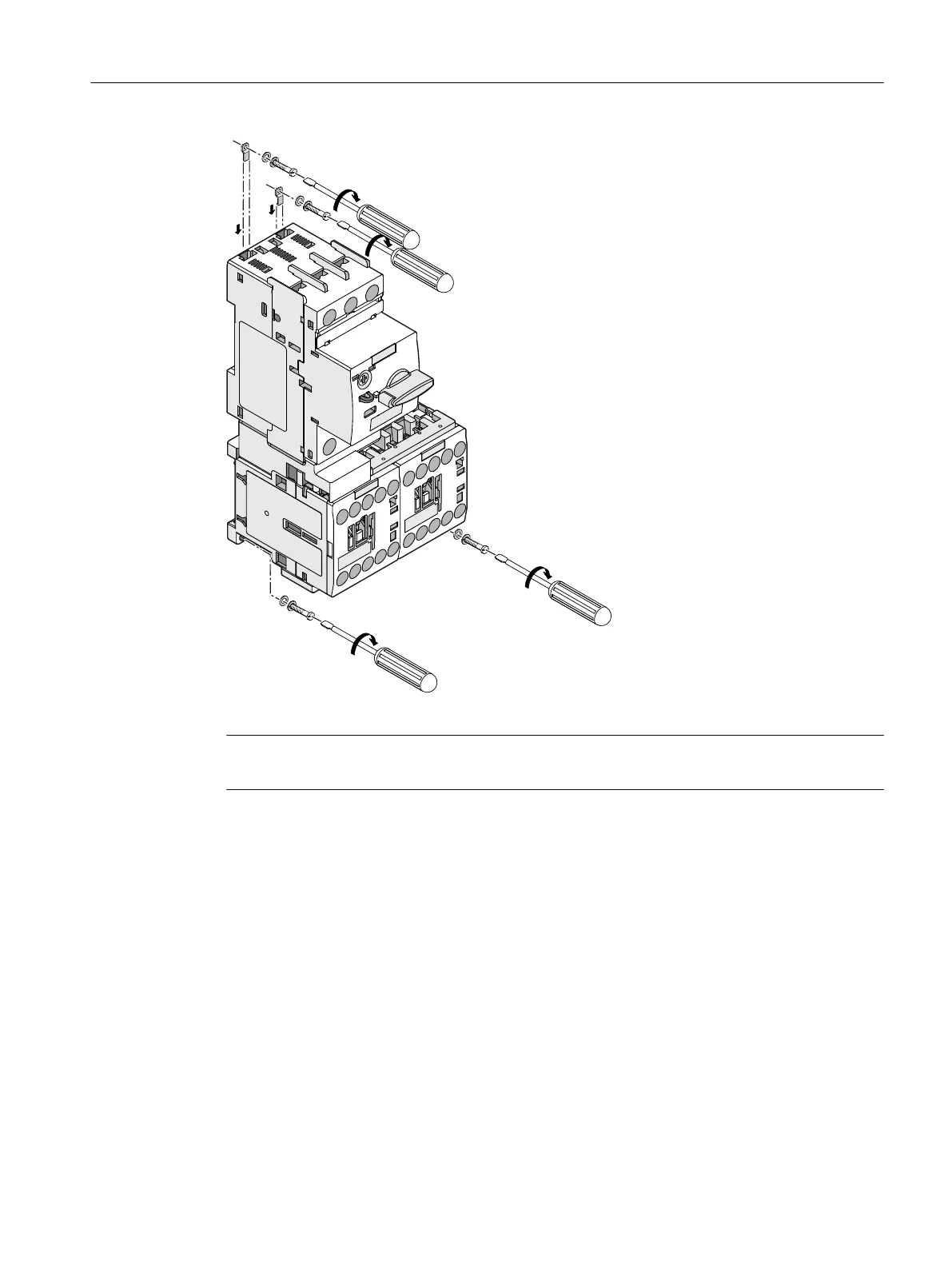

Figure 7-51 Mounting on base plate (reversing starter, screw-type connection system, size S00)
Note
4 x M4 screws (1.2 ... 1.6 Nm) should be used to fasten the reversing starter.
Size S2
The gure below shows mounting on a base plate without DIN rail adapter for direct-on-line
starters of size S2.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004 111
