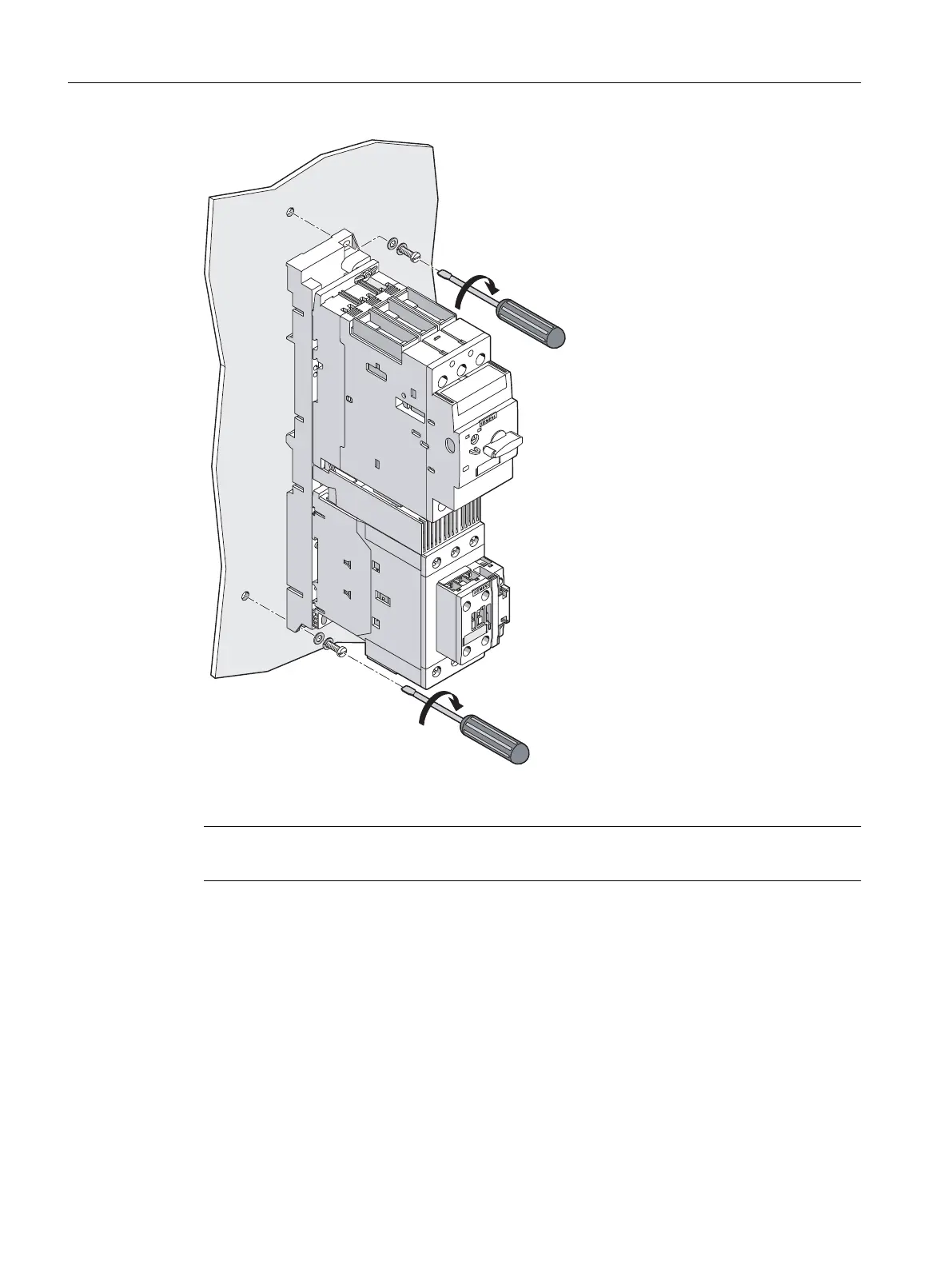

Figure 7-54 Mounting on base plate (direct-on-line starter with DIN rail adapter, screw-type connection
system, size S2)
Note
2 x M4 screws (1.5 ... 1.6 Nm) should be used to fasten the DIN rail adapter.
Mounting
7.3 Assembly and disassembly with dierent mounting systems
SIRIUS 3RA Load Feeders
114 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
