② Attach the contactor and the link module to the bottom of the motor starter protector. Check the
guide tabs.
③ Insert the pins into the corresponding main conductor terminals.
④ Screw all connectors tight.

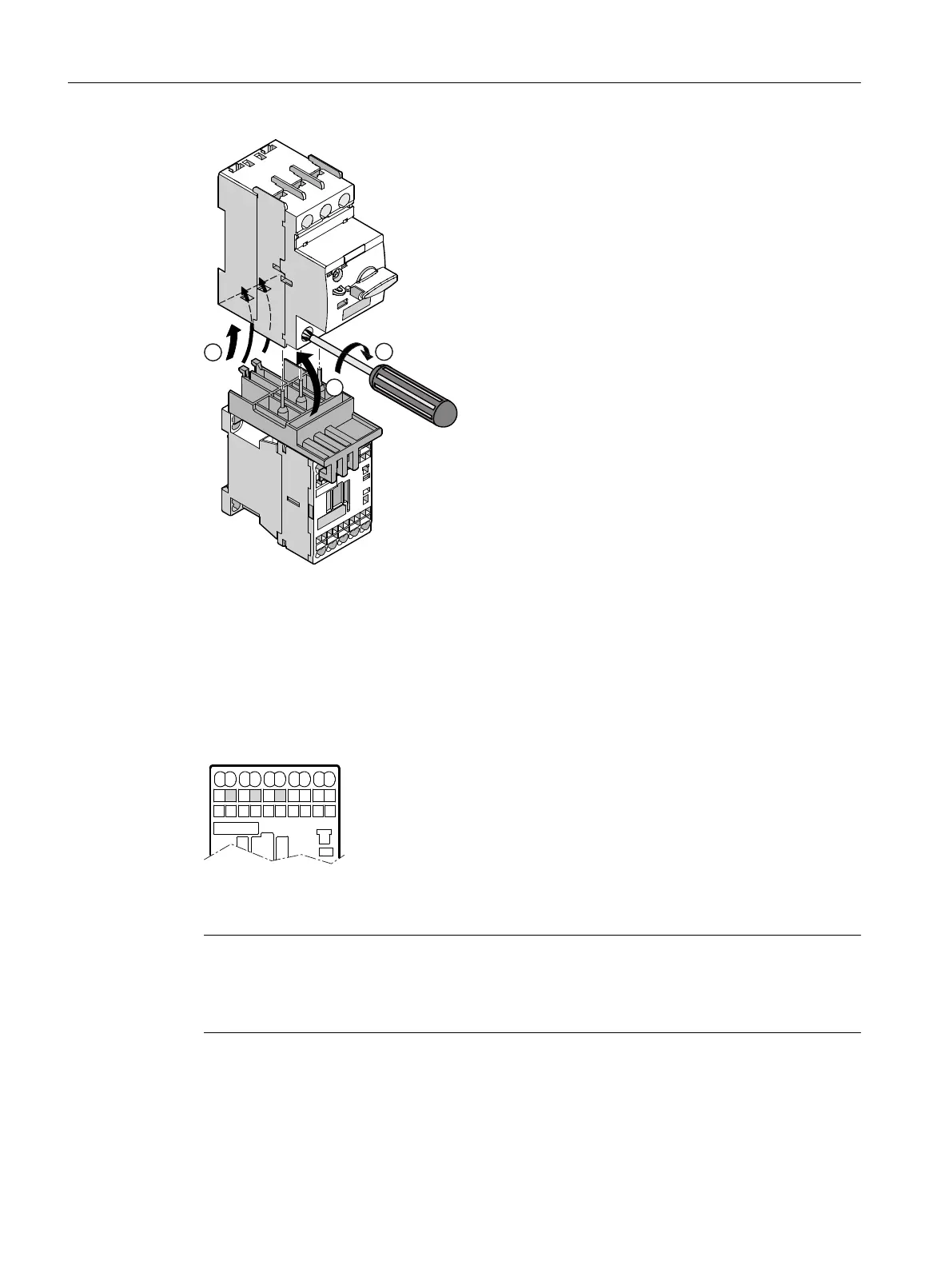

Figure 7-18 Mounting an S00 load feeder with hybrid connection system
Main conductor terminals on the contactor (size S00)
Figure 7-19 Main conductor terminals on the contactor (size S00)
Note
Mounting the S0 motor starter protector and S00 contactor with hybrid connection system
The link module for the S00 load feeder can also be used to mount an S00 contactor on an
S0 motor starter protector.
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
58 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
