② Attach the contactor and the link module to the bottom of the motor starter protector. Check the
guide tabs.
③ Insert the pins into the corresponding main conductor terminal.
④ Screw all connectors tight.

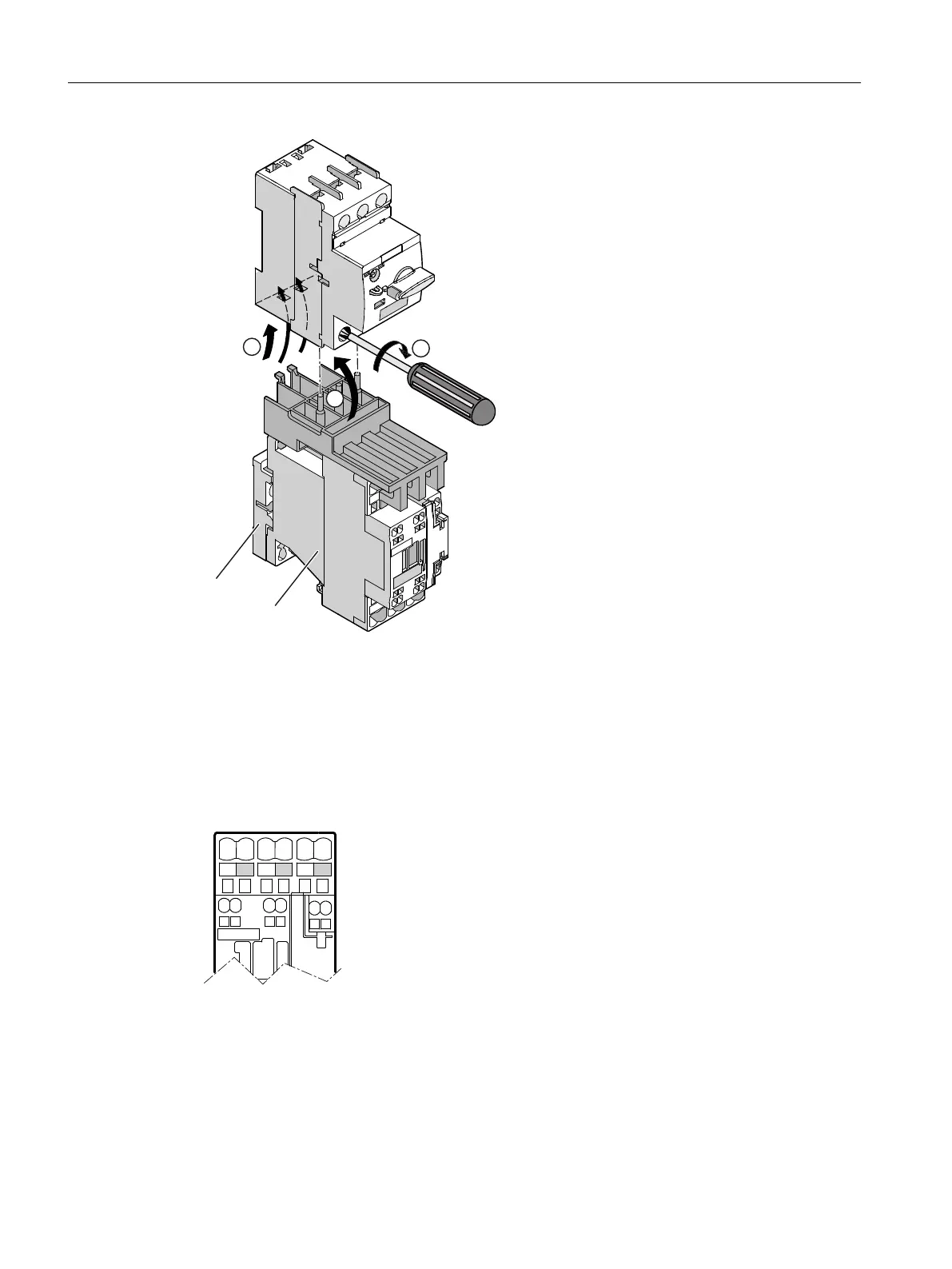

Figure 7-21 Mounting an S0 load feeder with hybrid connection system
Main conductor terminals on the contactor (size S0)
Figure 7-22 Main conductor terminals on the contactor (size S0)
Mounting
7.2 Mounting and disassembling load feeders
SIRIUS 3RA Load Feeders
60 Equipment Manual, 02/2022, A5E03656507520A/RS-AC/004
