Mounting the direct-on-line starter / reversing starter on the DIN rail adapter: Size S00 and S0

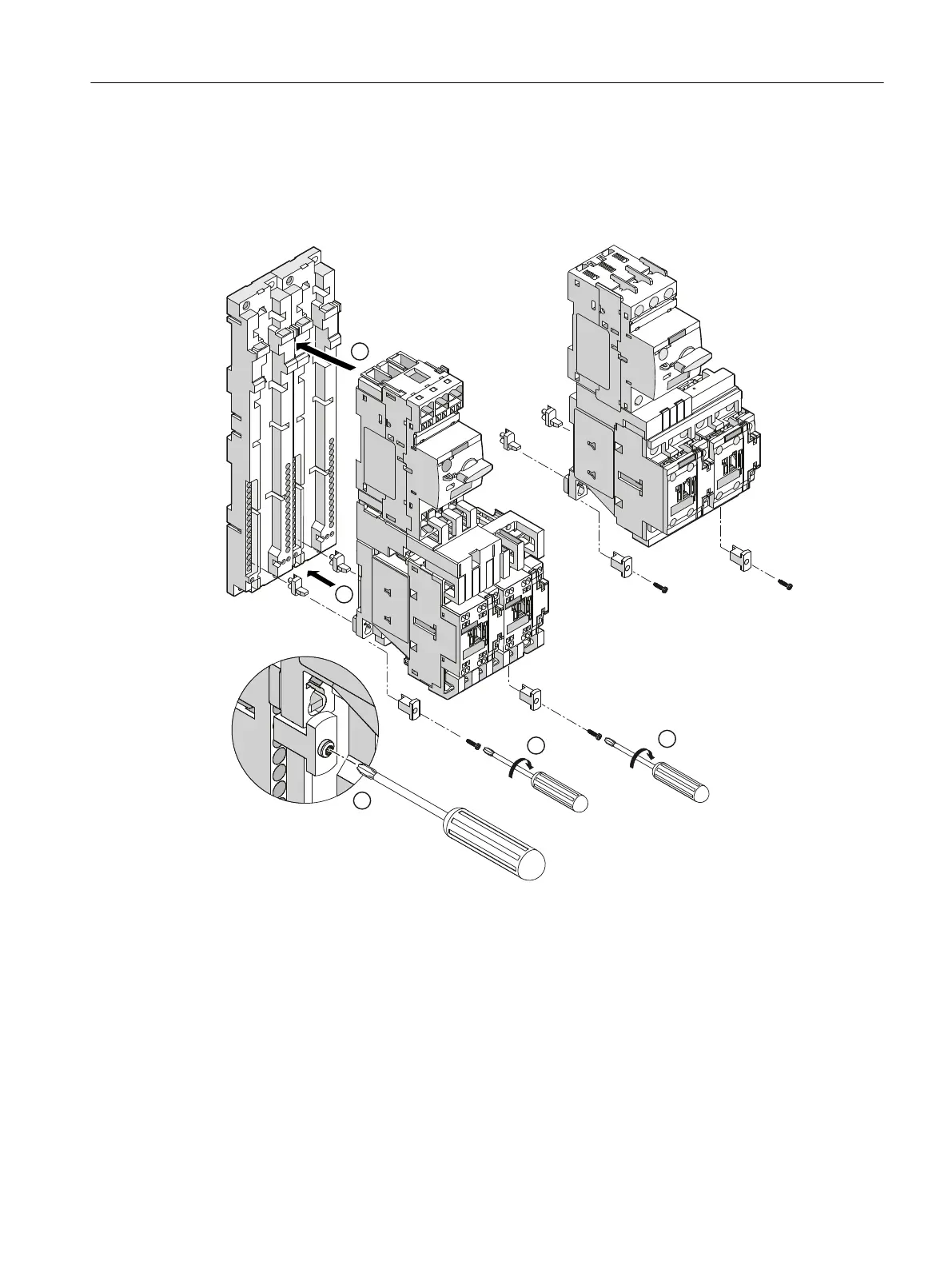

The gure below illustrates DIN rail adapter mounting using the example of the size S0 reversing
starter with spring-loaded connection system and screw-type connection system. The devices
are snapped onto the DIN rail adapter and screwed onto the adapter.
Left Size S0 reversing starter with DC operation and spring-loaded connection system
Right Size S0 reversing starter with DC/AC operation and screw-type connection system
① Attach a connecting piece to each of the two DIN rail adapters. Insert each of the connecting
pieces into the left-hand line of holes.
