Observe the following points for safe transport:
●
When using a crane to transport the equipment, keep to the permissible lifting capacity.
Carefully observe the center of gravity.
● If the cabinet center of gravity is off-center, use suitable and undamaged suspension
equipment, e.g. a cross beam. The lifting beam reduces the pressure on the device and
prevents damage.
● If the cabinet has eye hooks, use them. In such cases, do not use any lifting rods.
Transport using the top-mounted eye bolts

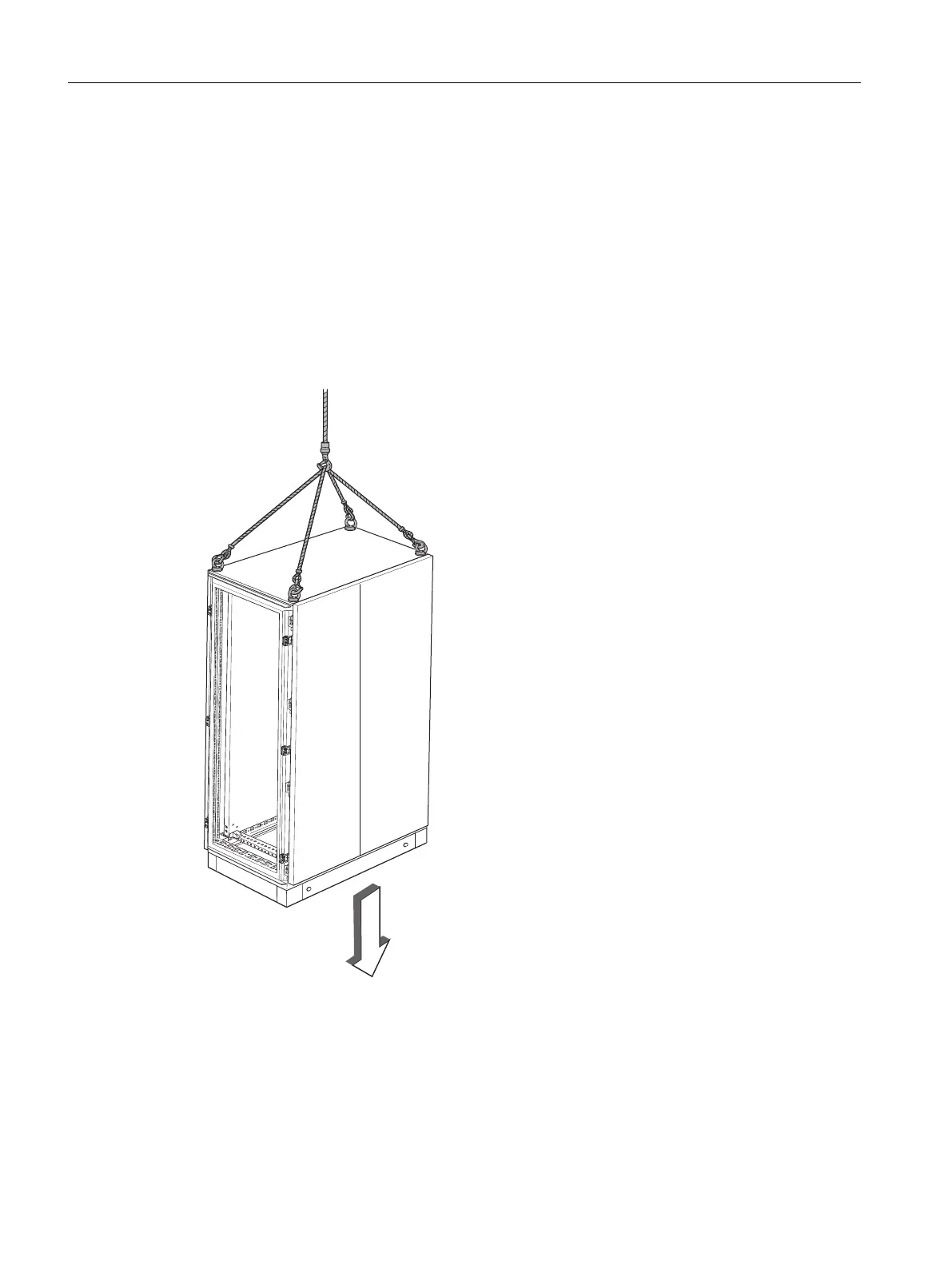

Figure 3-4 Diagram: crane transportation
Attach the crane to the top-mounted lifting eyebolts and then lift the cabinet.
Avoid displacing the center of gravity or distorting the cabinet. When suspended, the cabinet
must be parallel to the ground.
Preparations for use
3.3 Transport
Applications for Cabinet Modules, liquid cooled
52 Operating Instructions, 04/2015, A5E35974555A
