3.3.6 Transporting transportation units packed in boxes
Transportation with the fork-lift truck
When the transport units are transported with a fork-lift truck, the force is absorbed through
the
transport pallet. Observe the guidelines described in the section "Transport with a fork-lift
truck".
Transportation with the crane
Observe the guidelines described in the section "Transport with a crane". To protect the boxes
against pressure, use sufficiently long rope and a spreader beam. Please proceed as follows:
1. Attach the rope/cable to the pallet as shown in the following diagram.
2. Attach the rope/cable to the spreader beam ① and the crane hook.
3. Pay attention to the center of gravity imprinted on the box ② and the imprinted position of
the ropes ③.
4. Carefully raise the transportation unit.
① Spreader beam
② Center of gravity
③ Imprinted position of the rope

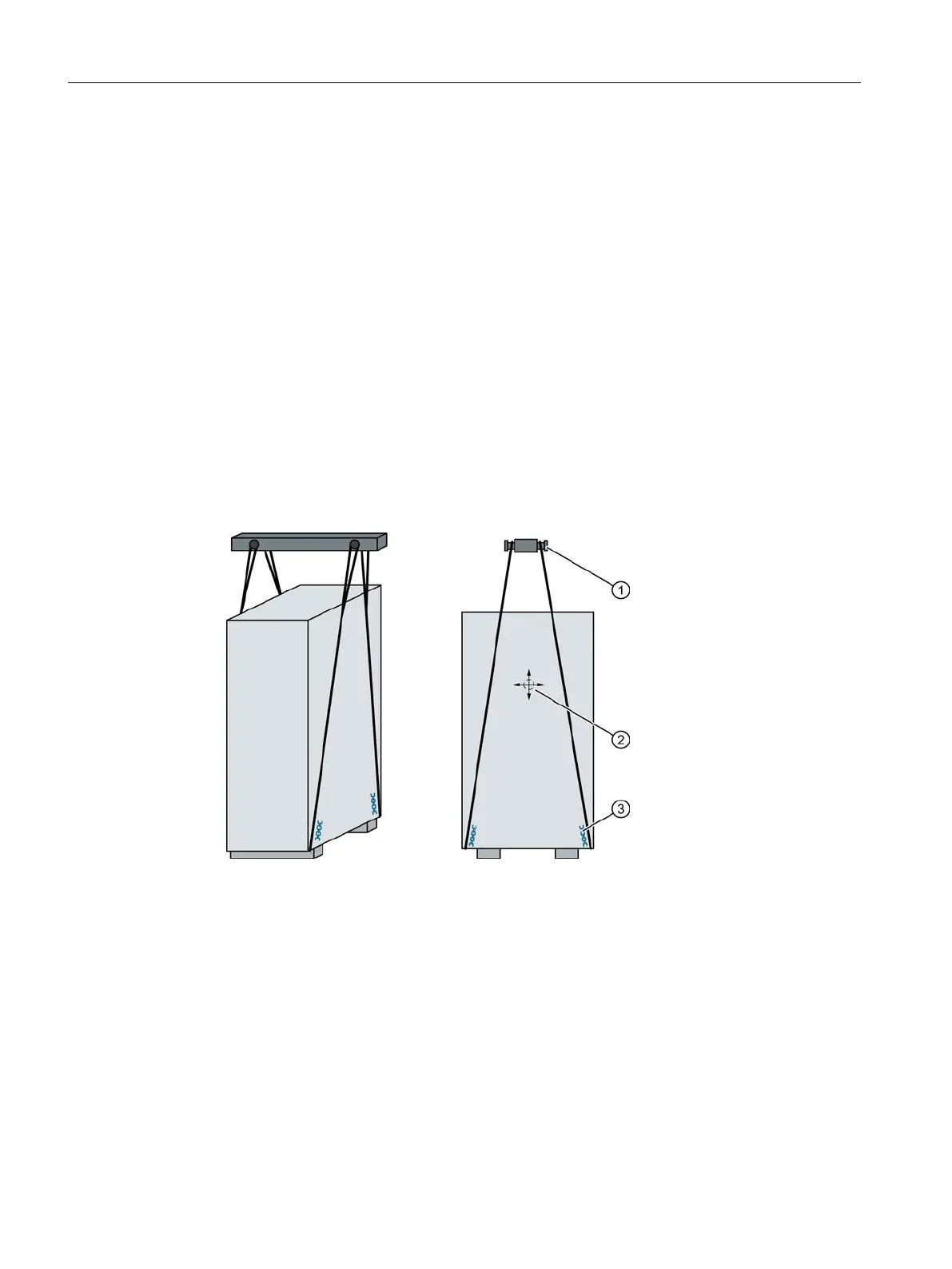

Figure 3-6 Transporting a transportation unit (still in packaging) with a crane
See also
Transporting using a crane
(Page 51)
Transport with a fork-lift truck (Page 51)
