5.3.8 Fastening the cable ducts with cable ties
Fasten
all cable ducts whose cover faces downward with cable ties. Wind the cable ties around
the entire cable duct. The cable ties must be located at the same positions as in the delivered
state.

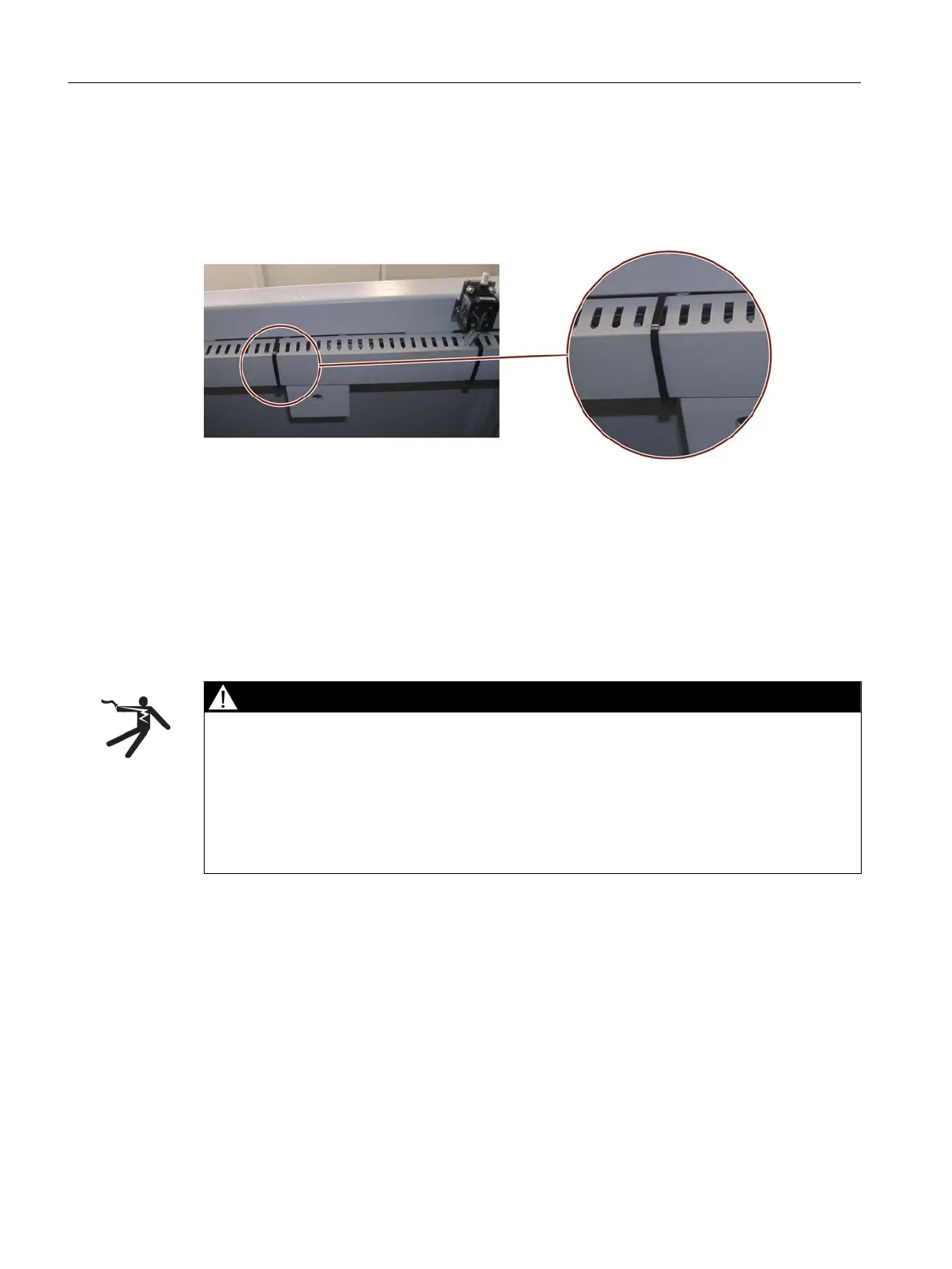

Figure 5-4 Fastening the cable ties
5.4
Cable routing
5.4.1 Basic rules for cable routing
DANGER
Hazardous electrical voltage
The work described in this section is carried out in cabinets that are operated in industrial
high-voltage installations. During operation, this cabinet contains live parts at high voltages
and rotating parts. Fatal or severe injuries and substantial material damage can occur if the
required covers are inadmissibly removed or when incorrectly used, incorrectly operated or
inadequately maintained.
Read and observe the safety and application notes.
Ensure, before starting work – for all cable routing and connection work in the Cabinet
Applications – the following:
●
Bring the cabinet unit into a no-voltage condition.
● Comply with the "five safety rules".
● Facilitate free access to the required components in the Cabinet Modules. If necessary,
remove the covers.
Electrical connection
5.4 Cable routing
Applications for Cabinet Modules, liquid cooled
86 Operating Instructions, 04/2015, A5E35974555A
