4.2 Determining a location
Note
The sensor must always be completely filled with liquid.

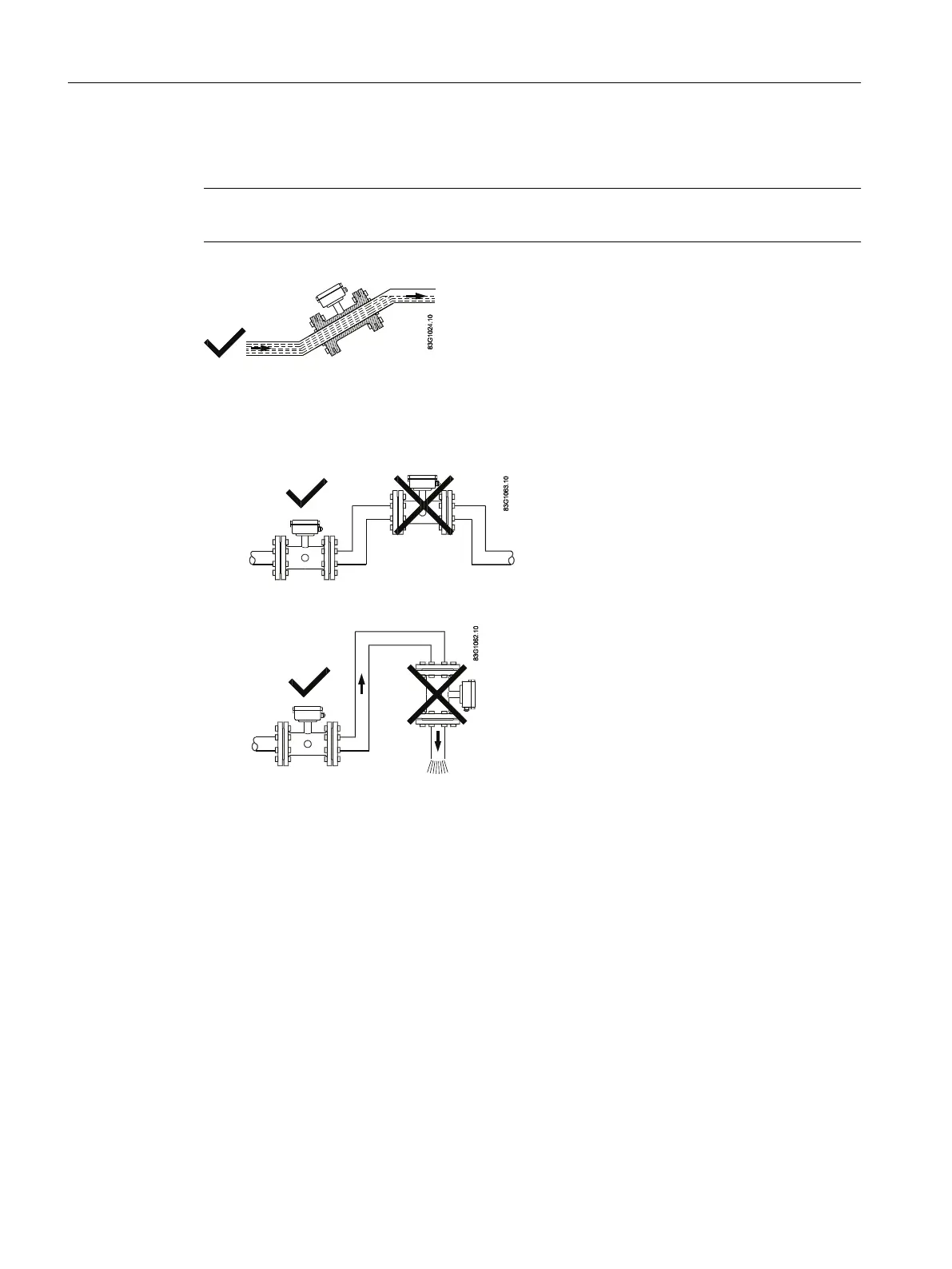

Figure 4-1 Correct installation with filled pipes
● Avoid the following installations
– Installation at the highest point in the pipe system
– Installation in vertical pipes with free outlet
Figure 4-2 Wrong installation at high point
Figure 4-3 Correct installation at low point before outlet
Inlet and outlet conditions
To achieve accurate flow measurement it is essential to have straight lengths of inlet and outlet
pipes and a certain distance to pumps and valves.
It is also important to centre the flowmeter in relation to pipe flanges and gaskets.
Installing/Mounting
4.2 Determining a location
SITRANS F M MAG 1100 sensor
20 Operating Instructions, 01/2018, A5E03433301-AC

Siemens SITRANS F M MAG 1100 Specifications

General

Product type	Electromagnetic flowmeter
Type	SITRANS F M MAG 1100
Process pressure	Up to 16 bar
Power supply	24 V DC
Accuracy	±0.5% of measured value
Output signal	4 to 20 mA
Process Connection	Flanged
Material	Stainless steel
Electrode Material	Stainless steel, Hastelloy, Tantalum
Liner Material	PTFE
Protection Class	IP67
Process temperature	-20 to +60 °C
