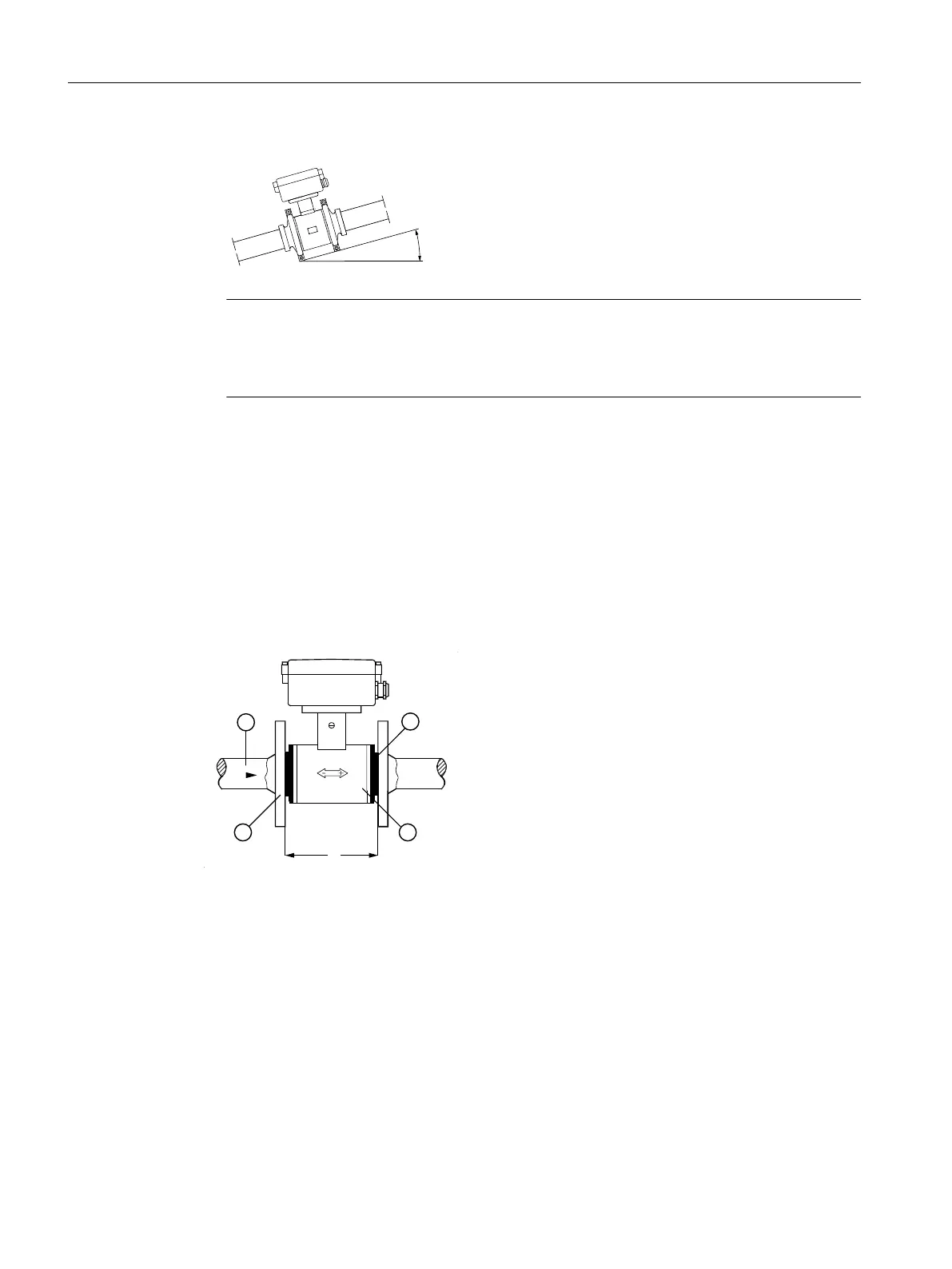

● Self-draining installation, minimum incline of 15° to the horizontal plane
r
Note
3A and EHEDG certification
For the hygenic certifications 3A and EHEDG it is required to mount the sensor either
vertically or with the shown incline of at least 15°
4.5 Mounting MAG 1100/1100 HT
● Install the sensor in rigid pipelines in order to support the weight of the meter.
● Center the connecting pipelines axially in order to avoid turbulent flow profiles.
● Use proper gaskets according to liner type
Remove liner protectors before installing the flow meter



/
1. Existing pipe
2. Flange
3. Sensor
4. Gaskets
5. Sensor length incl. gaskets
Installing/Mounting
4.5 Mounting MAG 1100/1100 HT
SITRANS F M MAG 1100 sensor
24 Operating Instructions, 01/2018, A5E03433301-AC

Siemens SITRANS F M MAG 1100 Specifications

General

Product type	Electromagnetic flowmeter
Type	SITRANS F M MAG 1100
Process pressure	Up to 16 bar
Power supply	24 V DC
Accuracy	±0.5% of measured value
Output signal	4 to 20 mA
Process Connection	Flanged
Material	Stainless steel
Electrode Material	Stainless steel, Hastelloy, Tantalum
Liner Material	PTFE
Protection Class	IP67
Process temperature	-20 to +60 °C
