Modbus RTU RS-485
9
SFIDK.PS.023.D2.02
4. Commissioning

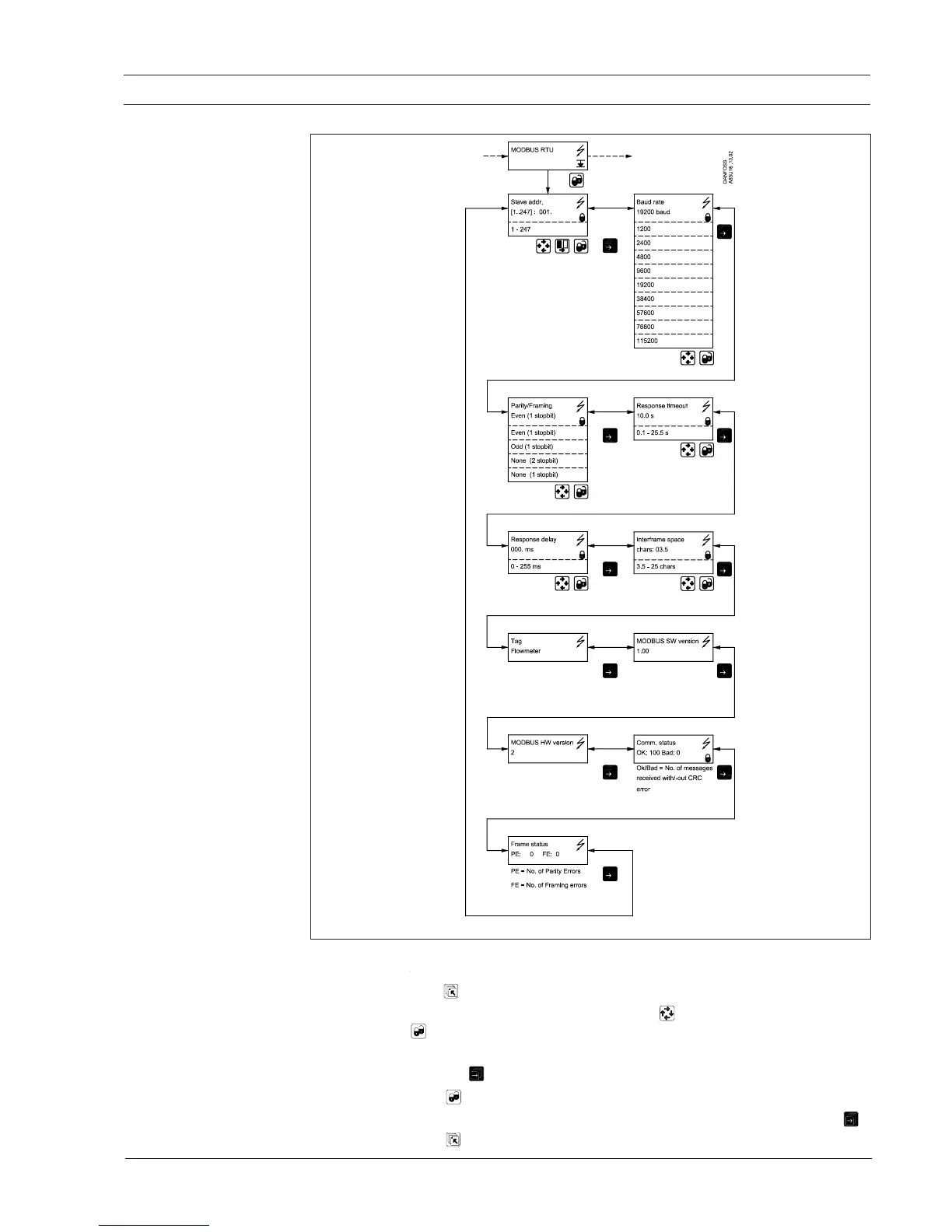

4.2 Modbus RTU display
menu
To change (or view) the Modbus RTU settings from the keypad display.
1. Press [Top key] for two seconds. (Note: For “View” mode only, skip steps 2 & 3).
2. Type in password (1000) by pressing [Change key] two times, and then press
[Lock key] and hold for two seconds
3. The display now says “Basic settings”
4. Press [Forward key] until you reach the “Modbus RTU module” menu item
5. Press [Lock key]
6. You can now cycle through all the Modbus RTU settings by pressing [Forward key]
7. Press [Top key] for two seconds and you return to 1.
