ST950 Plus+ User Manual
Page 154 of 176
667/HE/53000/000

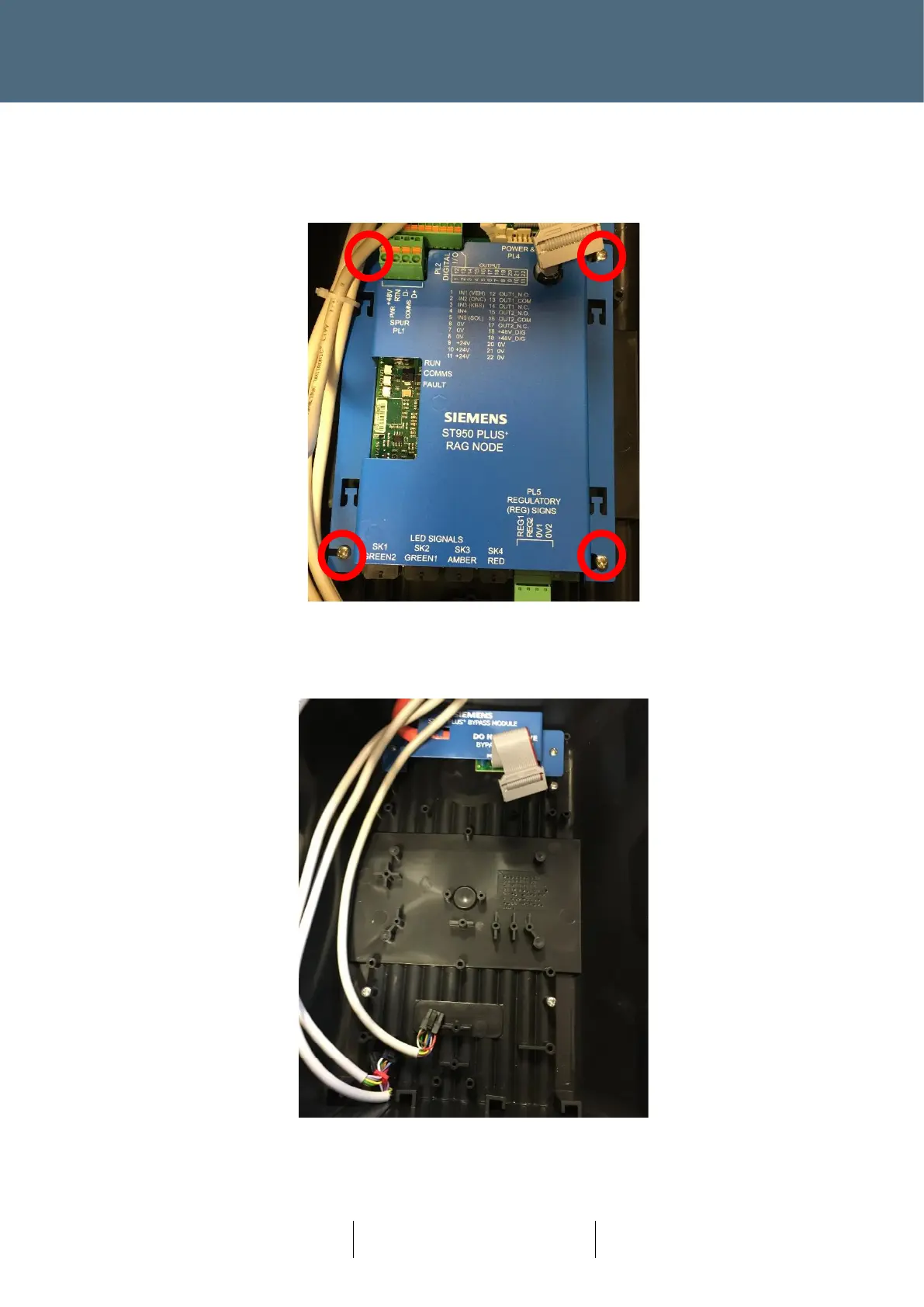

4. Loosen the four retaining screws.
5. Remove the board by sliding the node to the right and lift on the right side.
Figure 72 : Detail of RAG Node having been Removed
