Inputs 0-11
Common
Return for
Inputs
Outputs 0-3
Outputs 4-7
Outputs 12-15
Outputs 8-11
Common
Return for
Inputs
Inputs 12-23

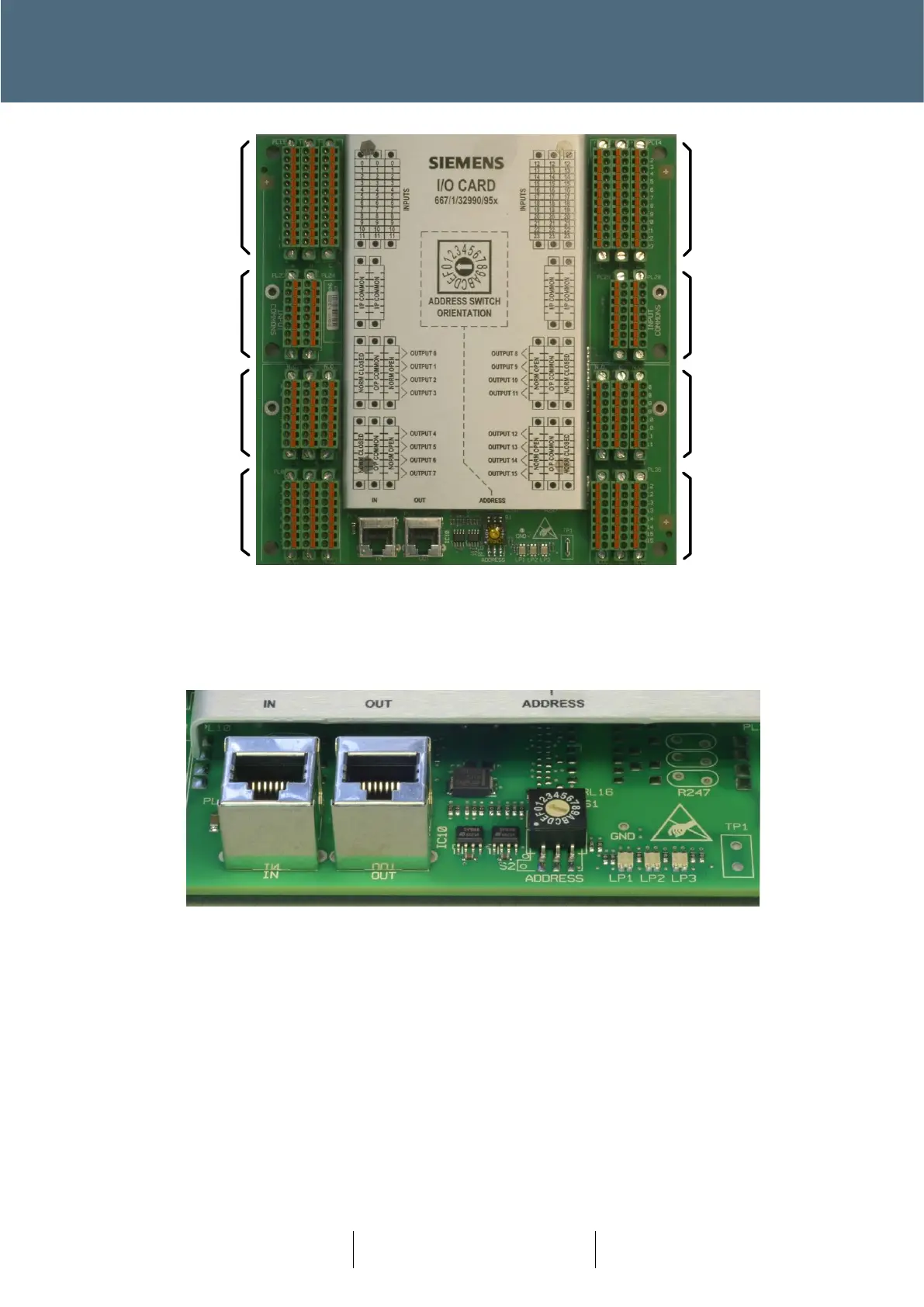

Figure 23 – I/O Card (Showing 16-output variant)
GSPI comms input
from Processor Card
or Previous IO card
GSPI comms
output to next
IO card
Address
switch
Status LEDs
Figure 24 – I/O Card Address Switch and LEDs
