4.1.2 Stub Pole
The stub pole does not use a PTB and instead the wiring arrangement (street cable downstream
and street cable upstream) is all held within the pole and the pedestrian demand equipment itself.

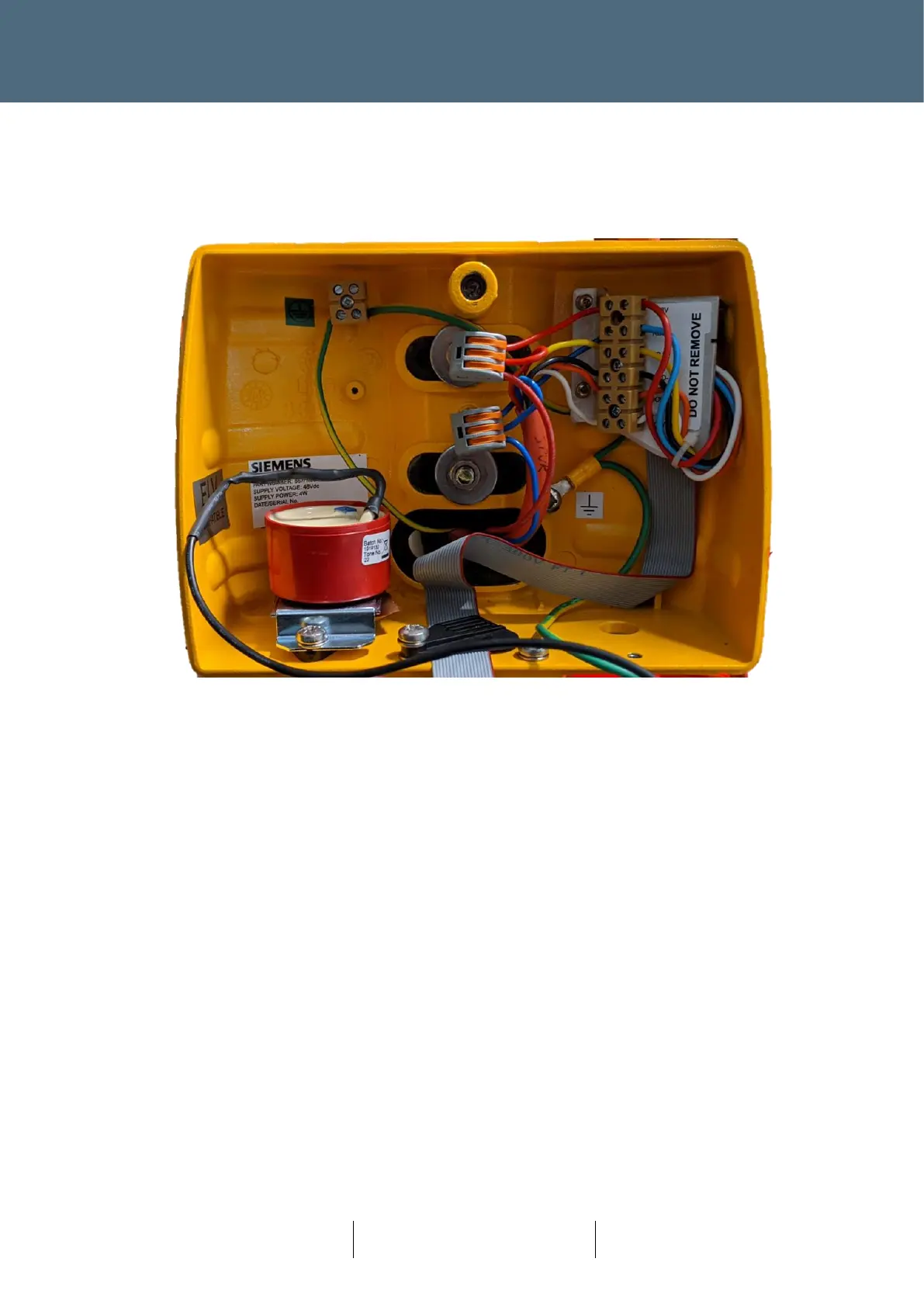

Figure 37 : Pedestrian Equipment: Showing Termination of Upstream and Downstream
Cable arrangements
4.1.3 Parts
Plus+ Top Cap Assembly - GRY 667/1/53735/300
Plus+ Top Cap Assembly - BLK 667/1/53735/301
