1.6.3 Nameplate layout SITRANS TF
TAG: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
DESCRIPTOR: XXXXXXXXXXXXXXXX
MESSAGE: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
SET RANGE: XXXXX ... XXXXX XXX
INPUT 1: POTENTIOMETER 3W
INPUT 2: POTENTIOMETER 3W
II 1 G Ex ia II C T6/T5/T4 Ga or
II 2 (1) G Ex ib [ia Ga] IIC T6/T5/T4 Gb
II 1 D Ex ia IIIC Da / I M1 Ex ia I Ma
II 3 G Ex ic IIC T6/T5/T4 Gc
II 3 D Ex ic IIIC Dc
0518
DEKRA 17ATEX0116 X
IECEx DEK 17.0054X
A5E43700604A-2018X
FMxxUSxxxx
FMxxCAxxxx
CSA xxxxxxx
II 1 G Ex ia II C T6/T5/T4 Ga or
II 1 G Ex ia II C T6/T5/T4 Ga or
II 1 G Ex ia II C T6/T5/T4 Ga or
II 2 (1) G Ex ib [ia Ga] IIC T6/T5/T4 Gb
II 1 D Ex ia IIIC Da / I M1 Ex ia I Ma
II 3 G Ex ic IIC T6/T5/T4 Gc
II 3 D Ex ic IIIC Dc
II 1 G Ex ia II C T6/T5/T4 Ga or
II 1 G Ex ia II C T6/T5/T4 Ga or
SITRANS TF320 HART SIL
TEMPERATURE TRANSMITTER
(S) N1J7002729
(1P) 7NG0320-0BA00-0AA0-Z
DEVICE NO: nn.nn.nn.
C11+C20+D10+D81+D90+P10+V01+W02+Y04
UB: DC 13.1...32V; lo: 4...20mA+HART IP66/68
Siemens AG
DE-76181 Karlsruhe
Made in France






① Manufacturer ⑤ Conformity with country-specific guidelines
② (S) Serial number ⑥ CE marking with ID number of the named
testing authority
(1P) Article number ⑦ Marking for hazardous area
DEVICE
NO
Device version ⑧ Place of manufacture
③ Observe the compact operating instruc‐
tions
⑨ Product name
④ QR code for mobile website with device-
specific information about the product

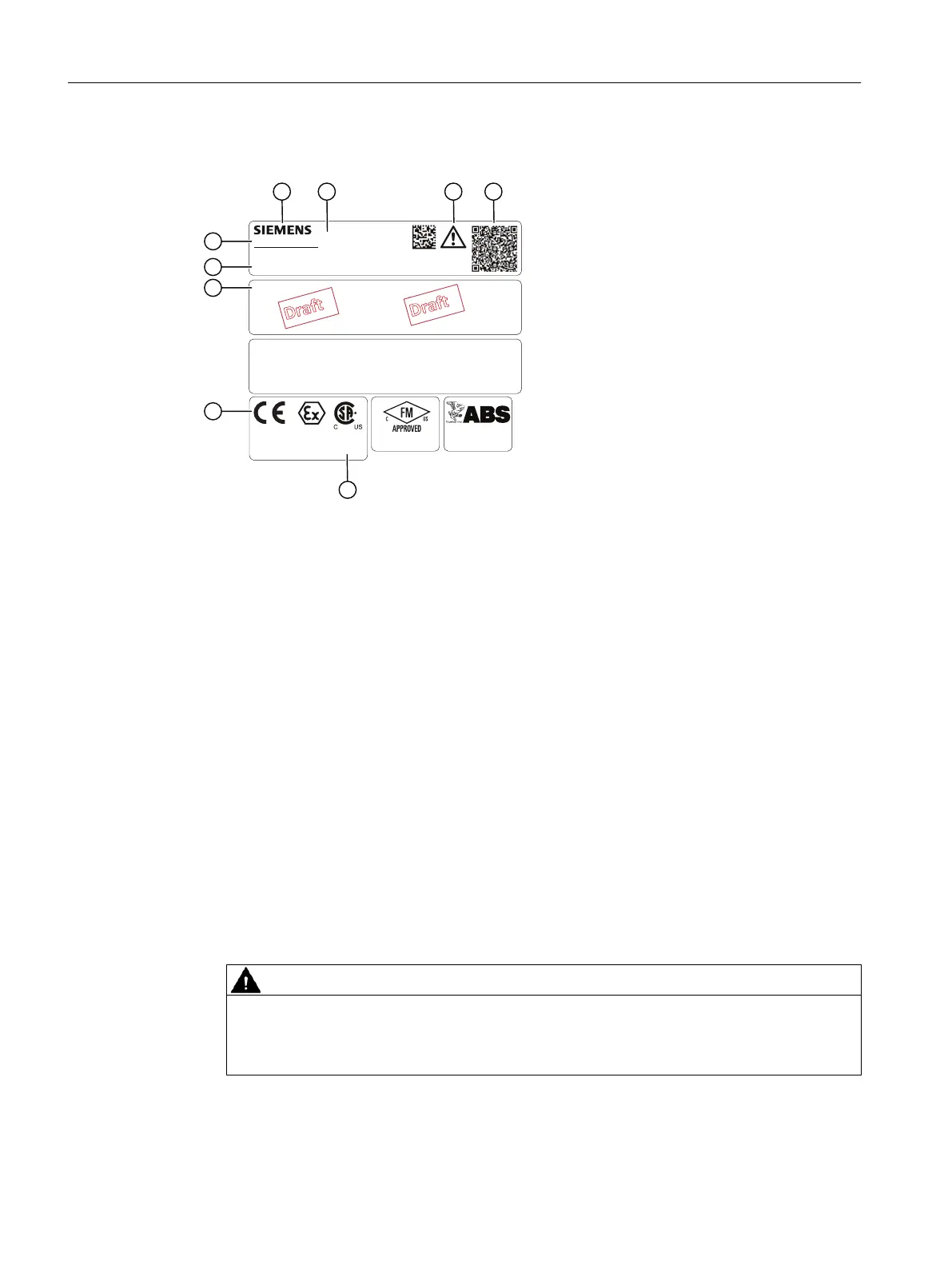

Figure 1-4 Example of nameplate for SITRANS TF single chamber housing
1.7 Checking the consignment
1. Check the packaging and the delivered items for visible damages.
2. Report any claims for damages immediately to the shipping company.
3. Retain damaged parts for clarification.
4. Check the scope of delivery by comparing your order to the shipping documents for
correctness and completeness.
WARNING
Using a damaged or incomplete device
Risk of explosion in hazardous areas.
● Do not use damaged or incomplete devices.
Introduction
1.7 Checking the consignment
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
12 Compact Operating Instructions, 03/2018, A5E41865021-AA
