4.7.2 Connecting the SITRANS TF320 single chamber housing
Procedure

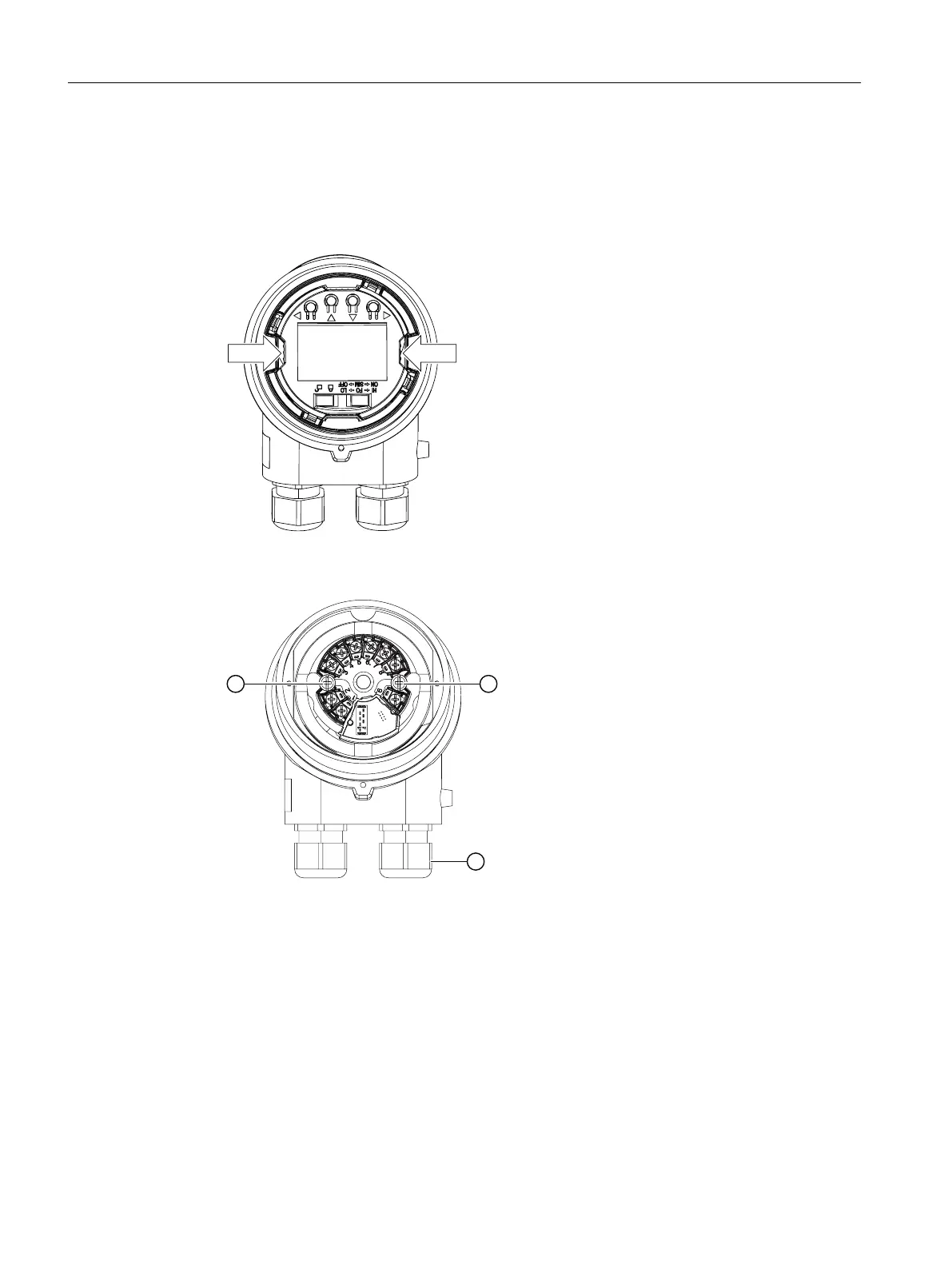

1. Remove the display from the holder.
2. Loosen the fastening screws of the temperature transmitter ① and remove it.
3. Lead the shielded connecting cables through the cable glands ②.
Connecting
4.7 Connecting the SITRANS TF single chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
46 Compact Operating Instructions, 03/2018, A5E41865021-AA
