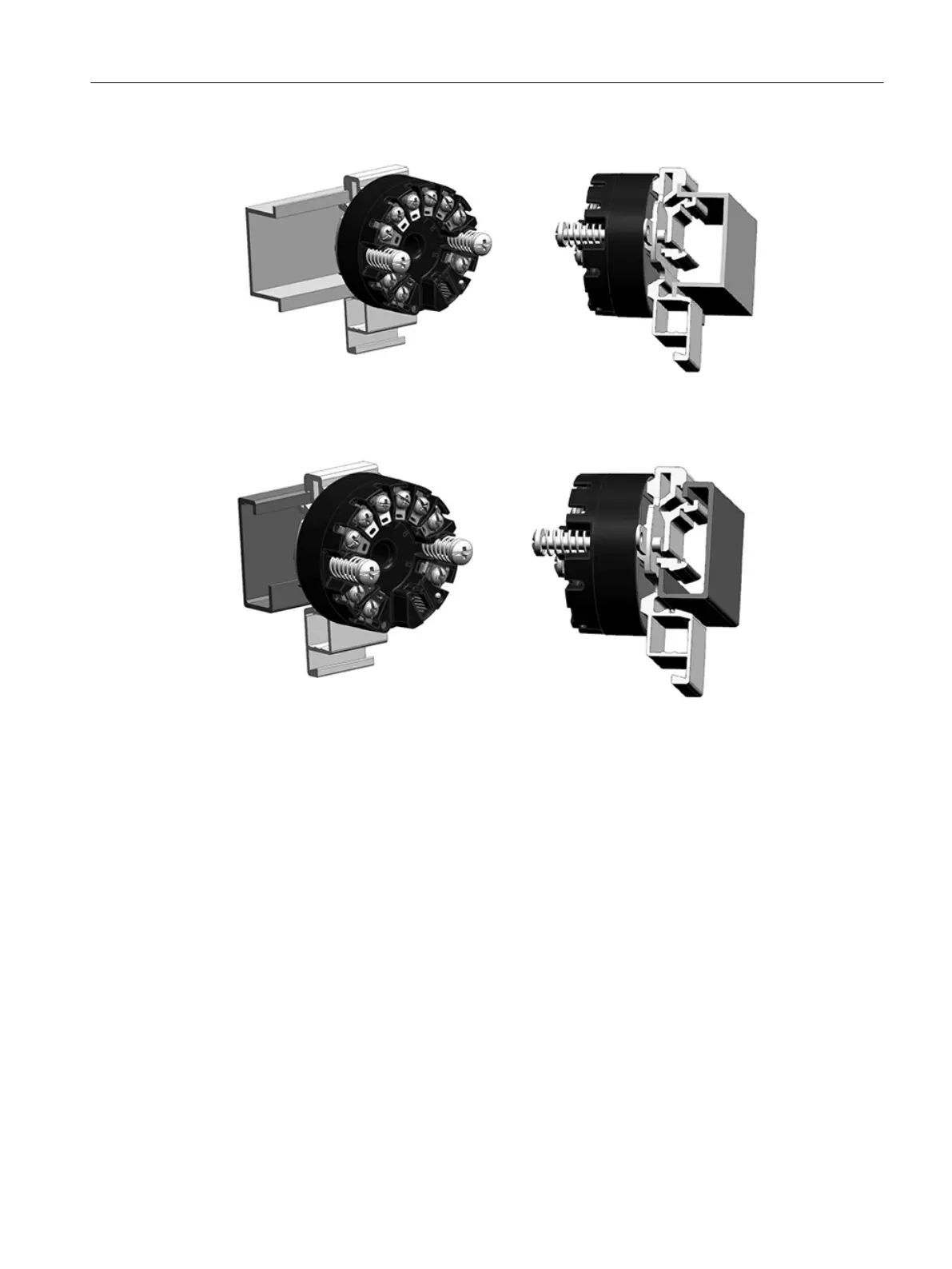

Figure 3-1 Securing the transmitter on DIN rails
Figure 3-2 Securing the transmitter on G rails
3.4 Installing SITRANS TR on DIN rail
The transmitter is secured to a 35 mm DIN rail in accordance with DIN EN 60715.
Comply with the ambient conditions specified in the technical data.
3.5 Mounting the SITRANS TF single chamber housing
Introduction
The mounting holes in the bracket ② and the device enclosure ① determine the permitted
mounting positions.
Installing/mounting
3.5 Mounting the SITRANS TF single chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
Compact Operating Instructions, 03/2018, A5E41865021-AA 25
