Procedure

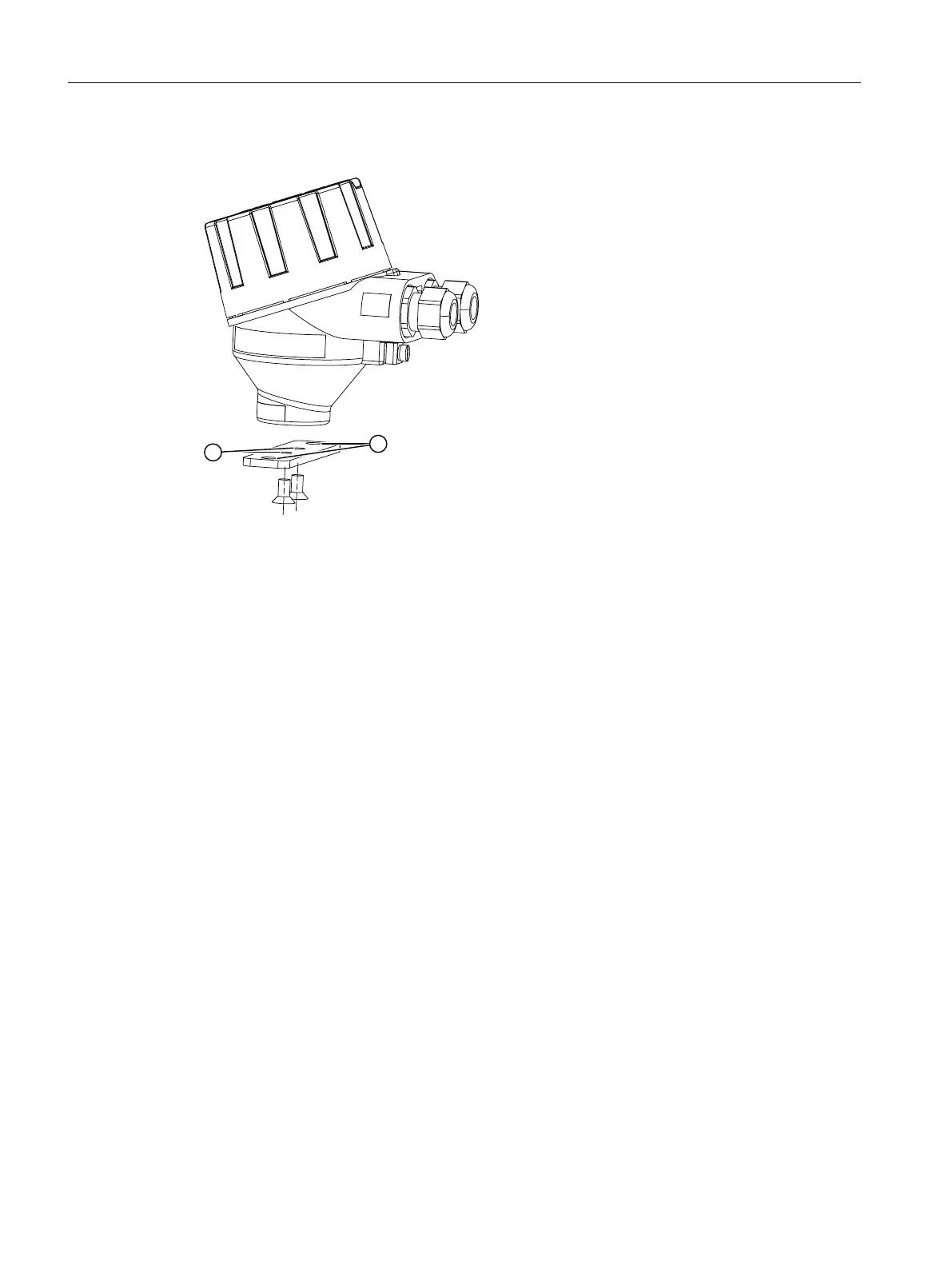

① Mounting holes for mounting to a pipe clamp or wall
② Mounting holes for fastening mounting plate on device
Figure 3-3 Mounting device to a pipe clamp or wall with rail
1. Use the fixing screws to fasten the bracket on the device.
2. Fasten the bracket to the pipe clamp or wall.
3.6 Mounting the SITRANS TF dual chamber housing
3.6.1 Mounting device to a pole with mounting bracket
Introduction
The mounting holes in the bracket ② and the device enclosure ① determine the permitted
mounting positions.
Installing/mounting
3.6 Mounting the SITRANS TF dual chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
26 Compact Operating Instructions, 03/2018, A5E41865021-AA
