Note

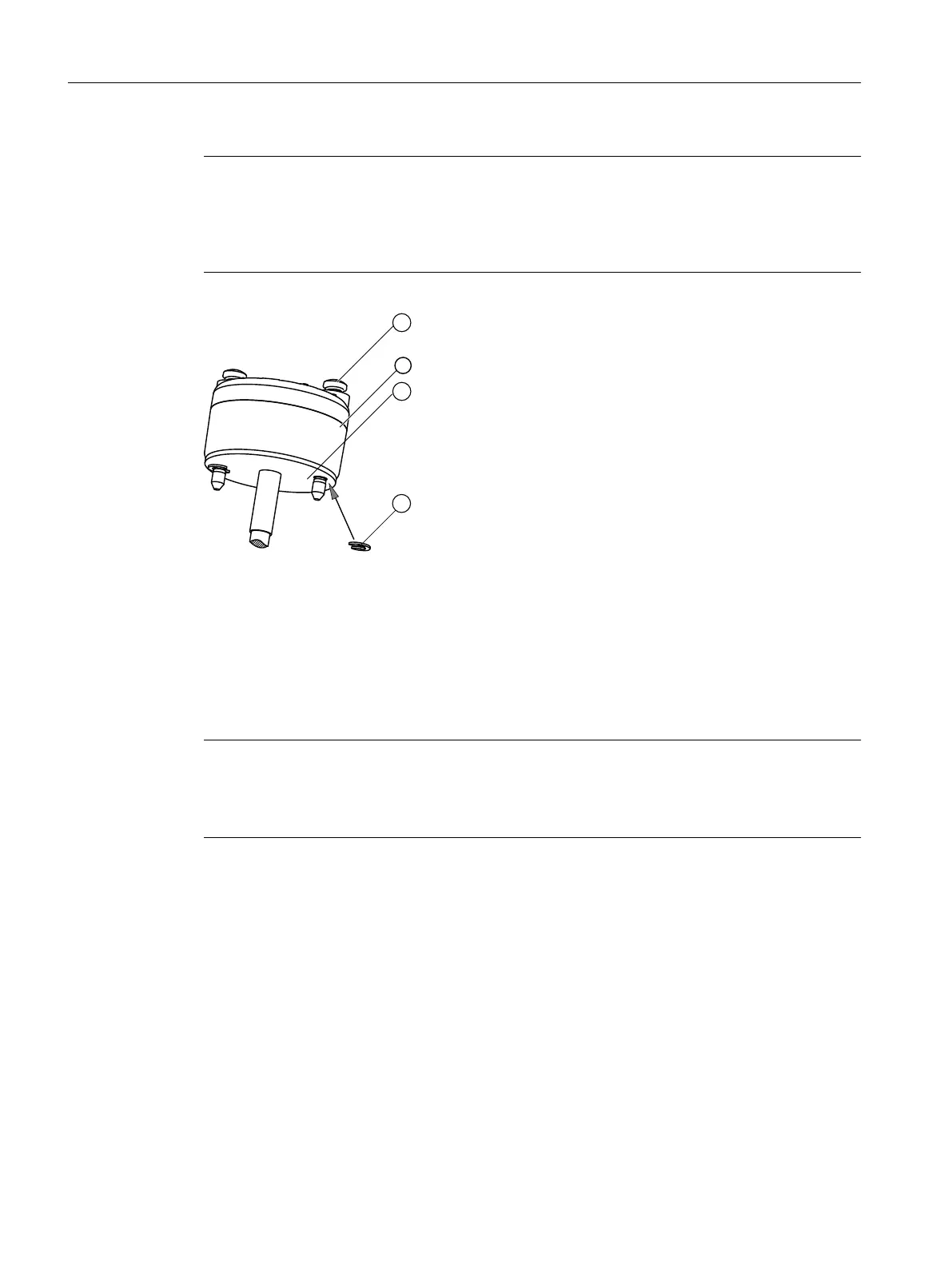

Using the lock washers (SITRANS TH)
The lock washers ④ included in the delivery are only required for securely fastening the
transmitter when the transmitter ② is directly installed on the round plate ③ of a temperature
probe.
① Fixing screw M4x35 ② Transmitter
③ Round plate ④ Lock washer DIN 6799 - 3.2 A2
3.3 Installing SITRANS TH on DIN rail and G rail
Note
Fixing rings
The fixing rings included in the scope of delivery for the transmitter are not required for the
installation on DIN rails or G rails.
You can either install the transmitter on a 35 mm DIN rail or on a 32 mm G rail. DIN EN 60715
applies to DIN rails and G rails in this context. The DIN/G rail adapter required for installation
can be ordered as an accessory under the Order No. 7NG3092-8KA.
Adhere to the ambient conditions specified in the technical data.
Installing/mounting
3.3 Installing SITRANS TH on DIN rail and G rail
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
24 Compact Operating Instructions, 03/2018, A5E41865021-AA
