Procedure

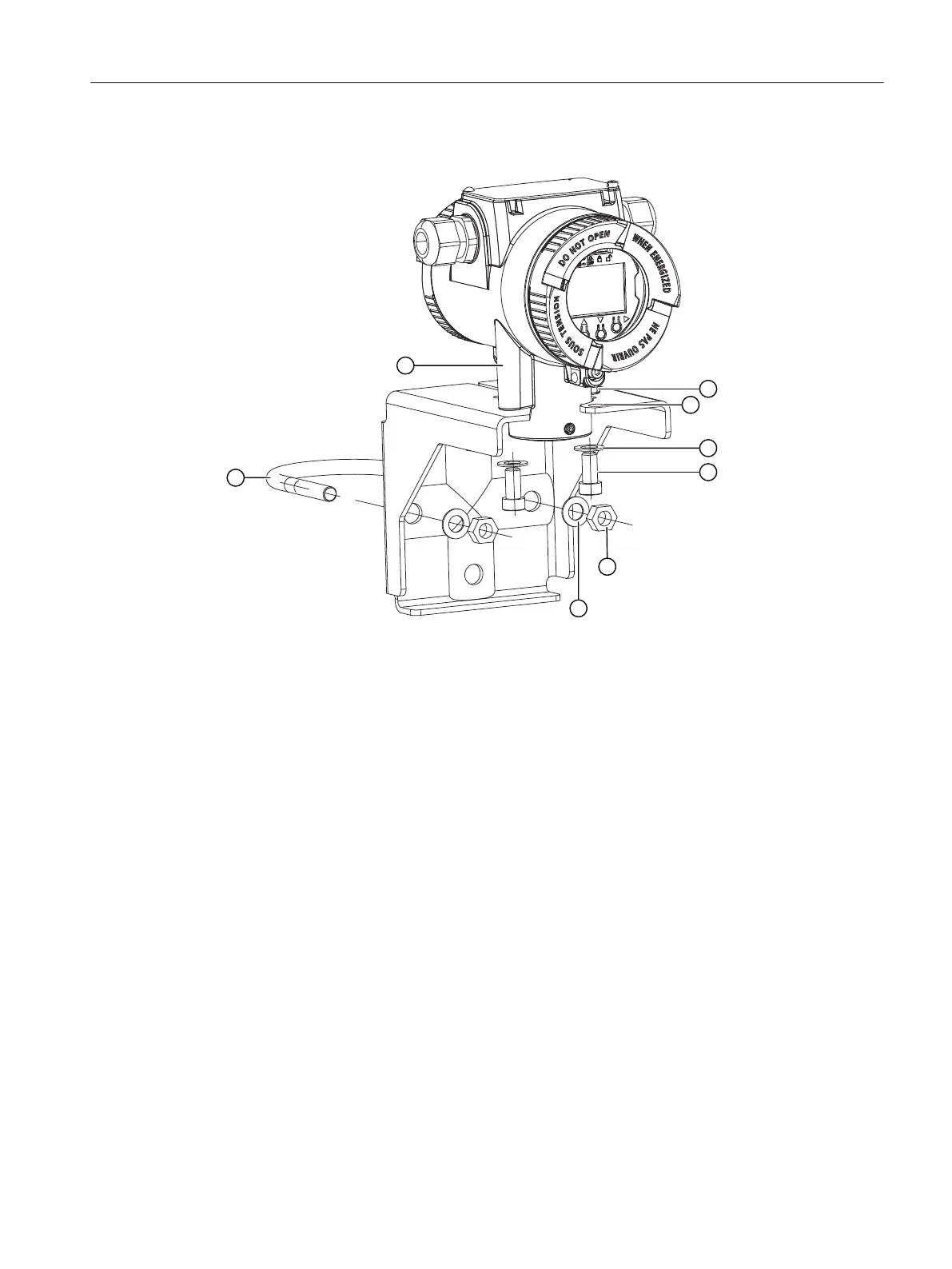

① Mounting holes on the enclosure ⑤ Nut M8
② Mounting holes in the mounting bracket (90° ro‐
tatable)
⑥ Washer DIN 125 - 8.4
③ Washer DIN 125 - 8.4 ⑦ Pole clamp for mounting to pole
④ Fixing screws M8 or 5/16 UNF thread
Figure 3-4 Mounting device to a pole with mounting bracket
1. Push the enclosure ① onto the mounting bracket ②.
2. Secure the enclosure ① with the fixing screws ④ and washers ③ onto the mounting
bracket.
3. Secure the mounting bracket with pole clamp ⑦, washers ⑥ and nuts ⑤ on the pole.
3.6.2 Mounting device to the wall with mounting bracket
Introduction
The mounting holes in the bracket ② and the device enclosure ① determine the permitted
mounting positions.
Installing/mounting
3.6 Mounting the SITRANS TF dual chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
Compact Operating Instructions, 03/2018, A5E41865021-AA 27
