4.7.4 Closing the device
Procedure
① Cover
② Safety catch
③ Cable gland

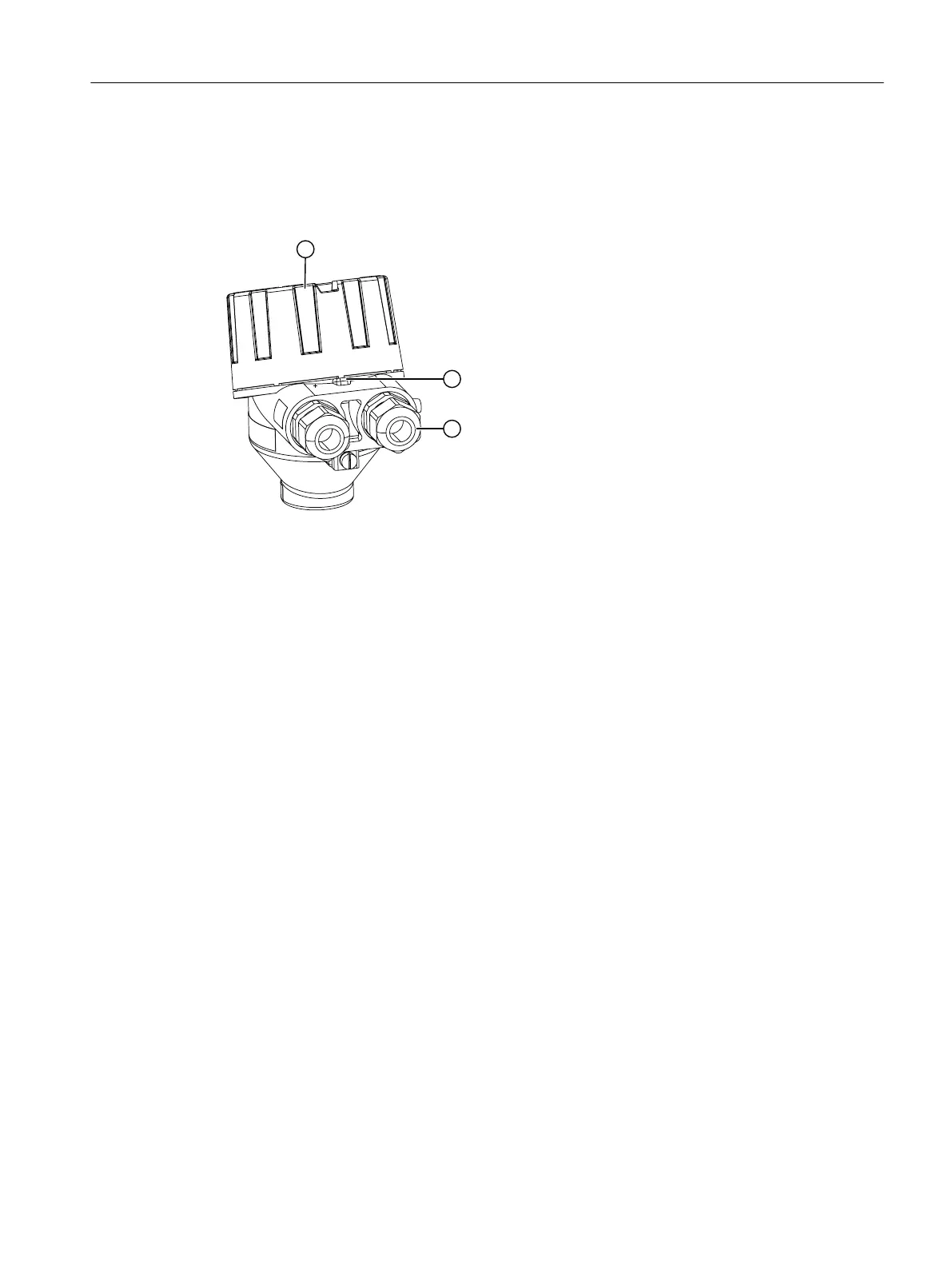

Figure 4-7 Closing device with single chamber housing
1. Screw the cover ① back on as far as it will go.
2. Use a 3 mm Allen key to secure the cover with the safety catch ②.
3. Check the tightness of the cable glands ③ in accordance with the degree of protection.
Connecting
4.7 Connecting the SITRANS TF single chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
Compact Operating Instructions, 03/2018, A5E41865021-AA 51
