4.7 Connecting the SITRANS TF single chamber housing
4.7.1 Opening the device
Procedure

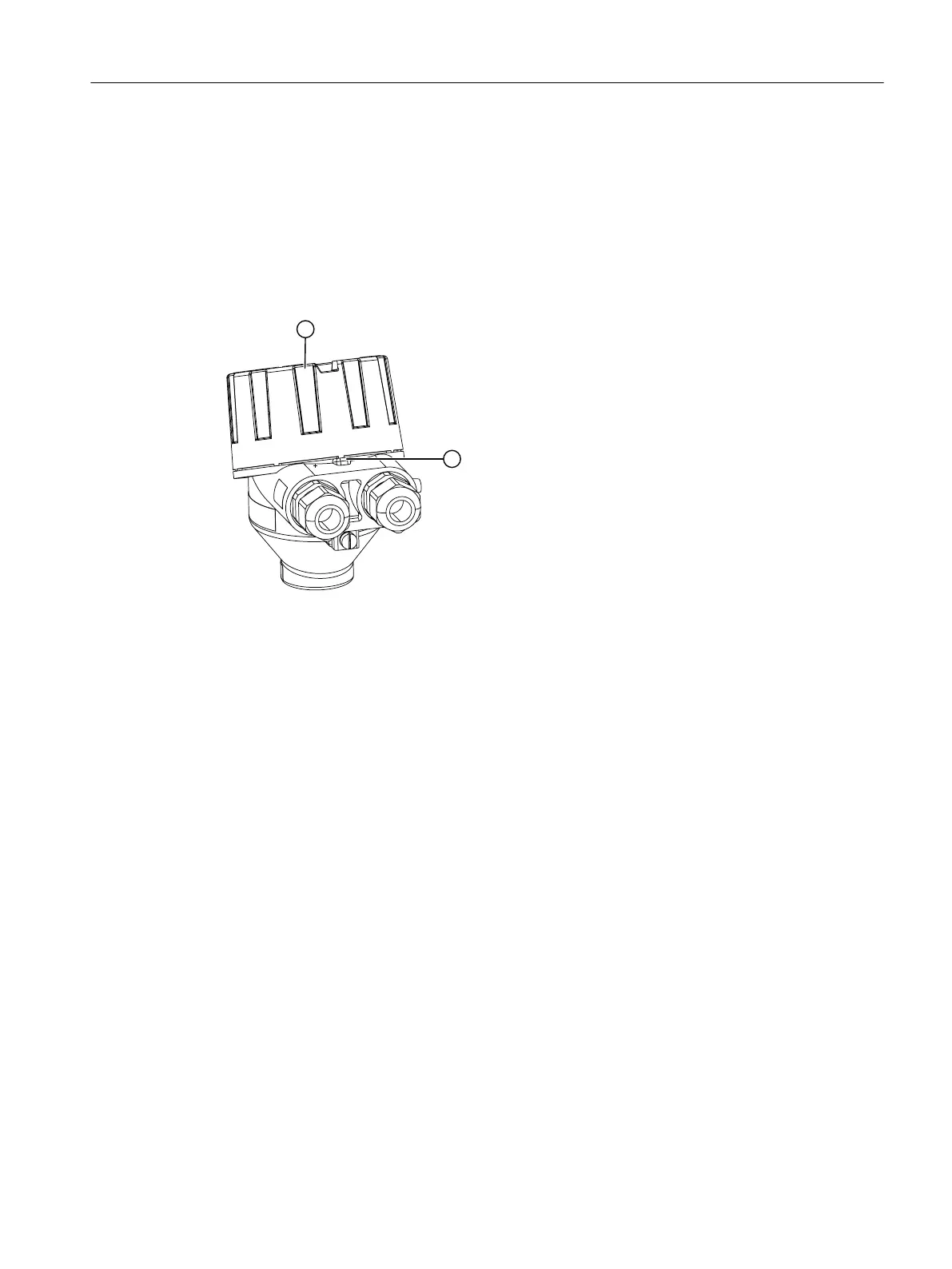

① Cover of the electrical cable compartment
② Safety catch
Figure 4-5 Opening device with single chamber housing
1. Use a 3 mm Allen key to loosen the safety catch ②.
2. Unscrew the cover of the electrical cable compartment ①.
Connecting
4.7 Connecting the SITRANS TF single chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
Compact Operating Instructions, 03/2018, A5E41865021-AA 45
