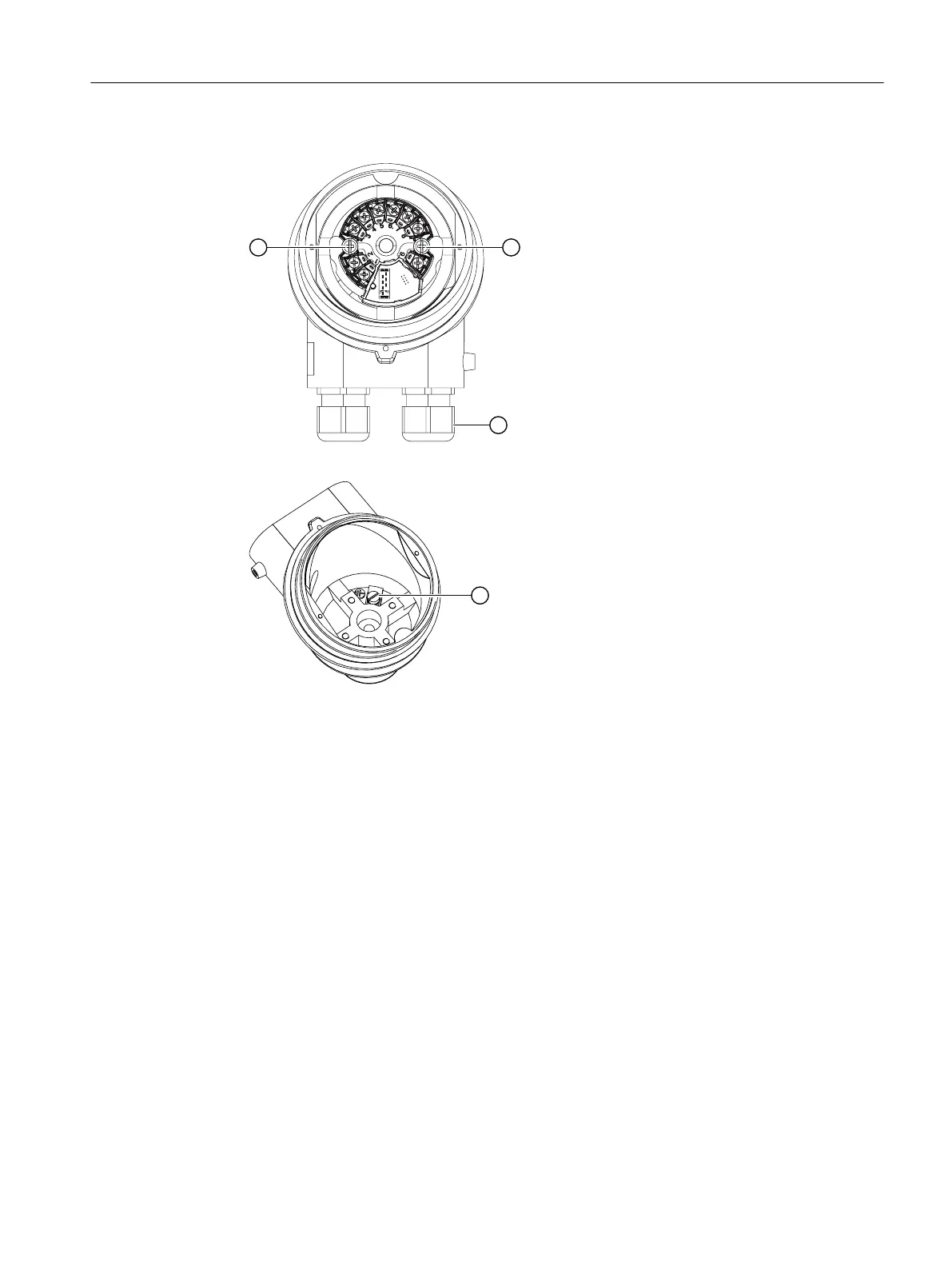

3. Lead the shielded connecting cables through the cable glands ②.
4. Connect the shield to the screw of the ground terminal ③.
The screw of the ground terminal is electrically connected to the external protective
conductor connection.
5. Insert the temperature transmitter and screw it in.
Connecting
4.7 Connecting the SITRANS TF single chamber housing
SITRANS TH320/TH420/TR320/TR420/TF320/TF420
Compact Operating Instructions, 03/2018, A5E41865021-AA 49
