WL Circuit Breaker selection and application guide
Characteristics table

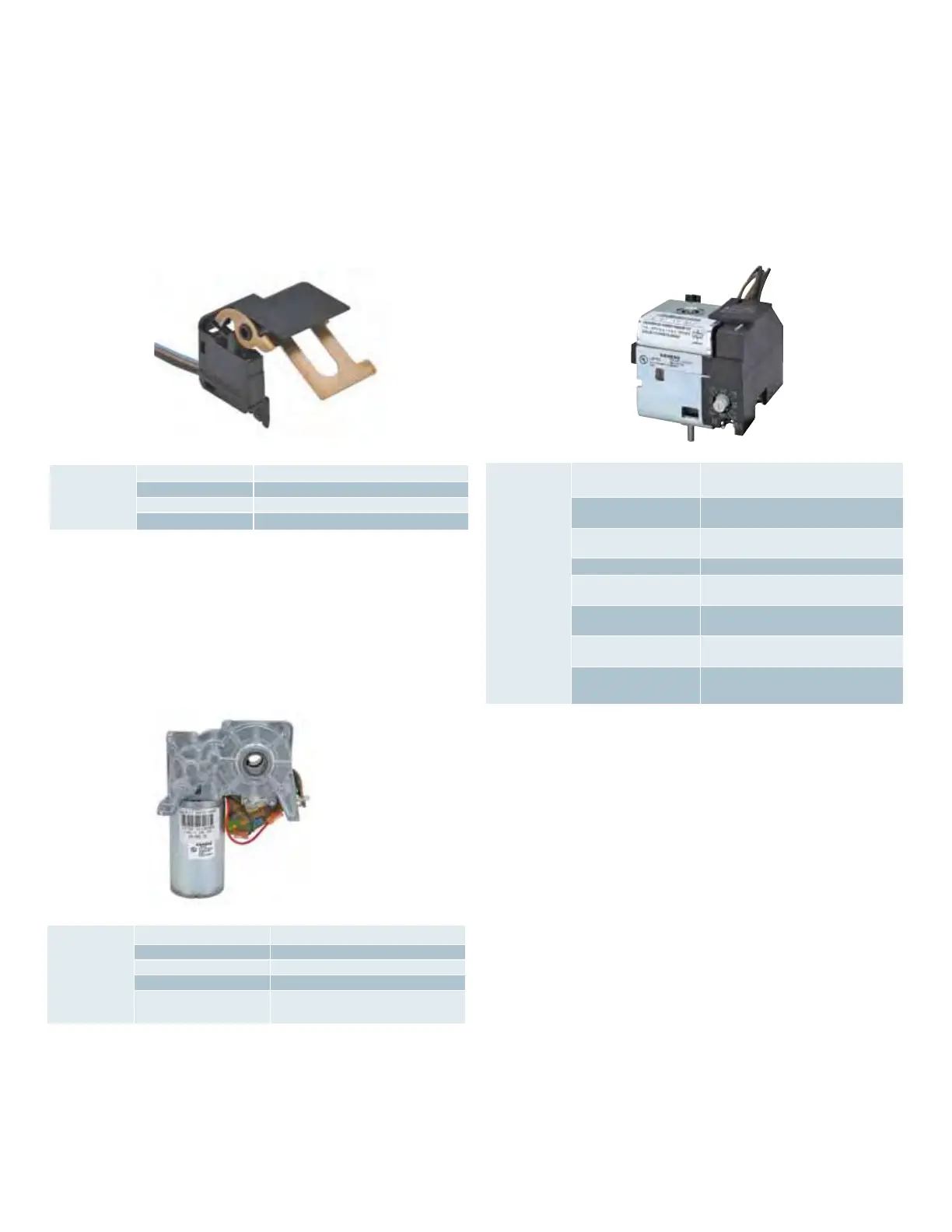

Spring-charging motor
The spring charging motor is used to automatically charge the
breakers closing spring so the breaker is suitable for closing on
command. Motor charging is typically used for remote breaker
operation or as an alternative to local manual charging. The
motor assembly can be easily installed in the field and includes
an automatic cut-off switch which disconnects the current upon
full charge of the closing spring mechanism.
Characteristics table
Spring- 120 - 240VAC range 85 -110% of nominal
charging 24 - 240VDC range 70 - 126% of nominal
motor Power consumption 110W
Max. charging time 10 seconds
Fuse protection rating 24-60V 6A, 120-240V 3A
(slow-blow)
Signaling Voltage 127 - 240VAX, 24 - 125VDC
contact Continuous current 3A
Making current 1A @24 - 125DVC, 5A @120 - 240VAC
Breaking current 1A @24 - 125DVC, 3A @120 - 240VAC
Characteristics table
Undervoltage Operating values 85 - 110% breaker can be closed,
release UVR 35 - 70% breaker will open
120 - 240VAC
Coil tolerance 85 - 110% of nominal
24 - 250VDC
Coil tolerance 85 - 126% of nominal
Supply voltage 120, 240VAC or 24, 48, 125, 250VDC
Power consumption 200VA inrush/ 5VA continuous
(same in Watts for DC)
Opening time
of breaker 200 ms
UVR w/o time delay
(dual setting) 80 ms or 200ms
UVR with time delay
(adjustable) for reset) 0.2 to 3.2 sec. (<101 ms
Undervoltage release
In the event of loss or low level control circuit voltage, an
undervoltage release may be used to automatically open
the circuit breaker. To prevent nuisance breaker openings
from temporary voltage dips, a separate adjustable time-
delay undervoltage release is also available.
Status contact
A status contact is a mechanical switch that is suitable for
monitoring an undervoltage trip or shut trip coil position.
The signal may be wired to the secondary contacts of the
breaker for customer connections or wired to the Breaker
Status Sensor (BSS) if communications is installed on the
breaker. Contact is 1NO configured.
