WL Circuit Breaker selection and application guide
Low Voltage Circuit Breaker
Accessories

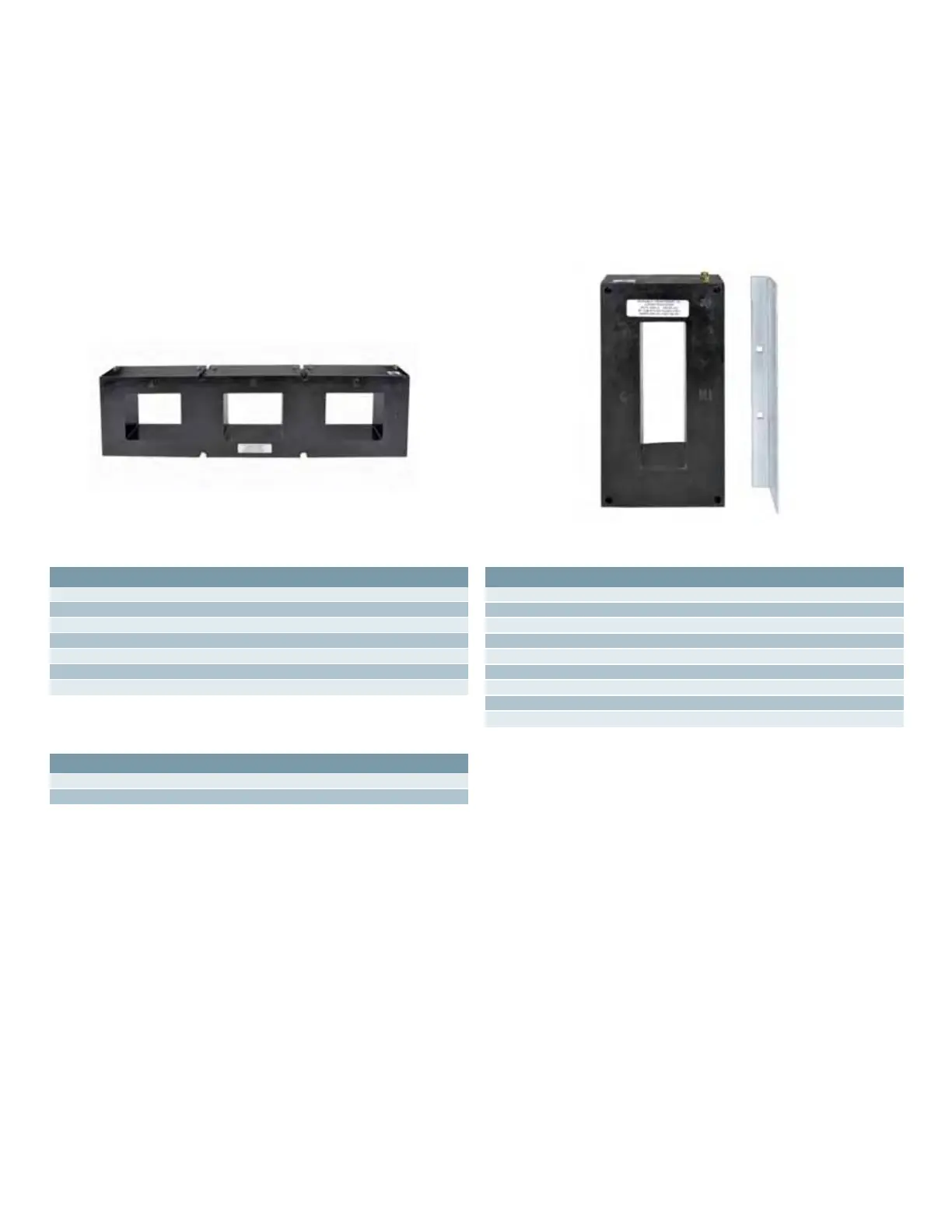

Metering current transformer 3-phase window
(cradle mounting only)
For draw-out breaker applications a three phase metering CT
is available. A single piece housing that is compact and designed
to fit top or bottom feed sensing inside the cradle compartment.
Termination screws are integral to the mold for point-to-point
wiring without the use of terminal blocks or wire couplers.
Metering ratios range from 800:5 to 5000:5. CTs sold seperately
and includes mounting hardware. Comparable Neutral metering
CT is also available.
For frame size 3 order part numbers:
3200:5 Rating WLG3200MCT3
5000:5 Rating WLG5000NMCT
Metering current transformer – neutral phase
A single piece housing that is compact and designed to fit around
neutral bussing. Termination screws are integral to the mold for
point-to-point wiring without the use of terminal blocks or wire
couplers. Metering ratios range from 800:5 to 5000:5.
For frame size 1 and 2 order part numbers:
800:5 Rating WLG800MCT2
1200:5 Rating WLG1200MCT2
1600:5 Rating WLG1600MCT2
2000:5 Rating WLG2000MCT2
2500:5 Rating WLG2500MCT2
3000:5 Rating WLG3000MCT2
3200:5 Rating WLG3200MCT2
For frame size 1, 2 or 3, order part numbers:
800:5 Rating WLG800NMCT23
1200:5 Rating WLG1200NMCT23
1600:5 Rating WLG1600NMCT23
2000:5 Rating WLG2000NMCT23
2500:5 Rating WLG2500NMCT23
3000:5 Rating WLG3000NMCT23
3200:5 Rating WLG3200NMCT23
4000:5 Rating WLG4000NMCT23
5000:5 Rating WLG5000NMCT23
