WL Circuit Breaker selection and application guide
Frame size 1, 1200A max, 65kA max. order part number WLS2P12CONUL
Frame size 2, 1600 to 2000A max, 65kA max. order part number
WLS2P20CONUL
Low Voltage Circuit Breaker
Accessories
Primary lug connector kits are available for connecting 800 to
2000A WL front connector bus kits to power cables.
Fixed mounted breaker rear bus connector kits are available
for adapting WL breaker primary mounting stabs to a standard
NEMA bussing and bolt-hole pattern. Adapters also rotate the
primary breaker connections by 90° for vertical bus arrangement.
Bolted connections are accessible from the rear of the breaker.
Kit includes the required bus and hardware for mounting one
3-pole set of adapters to a breaker.
Pre-assembled CubicleBUS communication cables
(RJ45-M connections)
1 meter length: order part number WLCBUSCABLE1
2 meter length: order part number WLCBUSCABLE2
4 meter length: order part number WLCBUSCABLE4
9 meter length: order part number WLCBUSCABLE9
Fixed-mounted breaker front bus connectors
Front connector bus kits are available for adapting WL breaker
primary mounting stabs to a standard NEMA bussing and bolt-
hole pattern. NEMA bolt connection is accessible from the front
of the breaker for ease of installation or removal of breaker inside
an enclosure. Kit includes the required bus and hardware for
mounting one 3-pole set of adapters to a breaker.
Frame size 1, 1200A max, 85kA max, order part number WLH1F12CONUL
Frame size 2, 1600A max, 100kA max, order part number WLL2F16CONUL
Frame size 2, 2000A max, 100kA max, order part number WLL2F20CONUL
Frame size 2, 2500A max, 100kA max, order part number WLL2F25CONUL
Frame size 2, 3000A max, 100kA max, order part number WLL2F30CONUL
Frame size 3, 4000 to 5000A max, 100kA max,
order part number WLL3F50CONUL

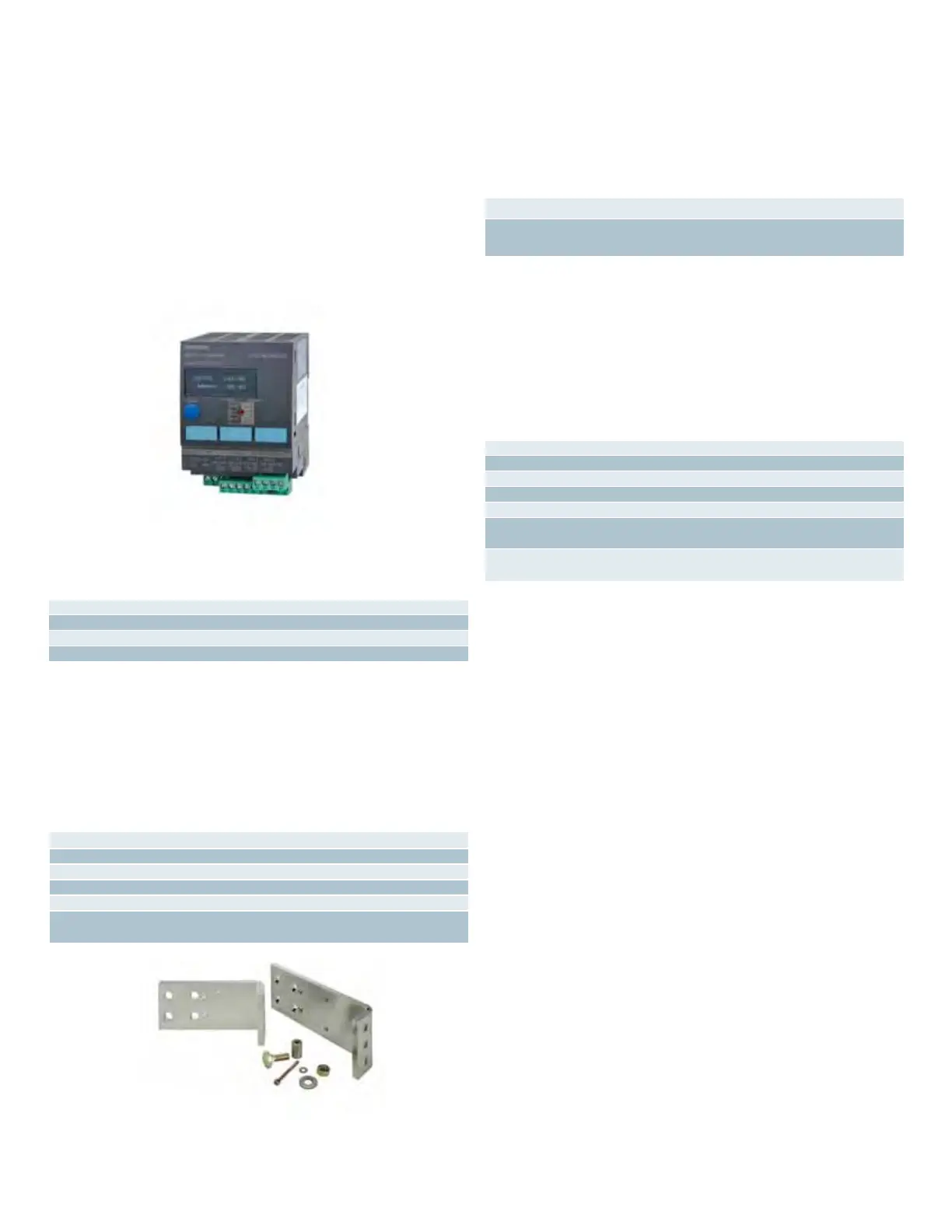

Analog output module
The analog output module can be used to output the most
important measured values sent via the CubicleBUS to analog
indicators (e.g. analog meters) in the switchgear cubicle door.
Each analog output module has four channels for this purpose.
The signals are available at two physical interfaces: a 4 ... 20mA
and a 0 ... 10V interface.
Analog output module: order part number WLANLGCUB
Frame size 1, 1200A max, 85kA max, order part number WLH1R12CONUL
Frame size 2, 1600A max, 100kA max, order part number WLL2R16CONUL
Frame size 2, 2000A max, 100kA max, order part number WLL2R20CONUL
Frame size 2, 2500A max, 100kA max , order part number WLL2R25CONUL
Frame size 2, 3000A max, 100kA max, order part number WLL2R25CONUL
Frame size 2, 1600 to 3000A max,
150kA max, order part number WLC2R30CONUL
Frame size 3, 4000 to 5000A max,
100kA max, order part number WLC3R50CONUL
