Appendix D. Mounting and transportation of
INFRA D10 Micro
Ensure that the battery is removed from the unit before mounting,
demounting or transporting it.
To properly mount the unit, follow the instructions below:

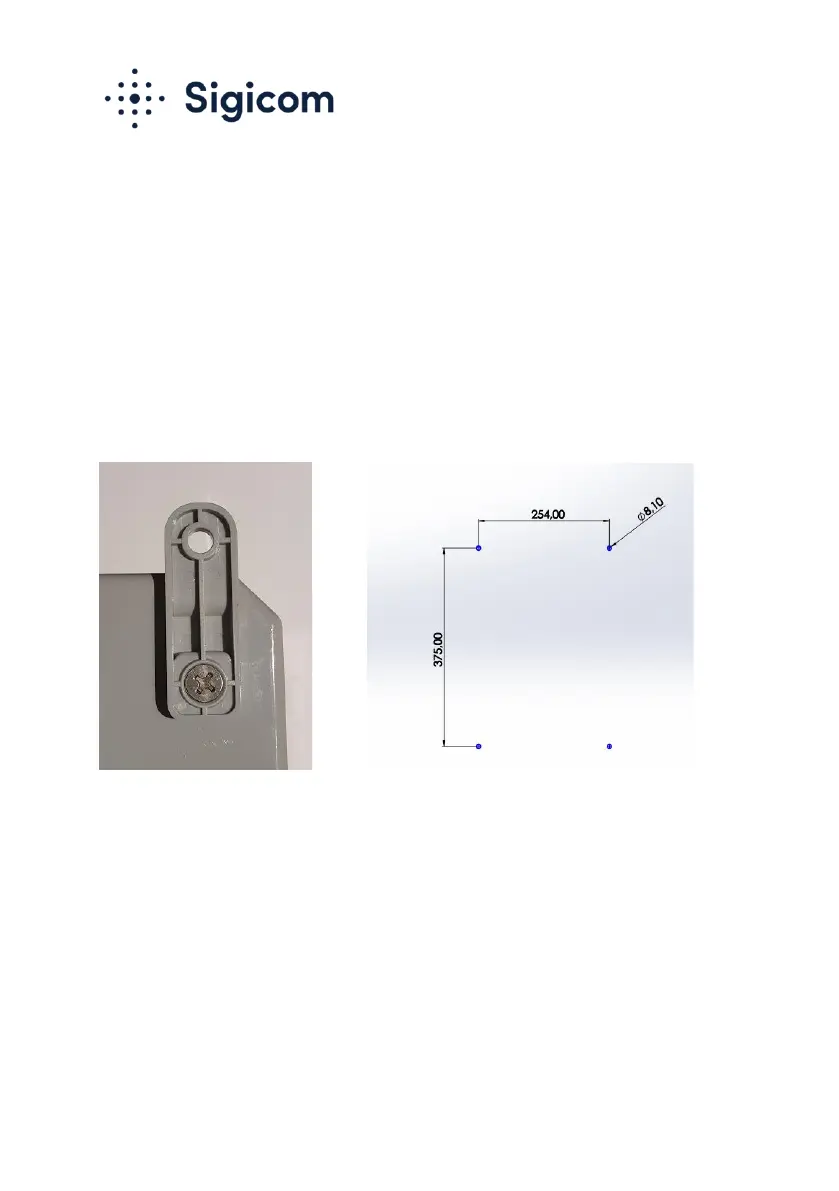

Mount the four wall-mounting brackets on the unit using the supplied
screws, see picture to the left below.
Use expansion plugs if needed, suitable for the wall material.
Make sure the mount holds for a minimum 80kg (180lbs).
Maximum diameter of the screws is 7.5mm (5/16”).
Drill on wall according to dimensions in the picture to the right above
(254mm * 375mm, 10.0” * 14.8”).
For easy installation it is recommend using expanding screws (or anchor
bolts) on the wall so that you can first hang the unit and then use washers
and nuts to secure it.
